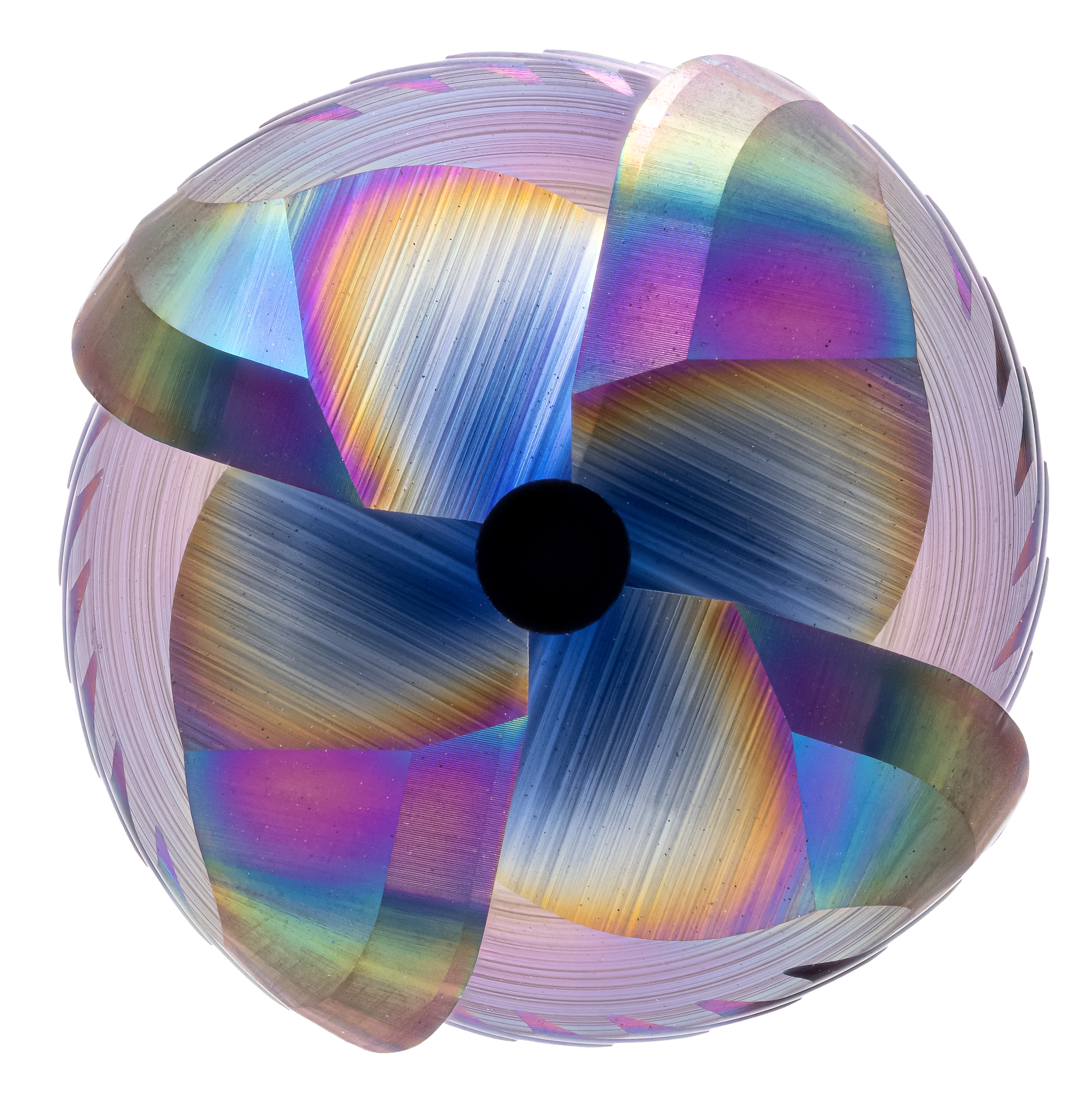

EXN1-M02-0213 | EXN1 Slotmaker Z4 2xD long IC ASR

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Coolant duct system Serrated edge 2xD Dynamic helical pitch Non-Center Cutting Corner radius
  • Special roughing profile combined with 4 teeth for the highest performance in volume machining
  • Special helical pitch for smooth running and soft cut
  • With central inner cooling
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical diving and immersion
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M02-0213
EXN1-M02-0213
EXN1-M02-0213
EXN1-M02-0213
EXN1-M02-0213

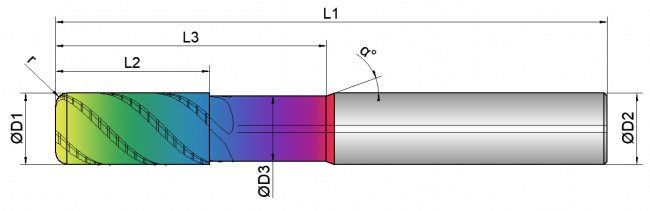

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
12/2 12.0 11.0 26.0 46.0 93.0 12.0 4 2.00 45 20 green

16/2 16.0 15.0 34.0 60.0 110.0 16.0 4 2.00 45 20 orange

16/3 16.0 15.0 34.0 60.0 110.0 16.0 4 3.00 45 20 green

20/2 20.0 19.0 42.0 72.0 125.0 20.0 4 2.00 45 20 orange

20/3 20.0 19.0 42.0 72.0 125.0 20.0 4 3.00 45 20 red

20/4 20.0 19.0 42.0 72.0 125.0 20.0 4 4.00 45 20 red
