EXN1-M03-0034 | EXN1 Chipmaker Z4 3xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Chip breaking 3xD Dynamic helical pitch Center Cutting Corner radius
  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running

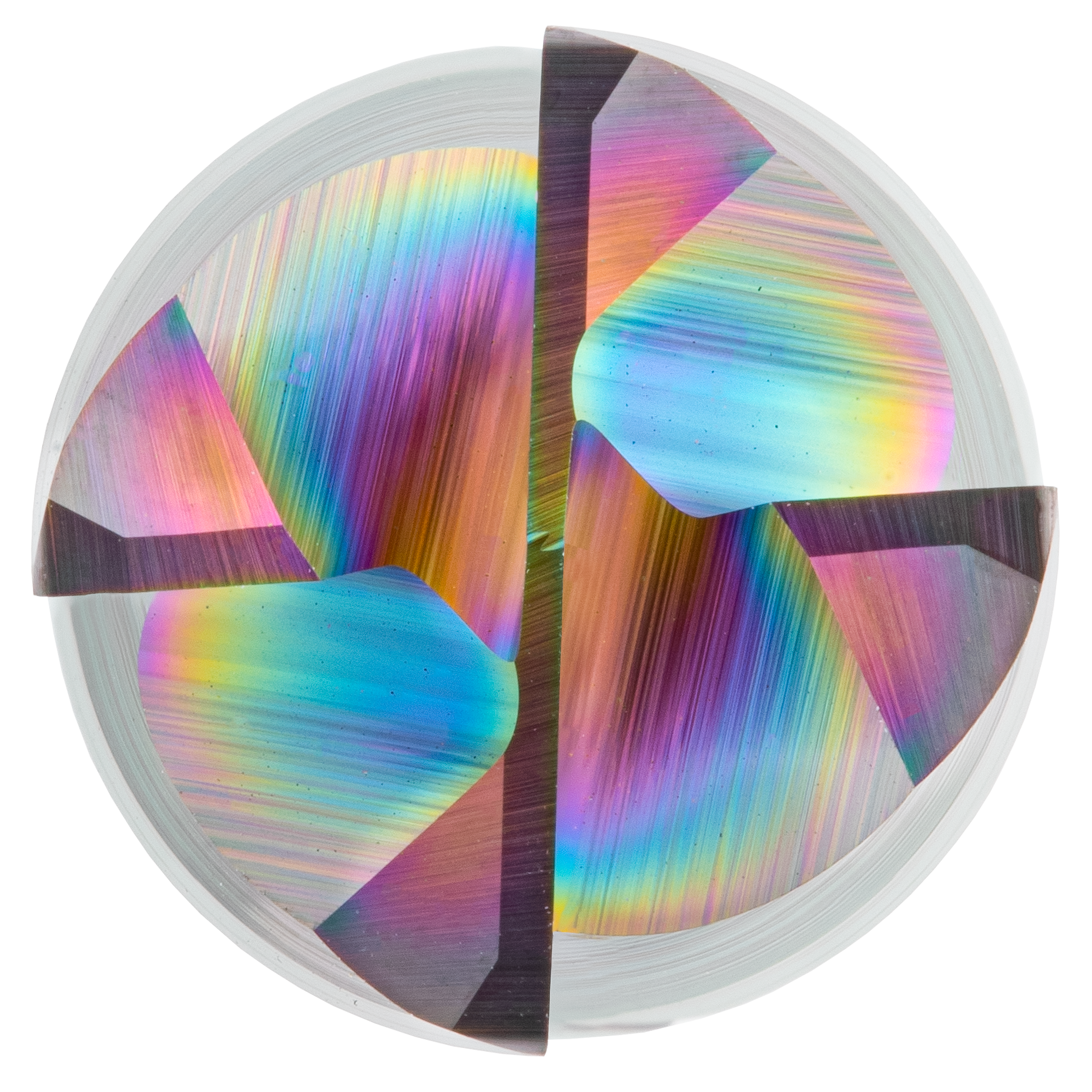

  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical diving and immersion
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M03-0034
EXN1-M03-0034
EXN1-M03-0034
EXN1-M03-0034
EXN1-M03-0034

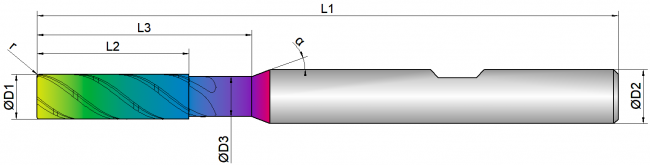

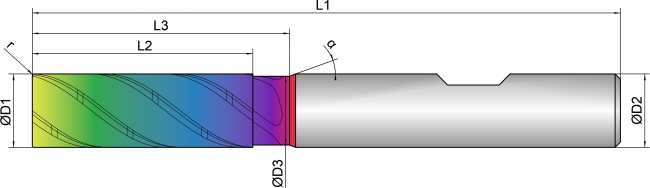

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
5 5.0 4.5 17.0 24.0 65.0 6.0 4 0.15 38 20 green

6 6.0 5.5 18.0 25.0 65.0 6.0 4 0.15 38 20 green

8 8.0 7.5 24.0 30.0 70.0 8.0 4 0.20 38 20 green

10 10.0 9.4 30.0 35.0 80.0 10.0 4 0.20 38 20 green

12 12.0 11.4 36.0 45.0 93.0 12.0 4 0.20 38 20 green

16 16.0 15.4 48.0 55.0 110.0 16.0 4 0.30 38 20 green

20 20.0 19.4 60.0 70.0 125.0 20.0 4 0.30 38 20 green
