EXN1-M03-0044 | EXN1 Chipmaker Z4 4xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Chip breaking 4xD Dynamic helical pitch Center Cutting
  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running

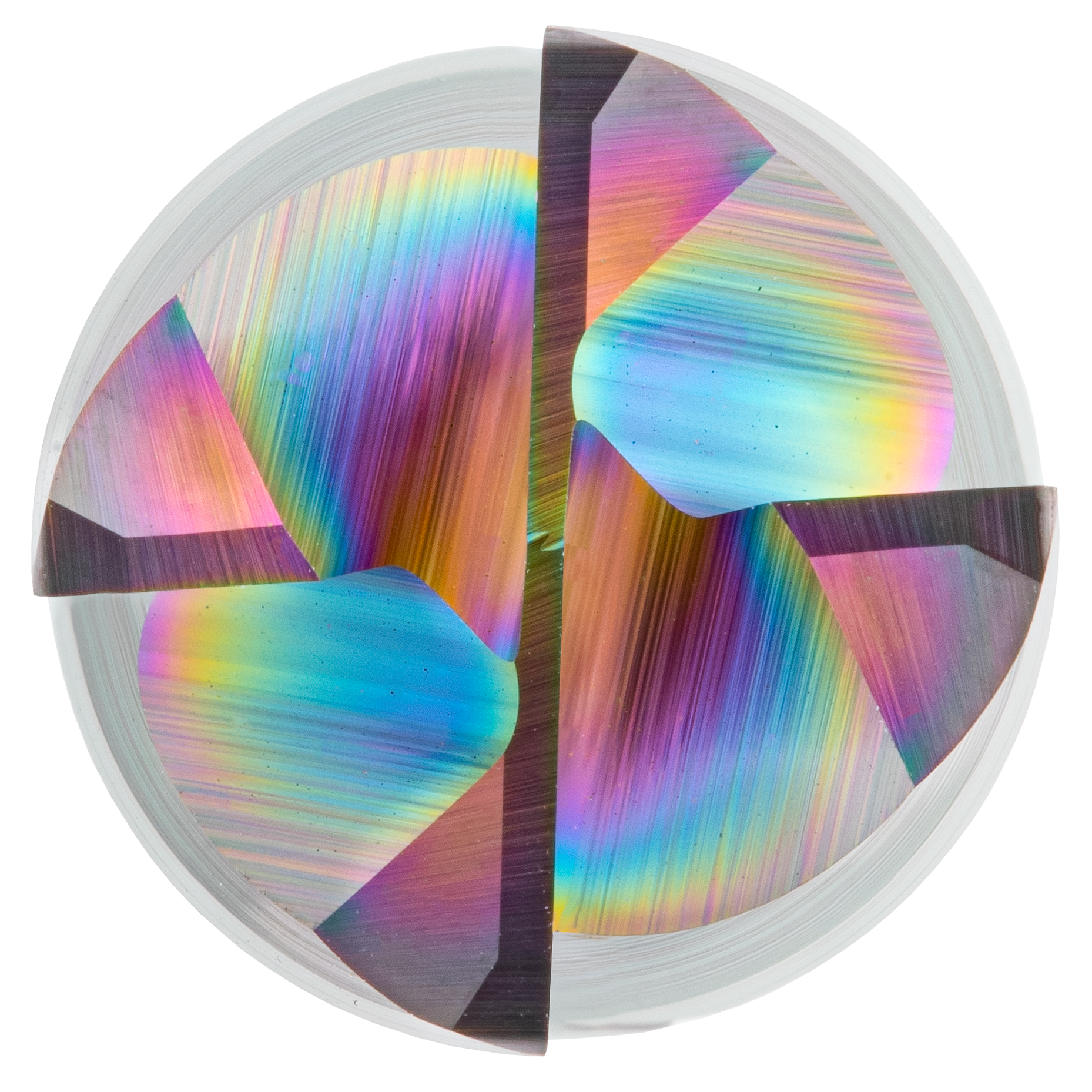

  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


EXN1-M03-0044
EXN1-M03-0044
EXN1-M03-0044
EXN1-M03-0044
EXN1-M03-0044

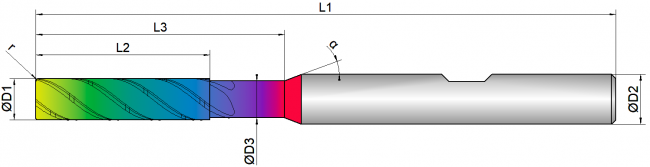

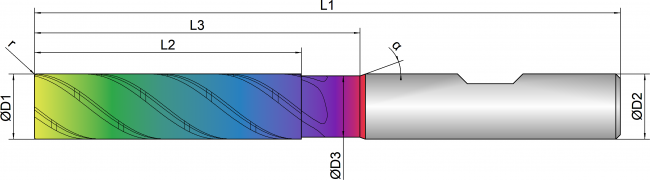

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
10 10.0 9.4 41.0 50.0 90.0 10.0 4 0.20 38 20 green
12 12.0 11.4 49.0 60.0 110.0 12.0 4 0.20 38 20 green
16 16.0 15.4 65.0 80.0 130.0 16.0 4 0.30 38 20 green
20 20.0 19.4 82.0 100.0 150.0 20.0 4 0.30 38 20 green
