EXN1-M03-0053 | EXN1 Chipmaker Z4 5xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features No Weldon Unequal tooth pitch Chip breaking 5xD Dynamic helical pitch Center Cutting
  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
Suitability for
Roughing Finishing

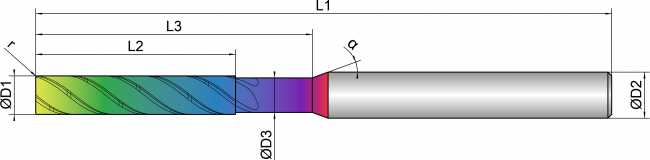

EXN1-M03-0053
EXN1-M03-0053
EXN1-M03-0053
EXN1-M03-0053
EXN1-M03-0053
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
5 5.0 4.5 26.0 36.0 75.0 6.0 4 0.15 38 20 orange
