EXN1-M03-0054 | EXN1 Chipmaker Z4 5xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Chip breaking 5xD Dynamic helical pitch Center Cutting Corner radius
  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running

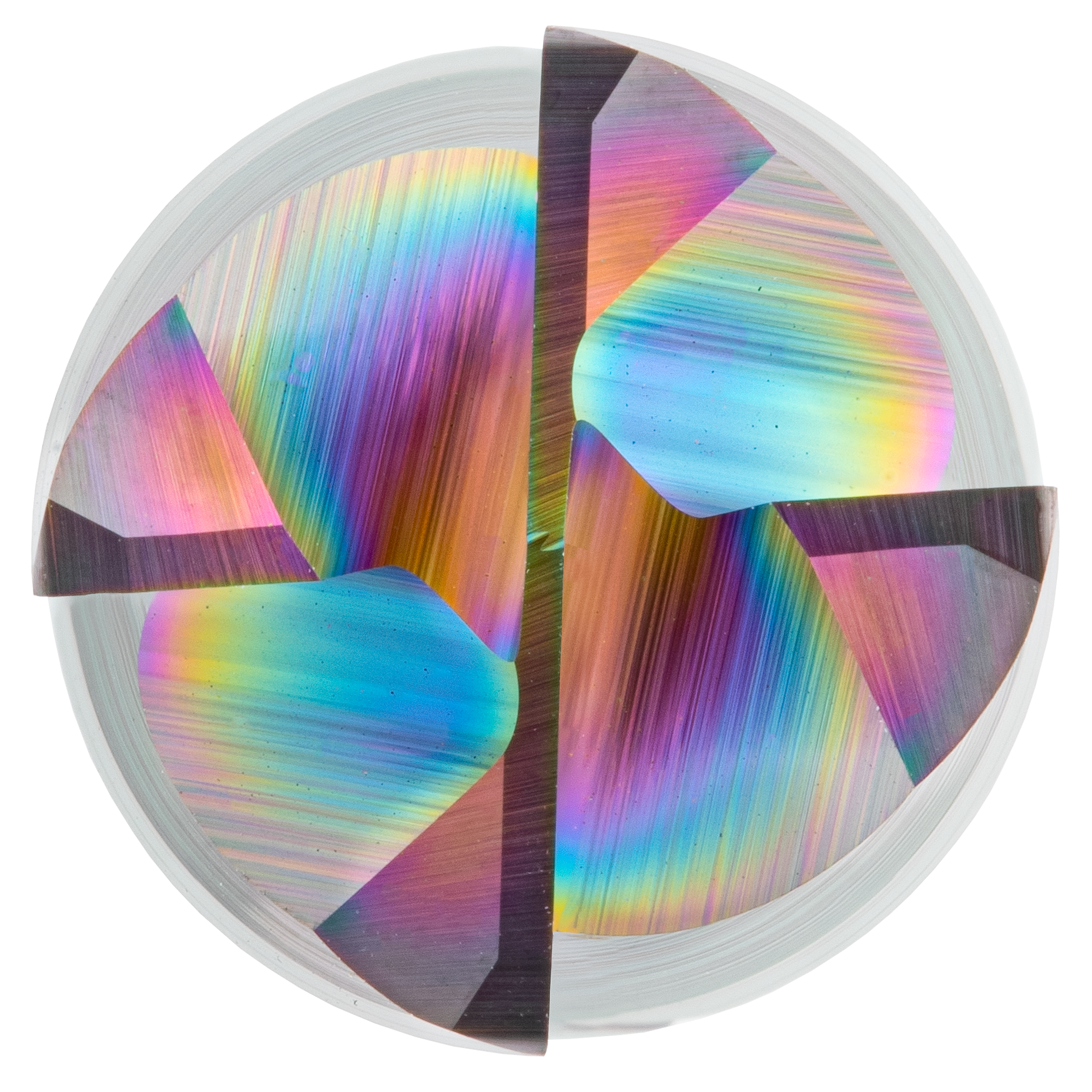

  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


EXN1-M03-0054
EXN1-M03-0054
EXN1-M03-0054
EXN1-M03-0054
EXN1-M03-0054

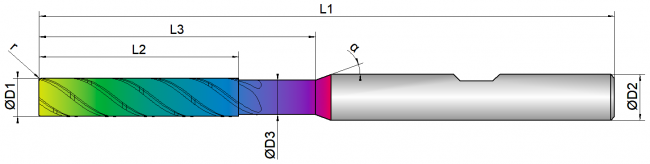

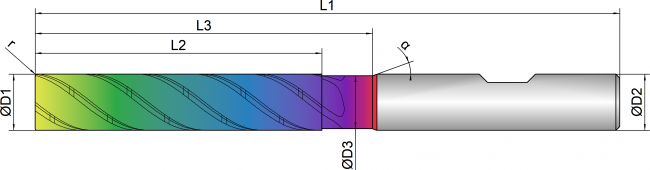

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
5 5.0 4.5 26.0 36.0 75.0 6.0 4 0.15 38 20 green

6 6.0 5.5 31.0 36.0 75.0 6.0 4 0.15 38 20 green

8 8.0 7.5 41.0 48.0 90.0 8.0 4 0.20 38 20 green

10 10.0 9.5 51.0 60.0 104.0 10.0 4 0.20 38 20 orange

12 12.0 11.0 61.0 72.0 120.0 12.0 4 0.20 38 20 orange

16 16.0 15.0 81.0 96.0 150.0 16.0 4 0.30 38 20 orange

20 20.0 19.0 102.0 120.0 175.0 20.0 4 0.30 38 20 orange
