EXN1-M04-0033 | EXN1 Mirrormaker Z6 3xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch 3xD Dynamic helical pitch Non-Center Cutting Sharp-edged
  • Ultra-sharp and lapped cutting edges
  • Special chip chambers designed for the evacuation of extra long and fine chips
  • Face-Finish-bevel for smooth workpiece surfaces
  • 6 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
Suitability for
Roughing Finishing

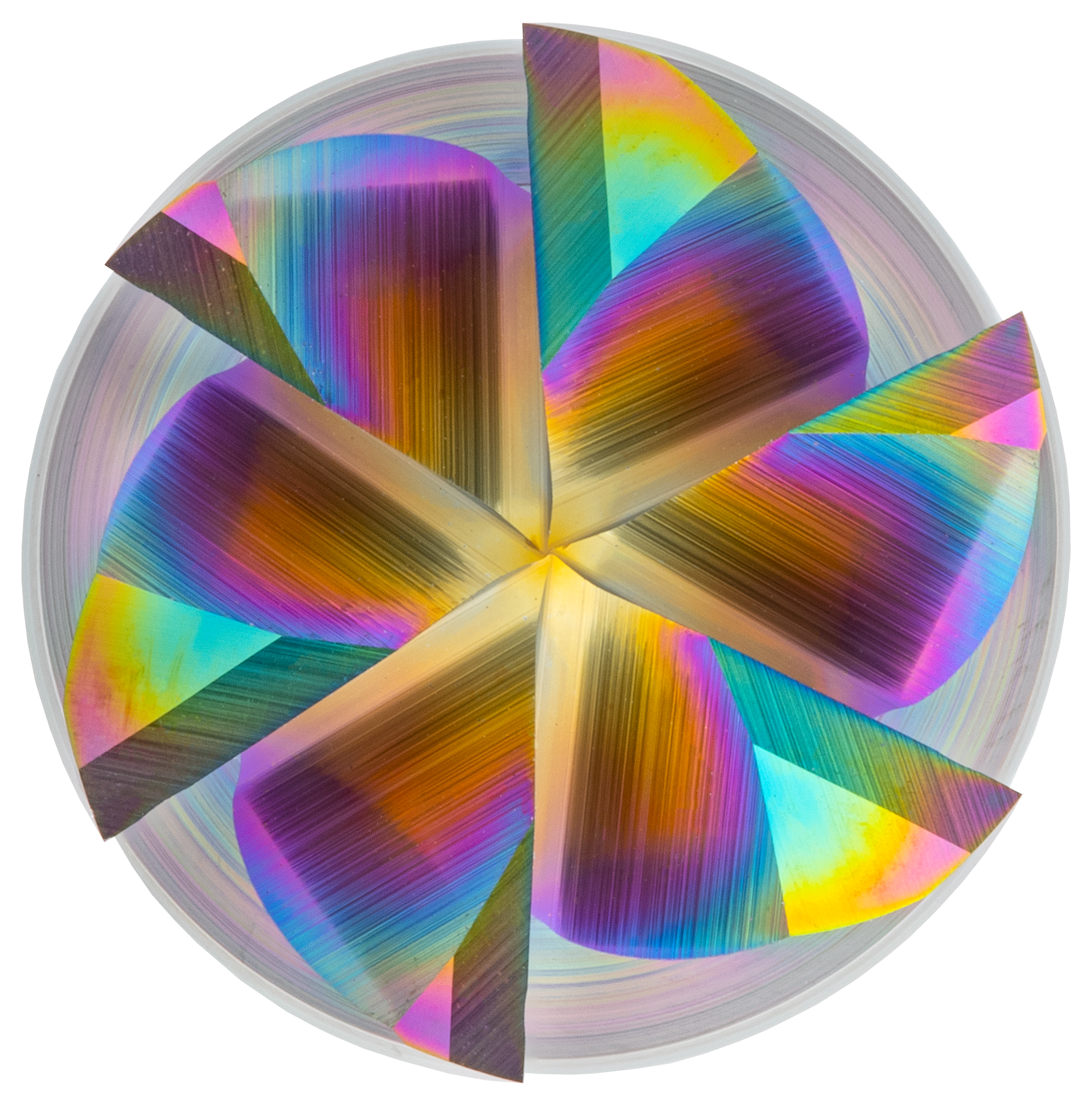

EXN1-M04-0033
EXN1-M04-0033
EXN1-M04-0033
EXN1-M04-0033
EXN1-M04-0033

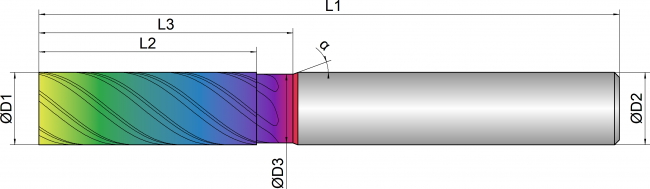

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
6 6.0 5.8 18.0 25.0 65.0 6.0 6 39 20 green

8 8.0 7.8 24.0 30.0 70.0 8.0 6 39 20 green

10 10.0 9.5 30.0 35.0 80.0 10.0 6 39 20 green

12 12.0 11.5 36.0 45.0 93.0 12.0 6 39 20 green

16 16.0 15.5 48.0 55.0 110.0 16.0 6 39 20 green

20 20.0 19.5 60.0 70.0 125.0 20.0 6 39 20 orange
