Expert

EXN1-M04-0043 | EXN1 Mirrormaker Z6 4xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch 4xD Dynamic helical pitch Non-Center Cutting Sharp-edged
  • Ultra-sharp and lapped cutting edges
  • Special chip chambers designed for the evacuation of extra long and fine chips
  • Face-Finish-bevel for smooth workpiece surfaces
  • 6 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M04-0043
EXN1-M04-0043
EXN1-M04-0043
EXN1-M04-0043
EXN1-M04-0043

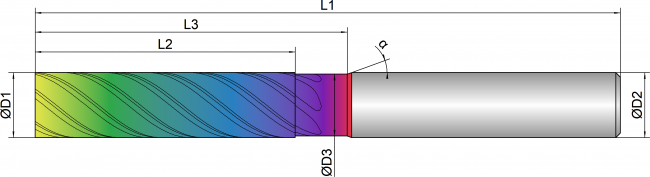

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
6 6.0 5.8 24.0 32.0 65.0 6.0 6 39 20 green

8 8.0 7.8 32.0 40.0 75.0 8.0 6 39 20 red

10 10.0 9.5 40.0 48.0 90.0 10.0 6 39 20 green

12 12.0 11.5 48.0 56.0 100.0 12.0 6 39 20 green

16 16.0 15.5 64.0 72.0 125.0 16.0 6 39 20 green

20 20.0 19.5 80.0 88.0 150.0 20.0 6 39 20 green
