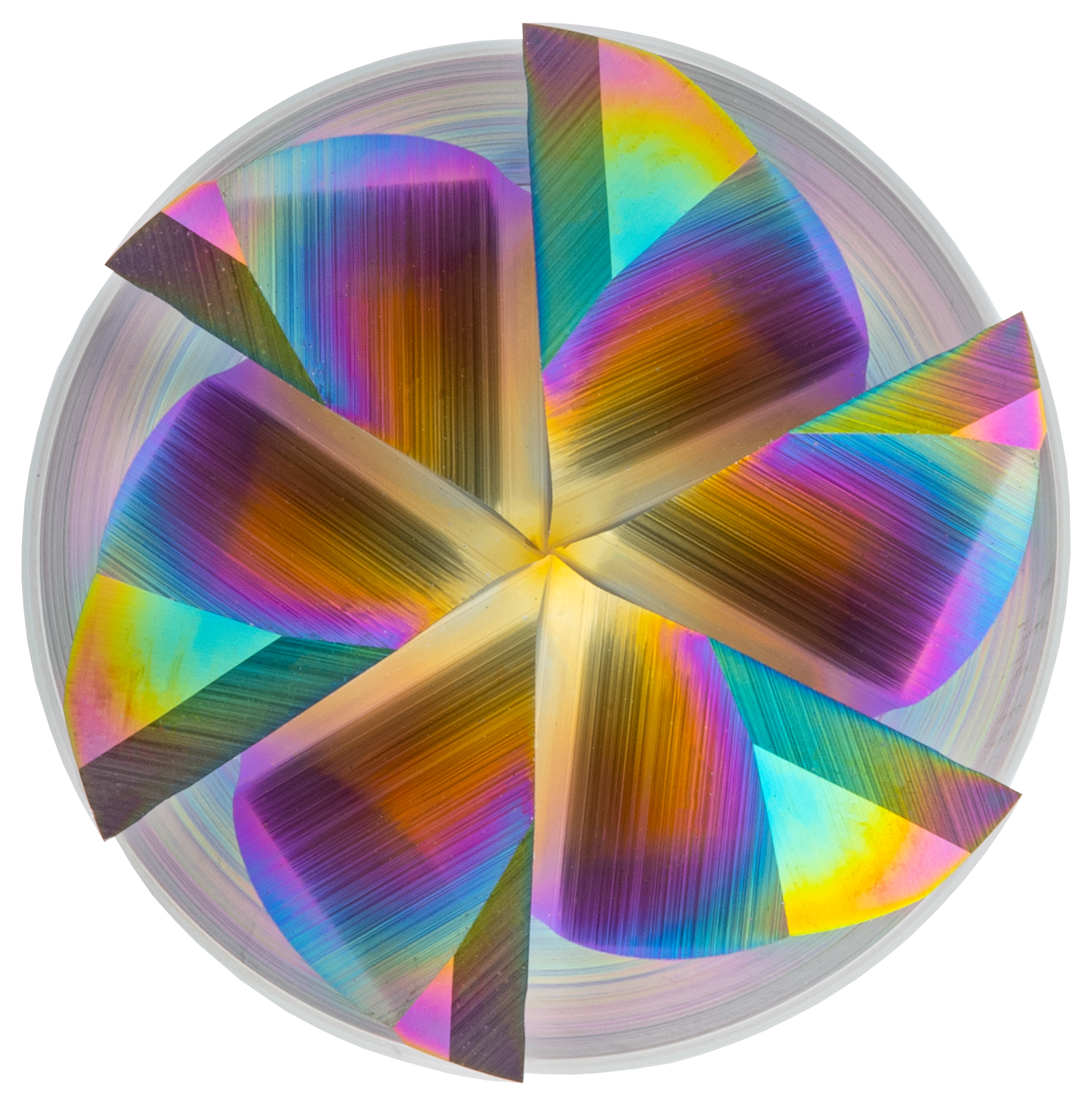

EXN1-M04-0053 | EXN1 Mirrormaker Z6 5xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Performance Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch 5xD Dynamic helical pitch Non-Center Cutting
  • Ultra-sharp and lapped cutting edges
  • Special chip chambers designed for the evacuation of extra long and fine chips
  • Face-Finish-bevel for smooth workpiece surfaces
  • 6 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
Suitability for
Roughing Finishing


EXN1-M04-0053
EXN1-M04-0053
EXN1-M04-0053
EXN1-M04-0053
EXN1-M04-0053
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
6 6.0 5.8 30.0 38.0 75.0 6.0 6 39 20 orange
8 8.0 7.8 40.0 48.0 80.0 8.0 6 39 20 green
10 10.0 9.5 50.0 58.0 100.0 10.0 6 39 20 green
12 12.0 11.5 60.0 68.0 120.0 12.0 6 39 20 green
16 16.0 15.5 80.0 88.0 134.0 16.0 6 39 20 orange
20 20.0 19.5 100.0 108.0 175.0 20.0 6 39 20 orange
