Expert

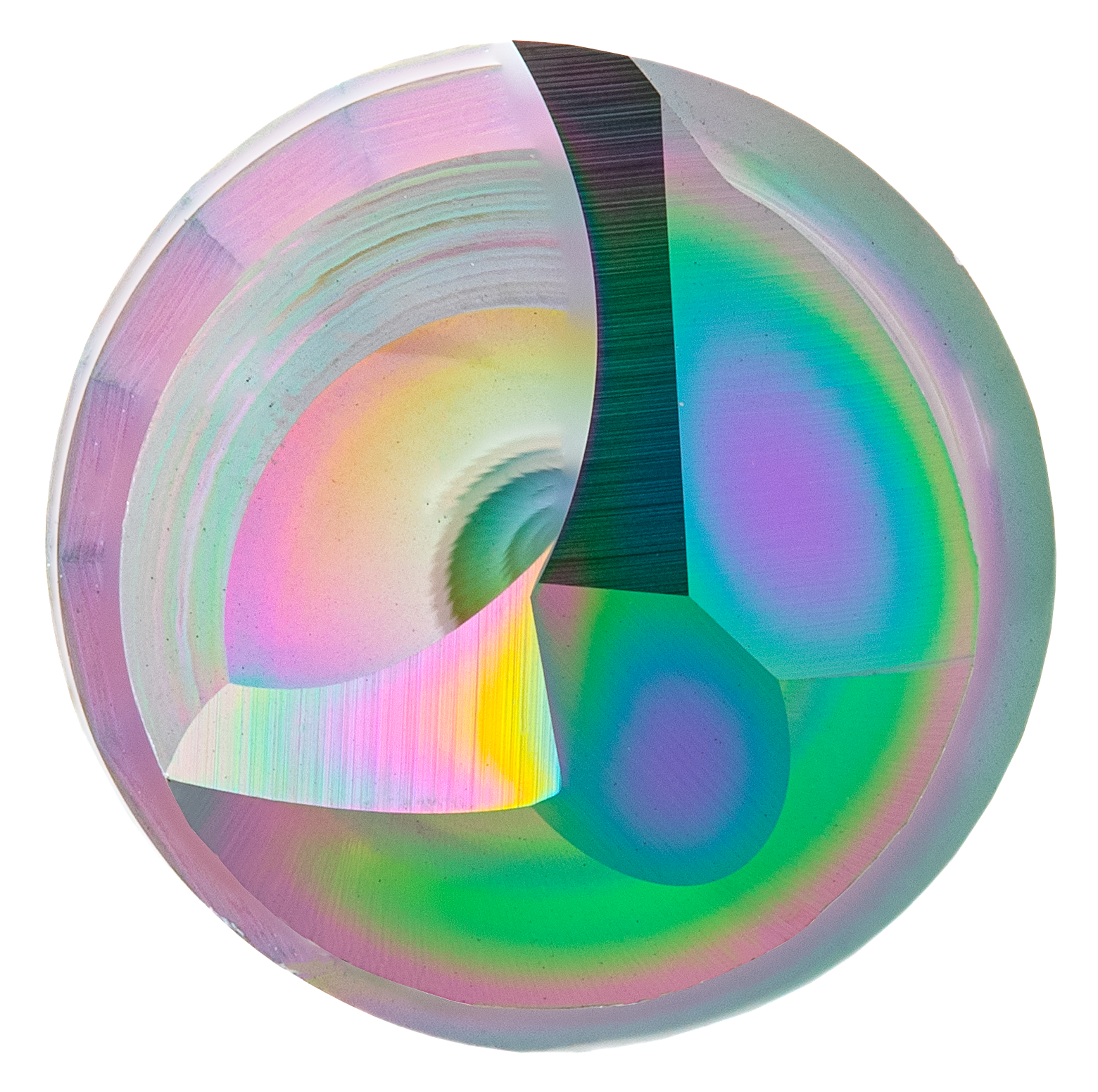

EXN1-M05-0053 | EXN1 Balancemaker Z1 long ASR

Cooling air-cooled dry water min water max
Tolerance h10
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting High Performance Cutting
Applications Trimming Full slot X, Y, Z helical
Features No Weldon Center Cutting
  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Balanced for maximum smoothness
  • For use in high speed milling machines
  • Long version with extra long cutting length
  • For roughing and finishing, up to 1.5xD full slot
  • For process reliable, helical diving and immersion
Suitability for
Roughing Finishing


EXN1-M05-0053
EXN1-M05-0053
EXN1-M05-0053
EXN1-M05-0053
EXN1-M05-0053

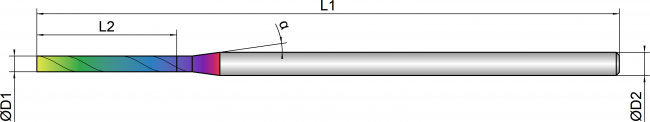

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
1 1.0 8.0 75.0 3.0 1 30 8 green

1,5 1.5 12.0 75.0 3.0 1 30 8 green

2 2.0 18.0 75.0 3.0 1 30 8 green

3 3.0 22.0 75.0 3.0 1 30 - green

4 4.0 25.0 75.0 4.0 1 30 - green

5 5.0 25.0 75.0 5.0 1 30 - green

6 6.0 30.0 100.0 6.0 1 30 - green

8 8.0 35.0 100.0 8.0 1 30 - green

10 10.0 40.0 100.0 10.0 1 30 - red

12 12.0 45.0 120.0 12.0 1 30 - red
