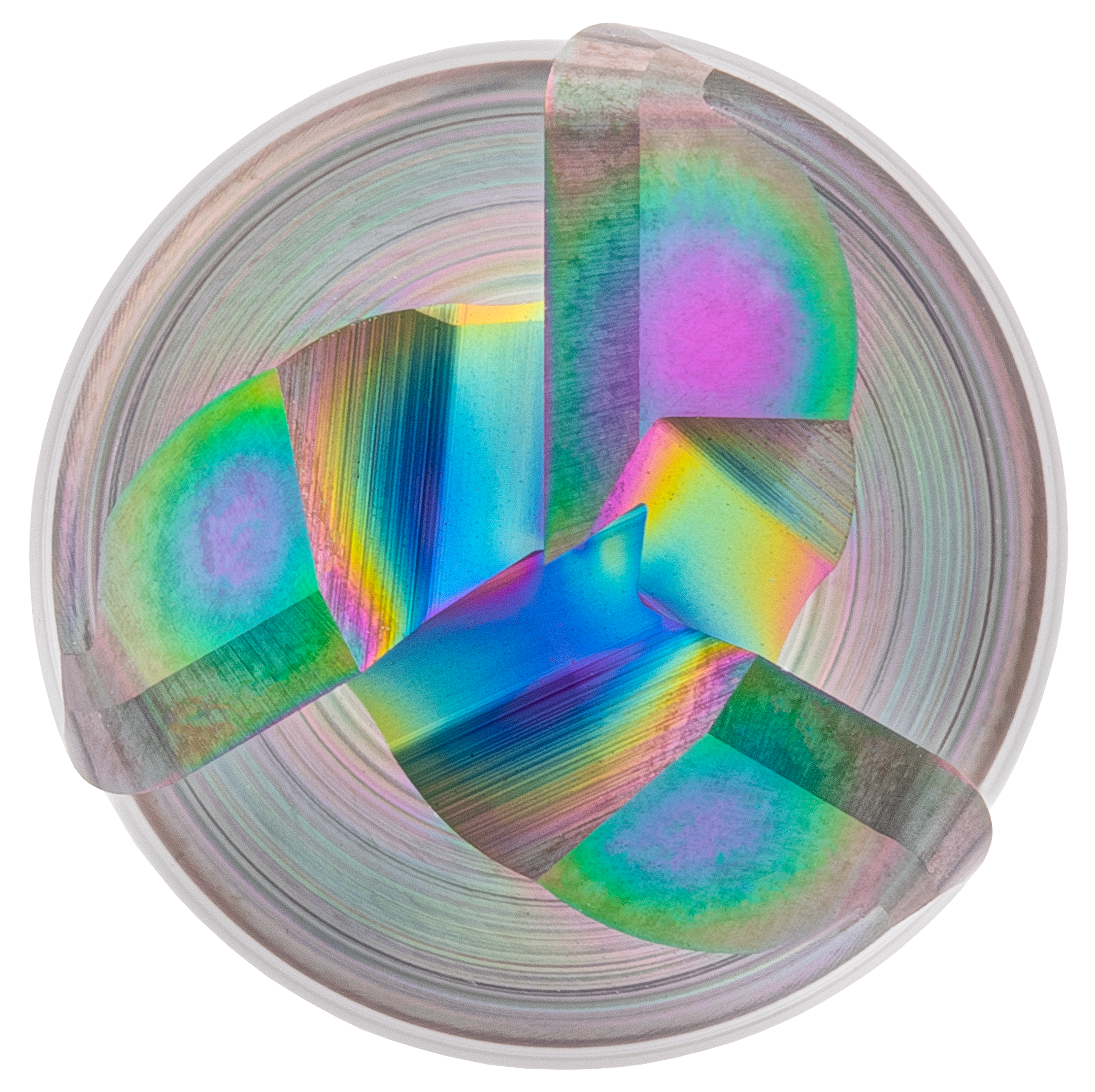

EXN1-M06-0003 | EXN1 Formmaker Z3 2xD ASR
| Cooling |
|
|---|---|
| Tolerance | h6 |
| Coating | AlphaSlide Rainbow |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Defined clearance angle for ideal stabilization with high cutting depths
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- For process reliable, helical diving and immersion
- For roughing and finishing, up to 1.5xD full slot
- Multipass milling of 3D contours
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

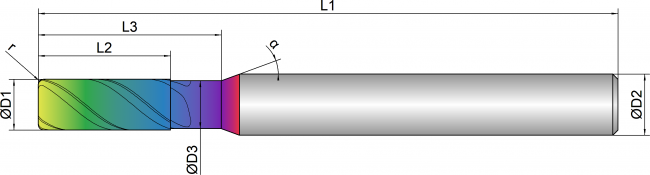

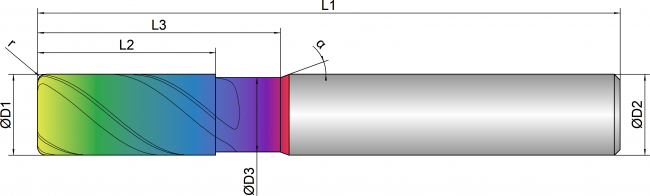

EXN1-M06-0003
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/0,5 | 5.0 | 4.7 | 13.0 | 18.0 | 57.0 | 6.0 | 3 | 0.50 | 45 | 20 |
|
|
| 5/1 | 5.0 | 4.7 | 13.0 | 18.0 | 57.0 | 6.0 | 3 | 1.00 | 45 | 20 |
|
|
| 6/0,5 | 6.0 | 5.7 | 13.0 | 18.0 | 57.0 | 6.0 | 3 | 0.50 | 45 | 20 |
|
|
| 6/1 | 6.0 | 5.7 | 13.0 | 18.0 | 57.0 | 6.0 | 3 | 1.00 | 45 | 20 |
|
|
| 8/0,5 | 8.0 | 7.4 | 21.0 | 25.0 | 63.0 | 8.0 | 3 | 0.50 | 45 | 20 |
|
|
| 8/1 | 8.0 | 7.4 | 21.0 | 25.0 | 63.0 | 8.0 | 3 | 1.00 | 45 | 20 |
|
|
| 10/0,5 | 10.0 | 9.2 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 0.50 | 45 | 20 |
|
|
| 10/1 | 10.0 | 9.2 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 1.00 | 45 | 20 |
|
|
| 10/1,5 | 10.0 | 9.2 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 1.50 | 45 | 20 |
|
|
| 10/2 | 10.0 | 9.2 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 2.00 | 45 | 20 |
|
|
| 10/2,5 | 10.0 | 9.2 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 2.50 | 45 | 20 |
|
|
| 10/3 | 10.0 | 9.2 | 22.0 | 30.0 | 72.0 | 10.0 | 3 | 3.00 | 45 | 20 |
|
|
| 12/0,5 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 0.50 | 45 | 20 |
|
|
| 12/1 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 1.00 | 45 | 20 |
|
|
| 12/1,5 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 1.50 | 45 | 20 |
|
|
| 12/2 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 2.00 | 45 | 20 |
|
|
| 12/2,5 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 2.50 | 45 | 20 |
|
|
| 12/3 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 3.00 | 45 | 20 |
|
|
| 12/4 | 12.0 | 11.0 | 26.0 | 36.0 | 83.0 | 12.0 | 3 | 4.00 | 45 | 20 |
|
|
| 16/1 | 16.0 | 15.0 | 36.0 | 42.0 | 92.0 | 16.0 | 3 | 1.00 | 45 | 20 |
|
|
| 16/1,5 | 16.0 | 15.0 | 36.0 | 42.0 | 92.0 | 16.0 | 3 | 1.50 | 45 | 20 |
|
|
| 16/2 | 16.0 | 15.0 | 36.0 | 42.0 | 92.0 | 16.0 | 3 | 2.00 | 45 | 20 |
|
|
| 16/2,5 | 16.0 | 15.0 | 36.0 | 42.0 | 92.0 | 16.0 | 3 | 2.50 | 45 | 20 |
|
|
| 16/3 | 16.0 | 15.0 | 36.0 | 42.0 | 92.0 | 16.0 | 3 | 3.00 | 45 | 20 |
|
|
| 16/4 | 16.0 | 15.0 | 36.0 | 42.0 | 92.0 | 16.0 | 3 | 4.00 | 45 | 20 |
|
|
| 20/1 | 20.0 | 19.0 | 41.0 | 52.0 | 104.0 | 20.0 | 3 | 1.00 | 45 | 20 |
|
|
| 20/2 | 20.0 | 19.0 | 41.0 | 52.0 | 104.0 | 20.0 | 3 | 2.00 | 45 | 20 |
|
|
| 20/3 | 20.0 | 19.0 | 41.0 | 52.0 | 104.0 | 20.0 | 3 | 3.00 | 45 | 20 |
|
|
| 20/4 | 20.0 | 19.0 | 41.0 | 52.0 | 104.0 | 20.0 | 3 | 4.00 | 45 | 20 |
|
