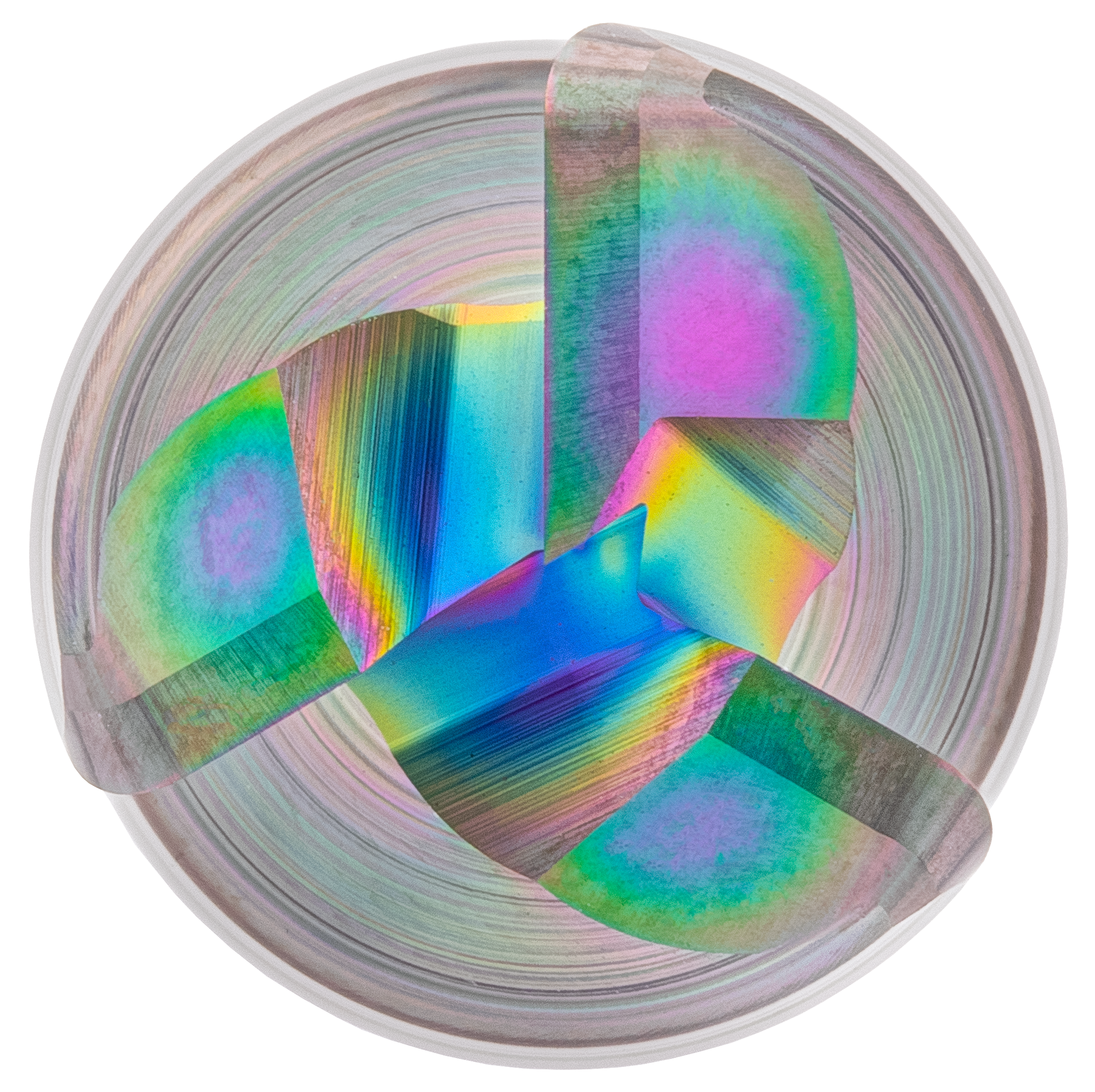

EXN1-M06-0013 | EXN1 Formmaker Z3 1,5xD long ASR
| Kühlung |
|
|---|---|
| Toleranz | h6 |
| Beschichtung | AlphaSlide Rainbow |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Definierter Freiwinkel für ideale Stabilisierung bei hohen Zustellungen
- Spezielle Drallsteigung für ruhigen Lauf und weichen Schnitt
- Extra große Spankammern für ein extremes Spanvolumen
- Radiustoleranz r ≤ 1,5 mm: ± 0,003 mm
- Radiustoleranz r > 1,5 mm: ± 0,005 mm
- Lange Ausführung für tiefere Kavitäten
- Zum Schruppen und Schlichten
- Abzeilen von 3D-Konturen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

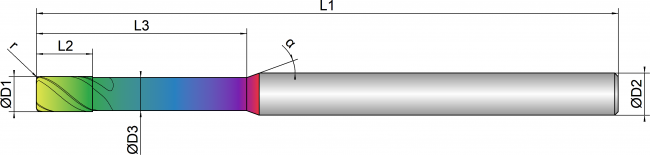

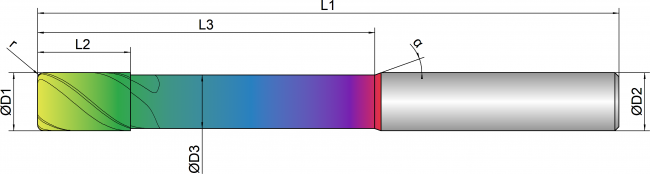

EXN1-M06-0013
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/0,5 | 5,0 | 4,7 | 8,0 | 30,0 | 83,0 | 6,0 | 3 | 0,50 | 45 | 20 |
|
|
| 5/1 | 5,0 | 4,7 | 8,0 | 30,0 | 83,0 | 6,0 | 3 | 1,00 | 45 | 20 |
|
|
| 6/0,5 | 6,0 | 5,7 | 10,0 | 42,0 | 83,0 | 6,0 | 3 | 0,50 | 45 | 20 |
|
|
| 6/1 | 6,0 | 5,7 | 10,0 | 42,0 | 83,0 | 6,0 | 3 | 1,00 | 45 | 20 |
|
|
| 8/0,5 | 8,0 | 7,4 | 13,0 | 62,0 | 100,0 | 8,0 | 3 | 0,50 | 45 | 20 |
|
|
| 8/1 | 8,0 | 7,4 | 13,0 | 62,0 | 100,0 | 8,0 | 3 | 1,00 | 45 | 20 |
|
|
| 10/0,5 | 10,0 | 9,2 | 16,0 | 58,0 | 100,0 | 10,0 | 3 | 0,50 | 45 | 20 |
|
|
| 10/1 | 10,0 | 9,2 | 16,0 | 58,0 | 100,0 | 10,0 | 3 | 1,00 | 45 | 20 |
|
|
| 10/1,5 | 10,0 | 9,2 | 16,0 | 58,0 | 100,0 | 10,0 | 3 | 1,50 | 45 | 20 |
|
|
| 10/2 | 10,0 | 9,2 | 16,0 | 58,0 | 100,0 | 10,0 | 3 | 2,00 | 45 | 20 |
|
|
| 10/2,5 | 10,0 | 9,2 | 16,0 | 58,0 | 100,0 | 10,0 | 3 | 2,50 | 45 | 20 |
|
|
| 10/3 | 10,0 | 9,2 | 16,0 | 58,0 | 100,0 | 10,0 | 3 | 3,00 | 45 | 20 |
|
|
| 12/0,5 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 0,50 | 45 | 20 |
|
|
| 12/1 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 1,00 | 45 | 20 |
|
|
| 12/1,5 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 1,50 | 45 | 20 |
|
|
| 12/2 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 2,00 | 45 | 20 |
|
|
| 12/2,5 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 2,50 | 45 | 20 |
|
|
| 12/3 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 3,00 | 45 | 20 |
|
|
| 12/4 | 12,0 | 11,0 | 19,0 | 73,0 | 119,0 | 12,0 | 3 | 4,00 | 45 | 20 |
|
|
| 16/1 | 16,0 | 15,0 | 25,0 | 100,0 | 150,0 | 16,0 | 3 | 1,00 | 45 | 20 |
|
|
| 16/1,5 | 16,0 | 15,0 | 25,0 | 100,0 | 150,0 | 16,0 | 3 | 1,50 | 45 | 20 |
|
|
| 16/2 | 16,0 | 15,0 | 25,0 | 100,0 | 150,0 | 16,0 | 3 | 2,00 | 45 | 20 |
|
|
| 16/2,5 | 16,0 | 15,0 | 25,0 | 100,0 | 150,0 | 16,0 | 3 | 2,50 | 45 | 20 |
|
|
| 16/3 | 16,0 | 15,0 | 25,0 | 100,0 | 150,0 | 16,0 | 3 | 3,00 | 45 | 20 |
|
|
| 16/4 | 16,0 | 15,0 | 25,0 | 100,0 | 150,0 | 16,0 | 3 | 4,00 | 45 | 20 |
|
|
| 20/1 | 20,0 | 19,0 | 32,0 | 98,0 | 150,0 | 20,0 | 3 | 1,00 | 45 | 20 |
|
|
| 20/2 | 20,0 | 19,0 | 32,0 | 98,0 | 150,0 | 20,0 | 3 | 2,00 | 45 | 20 |
|
|
| 20/3 | 20,0 | 19,0 | 32,0 | 98,0 | 150,0 | 20,0 | 3 | 3,00 | 45 | 20 |
|
|
| 20/4 | 20,0 | 19,0 | 32,0 | 98,0 | 150,0 | 20,0 | 3 | 4,00 | 45 | 20 |
|
