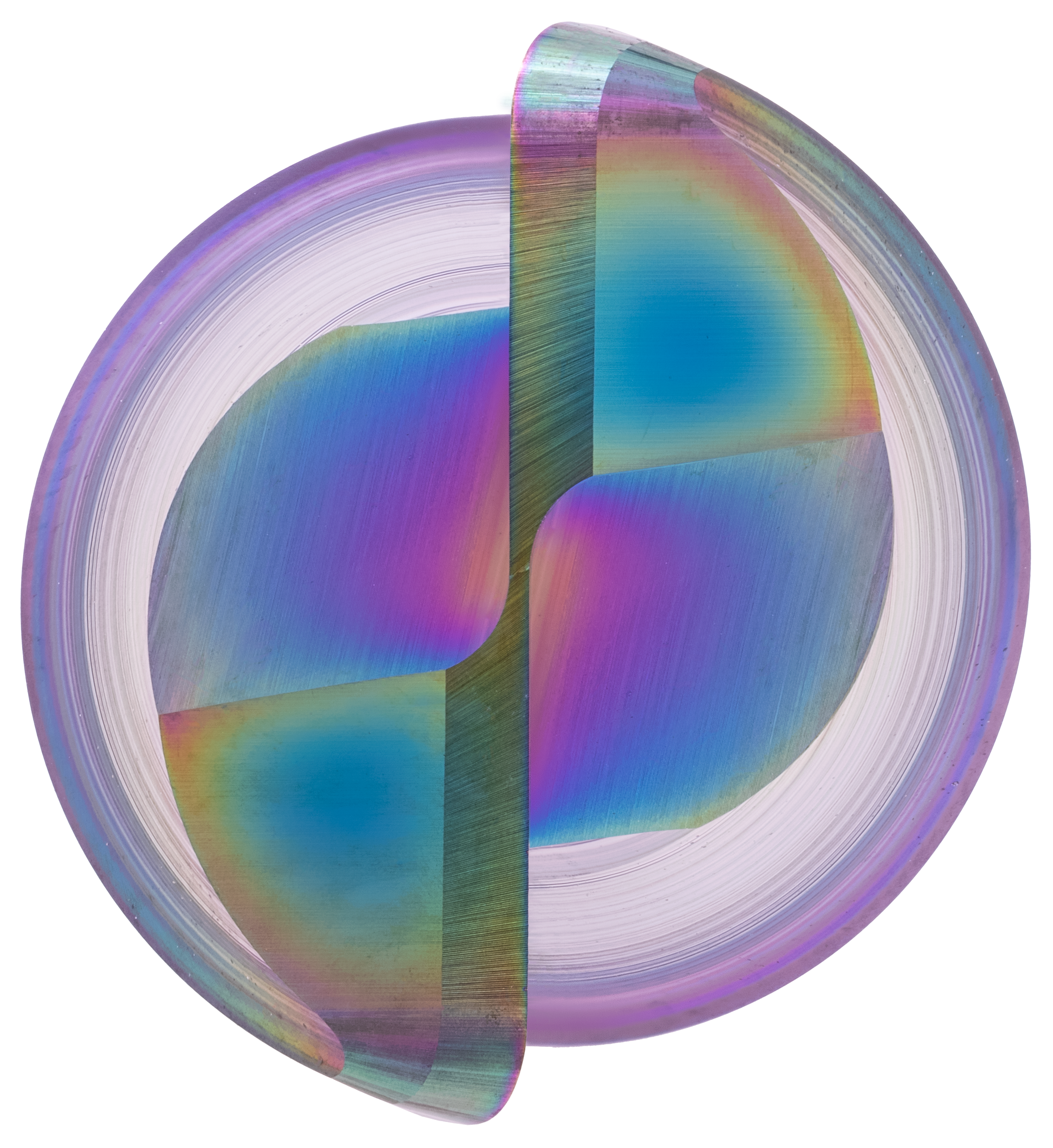

EXN1-M06-0103 | EXN1 Formmaker Z2 2xD ASR

Cooling air-cooled dry water min water max
Tolerance h6
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Speed Cutting High Performance Cutting
Applications Multipass milling Trimming Full slot X, Y helical
Features No Weldon 2xD Center Cutting Corner radius
  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helix pitch for smooth running and a soft cut
  • Extra large chip chambers for an extreme chip volume
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • For multipass milling of 3D contours
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M06-0103
EXN1-M06-0103
EXN1-M06-0103
EXN1-M06-0103
EXN1-M06-0103

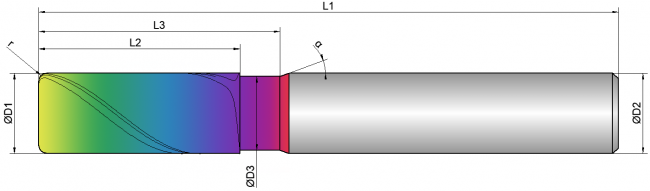

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6/0,5 6.0 5.5 16.0 21.0 57.0 6.0 2 0.50 38 20 orange

6/1 6.0 5.5 16.0 21.0 57.0 6.0 2 1.00 38 20 green

6/2 6.0 5.5 16.0 21.0 57.0 6.0 2 2.00 38 20 green

8/0,5 8.0 7.5 22.0 27.0 63.0 8.0 2 0.50 38 20 red

8/1 8.0 7.5 22.0 27.0 63.0 8.0 2 1.00 38 20 orange

8/2 8.0 7.5 22.0 27.0 63.0 8.0 2 2.00 38 20 orange

10/0,5 10.0 9.4 25.0 30.0 72.0 10.0 2 0.50 38 20 orange

10/1 10.0 9.4 25.0 30.0 72.0 10.0 2 1.00 38 20 orange

10/2 10.0 9.4 25.0 30.0 72.0 10.0 2 2.00 38 20 orange

12/0,5 12.0 11.4 28.0 33.0 83.0 12.0 2 0.50 38 20 orange

12/1 12.0 11.4 28.0 33.0 83.0 12.0 2 1.00 38 20 green

12/2 12.0 11.4 28.0 33.0 83.0 12.0 2 2.00 38 20 orange

16/0,5 16.0 15.4 36.0 41.0 92.0 16.0 2 0.50 38 20 green

16/1 16.0 15.4 36.0 41.0 92.0 16.0 2 1.00 38 20 orange

16/2 16.0 15.4 36.0 41.0 92.0 16.0 2 2.00 38 20 orange

20/0,5 20.0 19.4 41.0 51.0 104.0 20.0 2 0.50 38 20 orange

20/1 20.0 19.4 41.0 51.0 104.0 20.0 2 1.00 38 20 orange

20/2 20.0 19.4 41.0 51.0 104.0 20.0 2 2.00 38 20 orange
