EXN1-M06-0213 | EXN1 Formmaker Z4 3xD ASR
| Cooling |
|
|---|---|
| Tolerance | h6 |
| Coating | AlphaSlide Rainbow |
| Downloads |
Catalog page & Cutting data
interactive Cutting data calculator |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|

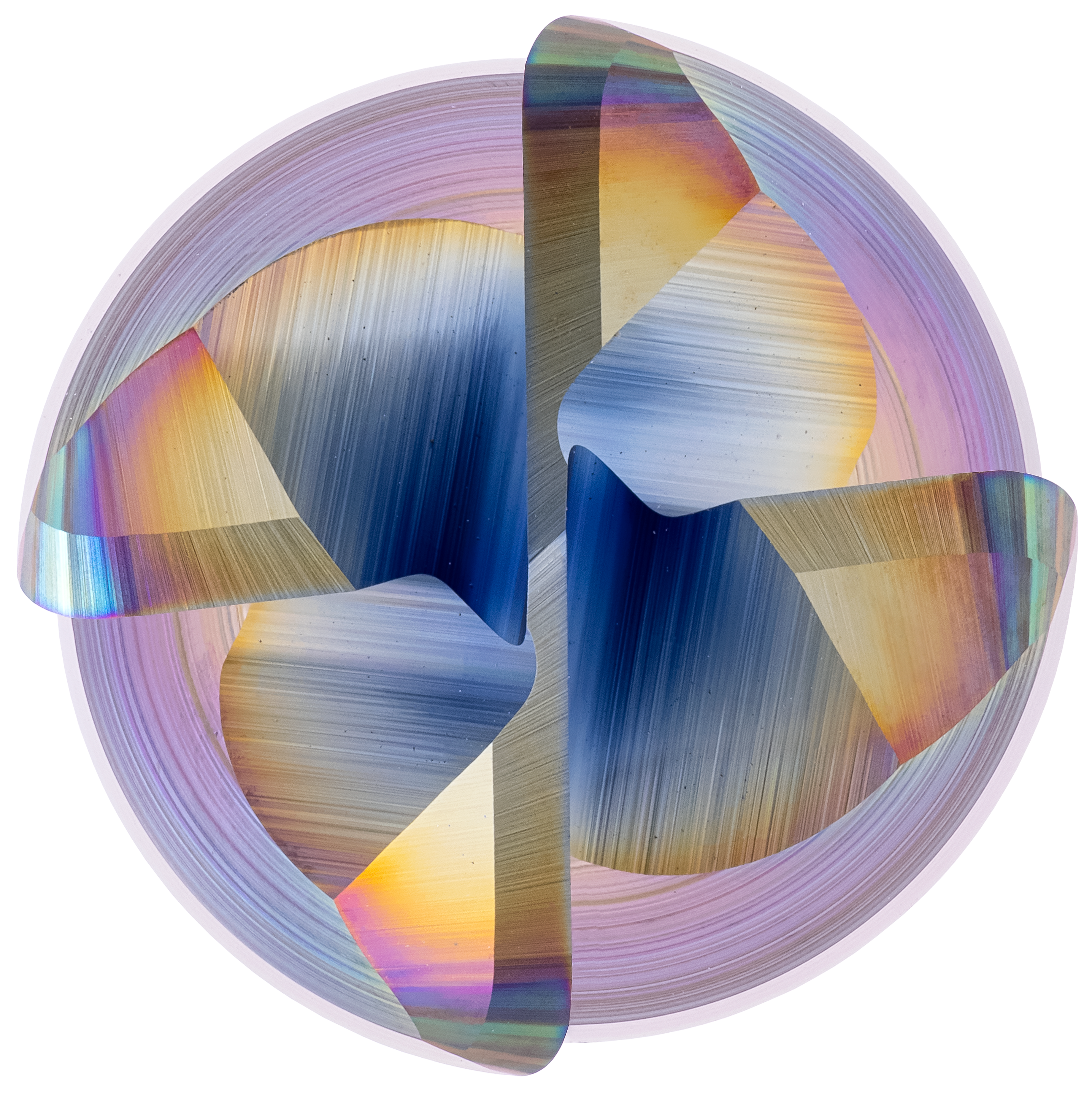

- Four cutting edges for best performance and stability
- Extra large chip chambers for ideal chip evacuation, also in the full slot and when milling with high radial depth of cut
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- For multipass milling of 3D contours
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

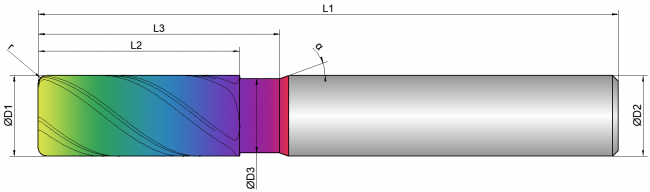

EXN1-M06-0213
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6/0,5 | 6.0 | 5.5 | 20.0 | 24.0 | 65.0 | 6.0 | 4 | 0.50 | 38 | 20 |
|
|
| 6/1 | 6.0 | 5.5 | 20.0 | 24.0 | 65.0 | 6.0 | 4 | 1.00 | 38 | 20 |
|
|
| 6/1,5 | 6.0 | 5.5 | 20.0 | 24.0 | 65.0 | 6.0 | 4 | 1.50 | 38 | 20 |
|
|
| 6/2 | 6.0 | 5.5 | 20.0 | 24.0 | 65.0 | 6.0 | 4 | 2.00 | 38 | 20 |
|
|
| 8/0,5 | 8.0 | 7.5 | 26.0 | 30.0 | 70.0 | 8.0 | 4 | 0.50 | 38 | 20 |
|
|
| 8/1 | 8.0 | 7.5 | 26.0 | 30.0 | 70.0 | 8.0 | 4 | 1.00 | 38 | 20 |
|
|
| 8/2 | 8.0 | 7.5 | 26.0 | 30.0 | 70.0 | 8.0 | 4 | 2.00 | 38 | 20 |
|
|
| 8/3 | 8.0 | 7.5 | 26.0 | 30.0 | 70.0 | 8.0 | 4 | 3.00 | 38 | 20 |
|
|
| 10/0,5 | 10.0 | 9.4 | 32.0 | 38.0 | 80.0 | 10.0 | 4 | 0.50 | 38 | 20 |
|
|
| 10/1 | 10.0 | 9.4 | 32.0 | 38.0 | 80.0 | 10.0 | 4 | 1.00 | 38 | 20 |
|
|
| 10/2 | 10.0 | 9.4 | 32.0 | 38.0 | 80.0 | 10.0 | 4 | 2.00 | 38 | 20 |
|
|
| 10/3 | 10.0 | 9.4 | 32.0 | 38.0 | 80.0 | 10.0 | 4 | 3.00 | 38 | 20 |
|
|
| 12/0,5 | 12.0 | 11.4 | 38.0 | 46.0 | 93.0 | 12.0 | 4 | 0.50 | 38 | 20 |
|
|
| 12/1 | 12.0 | 11.4 | 38.0 | 46.0 | 93.0 | 12.0 | 4 | 1.00 | 38 | 20 |
|
|
| 12/2 | 12.0 | 11.4 | 38.0 | 46.0 | 93.0 | 12.0 | 4 | 2.00 | 38 | 20 |
|
|
| 12/3 | 12.0 | 11.4 | 38.0 | 46.0 | 93.0 | 12.0 | 4 | 3.00 | 38 | 20 |
|
|
| 16/0,5 | 16.0 | 15.4 | 50.0 | 58.0 | 110.0 | 16.0 | 4 | 0.50 | 38 | 20 |
|
|
| 16/1 | 16.0 | 15.4 | 50.0 | 58.0 | 110.0 | 16.0 | 4 | 1.00 | 38 | 20 |
|
|
| 16/2 | 16.0 | 15.4 | 50.0 | 58.0 | 110.0 | 16.0 | 4 | 2.00 | 38 | 20 |
|
|
| 16/3 | 16.0 | 15.4 | 50.0 | 58.0 | 110.0 | 16.0 | 4 | 3.00 | 38 | 20 |
|
|
| 20/0,5 | 20.0 | 19.4 | 62.0 | 74.0 | 125.0 | 20.0 | 4 | 0.50 | 38 | 20 |
|
|
| 20/1 | 20.0 | 19.4 | 62.0 | 74.0 | 125.0 | 20.0 | 4 | 1.00 | 38 | 20 |
|
|
| 20/2 | 20.0 | 19.4 | 62.0 | 74.0 | 125.0 | 20.0 | 4 | 2.00 | 38 | 20 |
|
|
| 20/3 | 20.0 | 19.4 | 62.0 | 74.0 | 125.0 | 20.0 | 4 | 3.00 | 38 | 20 |
|
|
| 20/4 | 20.0 | 19.4 | 62.0 | 74.0 | 125.0 | 20.0 | 4 | 4.00 | 38 | 20 |
|
