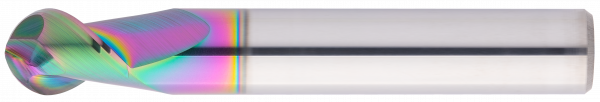

EXN1-M08-0003 | EXN1 Rowmaker Z2 1xD short ASR

Cooling air-cooled dry water min water max
Tolerance f8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting 1xD Corner radius
  • Optimized face geometry for excellent surfaces
  • Defined microbevel for support and stabilization
  • Special chip chambers designed for optimal chip evacuation
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M08-0003
EXN1-M08-0003
EXN1-M08-0003
EXN1-M08-0003
EXN1-M08-0003

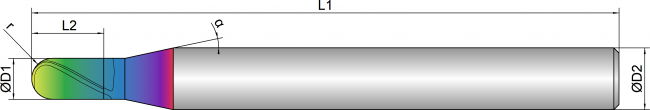

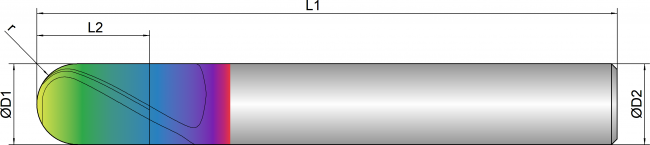

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
0,5 0.5 1.0 55.0 6.0 2 0.25 45 12 orange

1 1.0 2.0 55.0 6.0 2 0.50 45 12 green

2 2.0 4.0 55.0 6.0 2 1.00 45 12 green

3 3.0 6.0 55.0 6.0 2 1.50 45 12 green

4 4.0 7.0 55.0 6.0 2 2.00 45 12 green

5 5.0 8.0 55.0 6.0 2 2.50 45 12 orange

6 6.0 10.0 55.0 6.0 2 3.00 45 - green

8 8.0 12.0 63.0 8.0 2 4.00 45 - green

10 10.0 14.0 72.0 10.0 2 5.00 45 - green

12 12.0 16.0 74.0 12.0 2 6.00 45 - green
