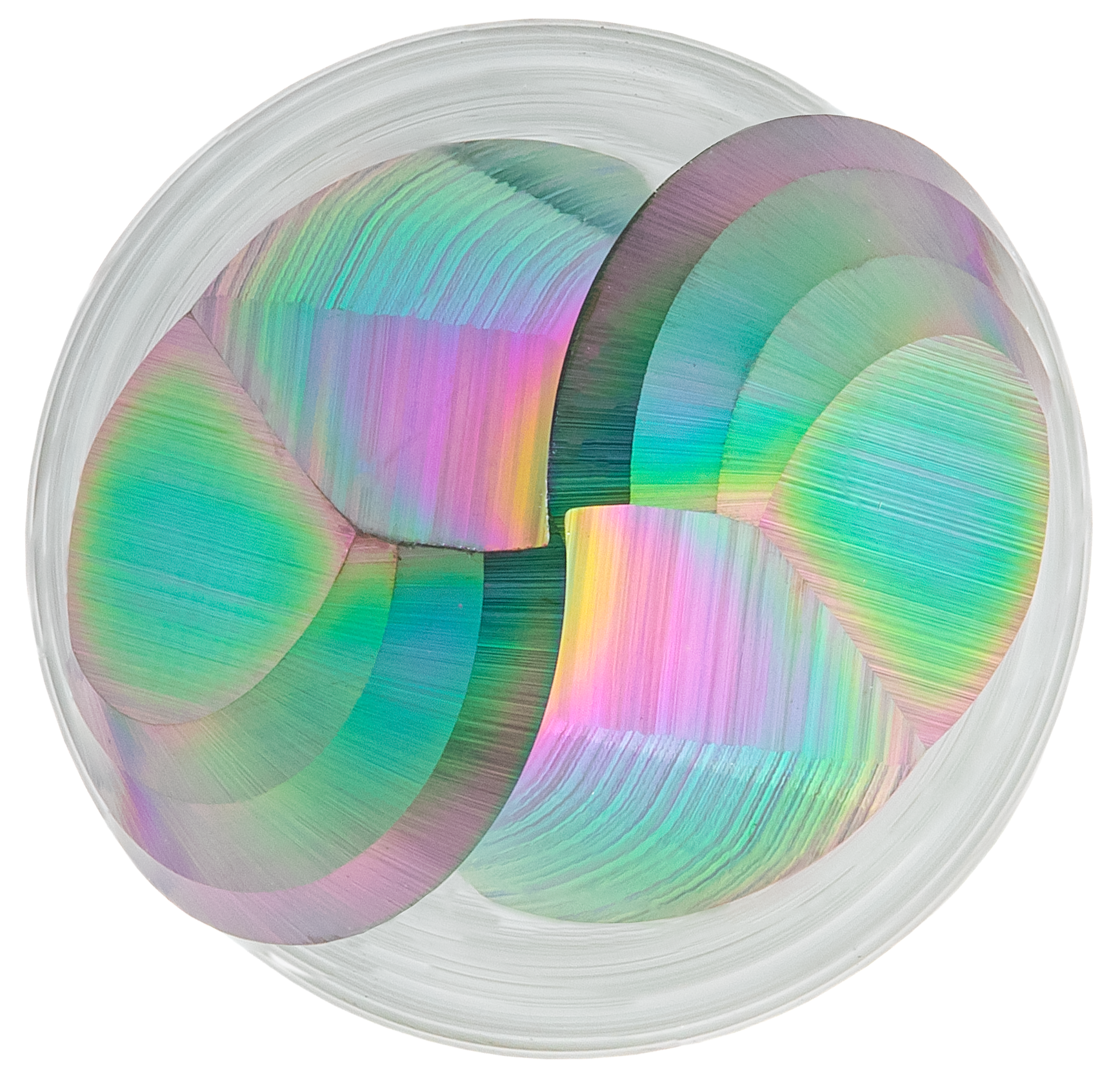

EXN1-M08-0013 | EXN1 Rowmaker Z2 1,5xD long ASR

Cooling air-cooled dry water min water max
Tolerance f8
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting
  • Optimized face geometry for excellent surfaces
  • Defined microbevel for support and stabilization
  • Special chip chambers designed for optimal chip evacuation
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Long version for deeper cavities
  • For use in HSC milling
  • For roughing and finishing
Suitability for
Roughing Finishing


EXN1-M08-0013
EXN1-M08-0013
EXN1-M08-0013
EXN1-M08-0013
EXN1-M08-0013

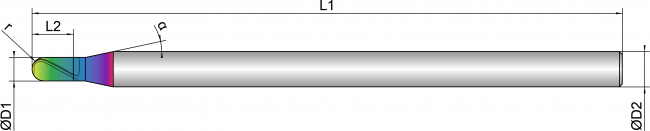

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
0,5 0.5 1.0 75.0 6.0 2 0.25 45 12 red
1 1.0 2.0 75.0 6.0 2 0.50 45 12 red
2 2.0 4.0 75.0 6.0 2 1.00 45 12 red
3 3.0 6.0 75.0 6.0 2 1.50 45 12 red
4 4.0 7.0 75.0 6.0 2 2.00 45 12 red
5 5.0 8.0 100.0 6.0 2 2.50 45 12 red
6 6.0 10.0 100.0 6.0 2 3.00 45 - red
8 8.0 12.0 100.0 8.0 2 4.00 45 - red
10 10.0 14.0 100.0 10.0 2 5.00 45 - red
12 12.0 16.0 100.0 12.0 2 6.00 45 - red
