EXN1-M08-0103 | EXN1 Rowmaker Z4 2xD short ASR
| Cooling |
|
|---|---|
| Tolerance | h6 |
| Coating | AlphaSlide Rainbow |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|

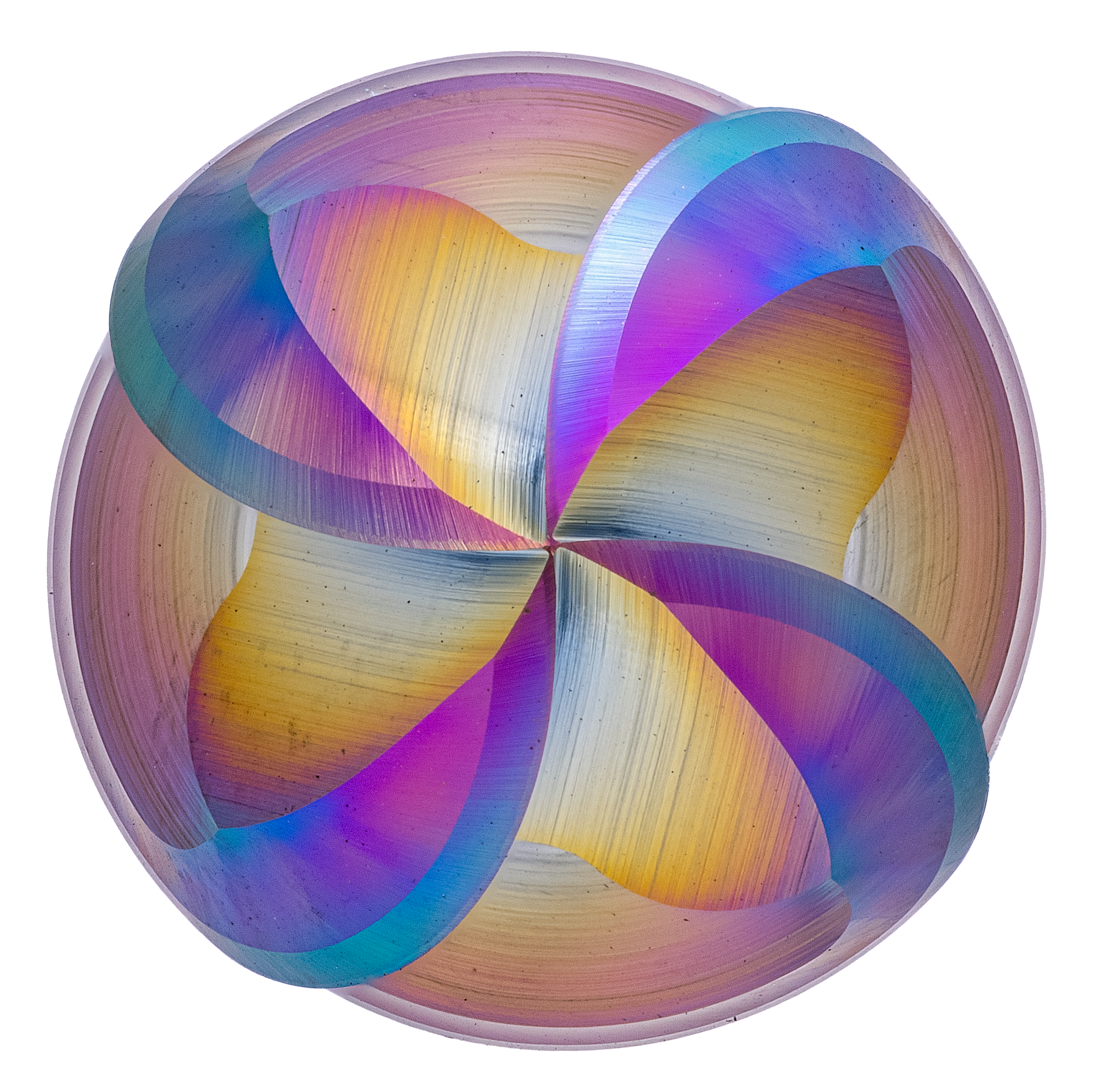

- Four cutting edges to the center for the best dimensional accuracy at high material removal rates
- Defined microbevel and optimized face geometry for excellent surface quality
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
- For use in HSC milling
- For roughing and finishing
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

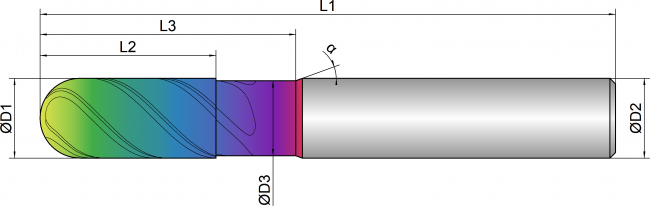

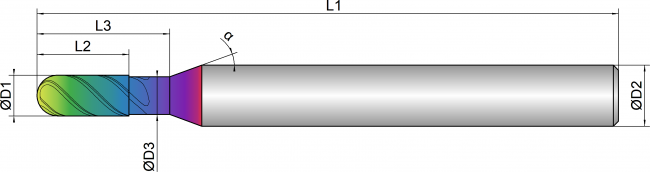

EXN1-M08-0103
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.0 | 2.7 | 7.0 | 10.0 | 57.0 | 6.0 | 4 | 1.50 | 45 | 20 |
|
|
| 4 | 4.0 | 3.7 | 9.0 | 13.0 | 57.0 | 6.0 | 4 | 2.00 | 45 | 20 |
|
|
| 5 | 5.0 | 4.6 | 11.0 | 16.0 | 57.0 | 6.0 | 4 | 2.50 | 45 | 20 |
|
|
| 6 | 6.0 | 5.5 | 13.0 | 18.0 | 57.0 | 6.0 | 4 | 3.00 | 45 | 20 |
|
|
| 8 | 8.0 | 7.5 | 18.0 | 26.0 | 63.0 | 8.0 | 4 | 4.00 | 45 | 20 |
|
|
| 10 | 10.0 | 9.4 | 22.0 | 32.0 | 72.0 | 10.0 | 4 | 5.00 | 45 | 20 |
|
|
| 12 | 12.0 | 11.4 | 26.0 | 36.0 | 83.0 | 12.0 | 4 | 6.00 | 45 | 20 |
|
|
| 16 | 16.0 | 15.0 | 34.0 | 48.0 | 92.0 | 16.0 | 4 | 8.00 | 45 | 20 |
|
