EXN1-M15-0003 | EXN1 Performmaker Micro Z2 ASR

Cooling air-cooled dry water min water max
Tolerance d04
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Trimming Full slot X, Y, Z helical
Features No Weldon Center Cutting Sharp-edged

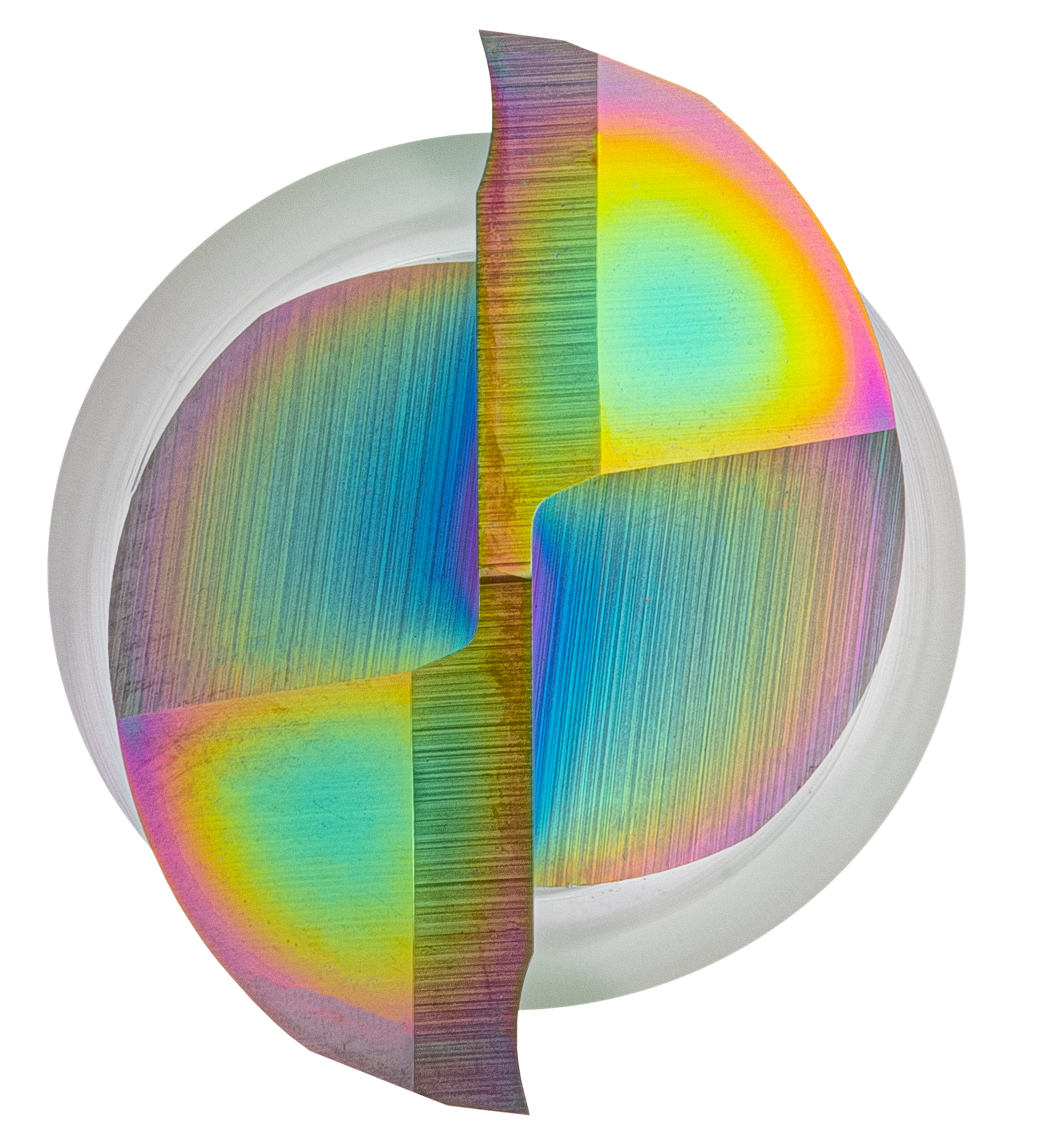

  • Optimized face geometry for excellent surfaces
  • Defined microbevel for support and stabilization
  • Polished chip space for ideal chip evacuation
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M15-0003
EXN1-M15-0003
EXN1-M15-0003
EXN1-M15-0003
EXN1-M15-0003

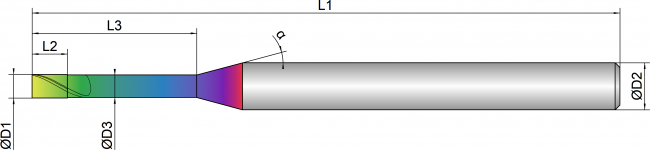

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
α
winkel_alpha
0,2X0,5 0.2 0.18 0.3 0.5 45.0 4.0 2 30 16 green

0,2X1 0.2 0.18 0.3 1.0 45.0 4.0 2 30 16 green

0,2X1,5 0.2 0.18 0.3 1.5 45.0 4.0 2 30 16 green

0,3X1 0.3 0.28 0.4 1.0 45.0 4.0 2 30 16 green

0,3X2 0.3 0.28 0.4 2.0 45.0 4.0 2 30 16 green

0,4X2 0.4 0.38 0.6 2.0 45.0 4.0 2 30 16 green

0,4X3 0.4 0.38 0.6 3.0 45.0 4.0 2 30 16 green

0,5X2 0.5 0.48 0.7 2.0 45.0 4.0 2 30 16 green

0,5X4 0.5 0.48 0.7 4.0 45.0 4.0 2 30 16 green

0,5X6 0.5 0.48 0.7 6.0 45.0 4.0 2 30 16 green

0,6X2 0.6 0.58 0.9 2.0 45.0 4.0 2 30 16 green

0,6X4 0.6 0.58 0.9 4.0 45.0 4.0 2 30 16 green

0,6X6 0.6 0.58 0.9 6.0 45.0 4.0 2 30 16 green

0,7X2 0.7 0.68 1.0 2.0 45.0 4.0 2 30 16 green

0,7X4 0.7 0.68 1.0 4.0 45.0 4.0 2 30 16 green

0,8X4 0.8 0.78 1.2 4.0 45.0 4.0 2 30 16 green

0,8X6 0.8 0.78 1.2 6.0 45.0 4.0 2 30 16 green

0,8X8 0.8 0.78 1.2 8.0 45.0 4.0 2 30 16 green

1X4 1.0 0.95 1.5 4.0 45.0 4.0 2 30 16 green

1X6 1.0 0.95 1.5 6.0 45.0 4.0 2 30 16 green

1X8 1.0 0.95 1.5 8.0 45.0 4.0 2 30 16 orange

1X10 1.0 0.95 1.5 10.0 45.0 4.0 2 30 16 orange

1X12 1.0 0.95 1.5 12.0 45.0 4.0 2 30 16 green

1X14 1.0 0.95 1.5 14.0 45.0 4.0 2 30 16 green

1X16 1.0 0.95 1.5 16.0 50.0 4.0 2 30 16 green

1X25 1.0 0.95 1.5 25.0 70.0 4.0 2 30 16 green

1,2X6 1.2 1.14 1.8 6.0 45.0 4.0 2 30 16 green

1,2X8 1.2 1.14 1.8 8.0 45.0 4.0 2 30 16 green

1,2X10 1.2 1.14 1.8 10.0 45.0 4.0 2 30 16 green

1,4X6 1.4 1.34 2.1 6.0 45.0 4.0 2 30 16 green

1,4X8 1.4 1.34 2.1 8.0 45.0 4.0 2 30 16 green

1,5X6 1.5 1.44 2.3 6.0 45.0 4.0 2 30 16 orange

1,5X8 1.5 1.44 2.3 8.0 45.0 4.0 2 30 16 green

1,5X10 1.5 1.44 2.3 10.0 45.0 4.0 2 30 16 green

1,5X12 1.5 1.44 2.3 12.0 45.0 4.0 2 30 16 green

1,5X14 1.5 1.44 2.3 14.0 50.0 4.0 2 30 16 green

1,5X16 1.5 1.44 2.3 16.0 50.0 4.0 2 30 16 green

1,5X20 1.5 1.44 2.3 20.0 55.0 4.0 2 30 16 green

1,5X25 1.5 1.44 2.3 25.0 70.0 4.0 2 30 16 green

1,6X6 1.6 1.51 2.4 6.0 45.0 4.0 2 30 16 green

1,6X10 1.6 1.51 2.4 10.0 45.0 4.0 2 30 16 green

1,8X6 1.8 1.71 2.7 6.0 45.0 4.0 2 30 16 green

1,8X8 1.8 1.71 2.7 8.0 45.0 4.0 2 30 16 green

1,8X10 1.8 1.71 2.7 10.0 45.0 4.0 2 30 16 green

2X6 2.0 1.91 3.0 6.0 45.0 4.0 2 30 16 orange

2X8 2.0 1.91 3.0 8.0 45.0 4.0 2 30 16 green

2X10 2.0 1.91 3.0 10.0 45.0 4.0 2 30 16 green

2X12 2.0 1.91 3.0 12.0 45.0 4.0 2 30 16 orange

2X14 2.0 1.91 3.0 14.0 50.0 4.0 2 30 16 green

2X16 2.0 1.91 3.0 16.0 50.0 4.0 2 30 16 green

2X20 2.0 1.91 3.0 20.0 55.0 4.0 2 30 16 green

2X25 2.0 1.91 3.0 25.0 60.0 4.0 2 30 16 green

2X30 2.0 1.91 3.0 30.0 70.0 4.0 2 30 16 green

2X35 2.0 1.91 3.0 35.0 80.0 4.0 2 30 16 green

2,5X8 2.5 2.41 3.7 8.0 45.0 4.0 2 30 16 green

2,5X12 2.5 2.41 3.7 12.0 45.0 4.0 2 30 16 green

2,5X16 2.5 2.41 3.7 16.0 50.0 4.0 2 30 16 green

2,5X20 2.5 2.41 3.7 20.0 55.0 4.0 2 30 16 orange

2,5X25 2.5 2.41 3.7 25.0 60.0 4.0 2 30 16 green

2,5X30 2.5 2.41 3.7 30.0 70.0 4.0 2 30 16 green
