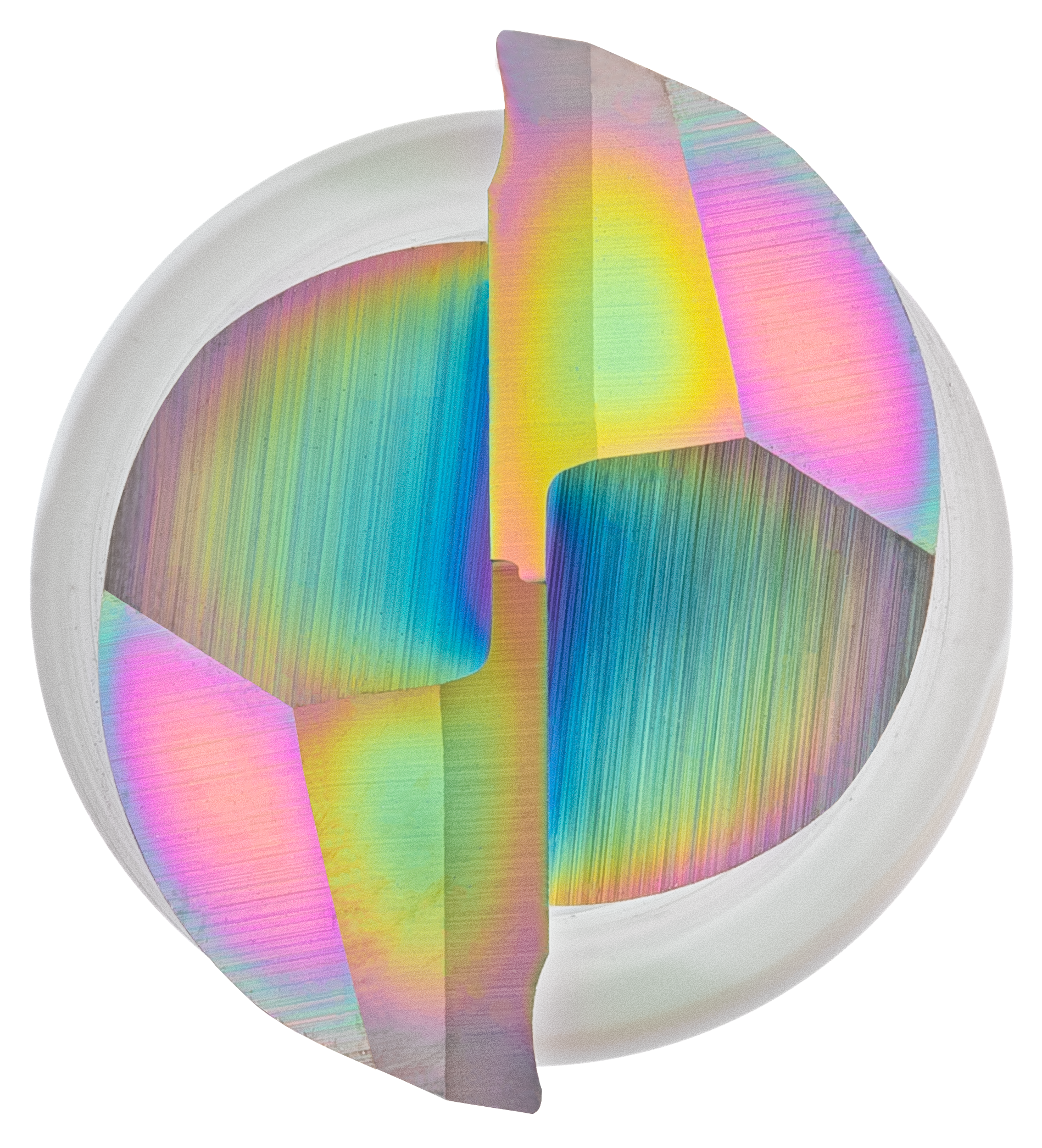

EXN1-M16-0023 | EXN1 Formmaker Micro Z2 R0,05 ASR

Cooling air-cooled dry water min water max
Tolerance d04
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting High Performance Cutting
Applications Multipass milling Trimming Full slot X, Y, Z helical
Features No Weldon Center Cutting Corner radius
  • Optimized face geometry for excellent surfaces and highest dimensional accuracy
  • Defined microbevel for support and stabilization
  • Polished chip space for ideal chip evacuation
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
  • Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
  • Multipass milling of 3D contours
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M16-0023
EXN1-M16-0023
EXN1-M16-0023
EXN1-M16-0023
EXN1-M16-0023

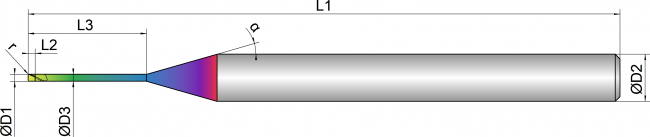

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
0,2X0,5 0.2 0.18 0.2 0.5 50.0 4.0 2 0.05 30 16 orange

0,2X1 0.2 0.18 0.2 1.0 50.0 4.0 2 0.05 30 16 orange

0,2X2 0.2 0.18 0.2 2.0 50.0 4.0 2 0.05 30 16 green

0,2X3 0.2 0.18 0.2 3.0 50.0 4.0 2 0.05 30 16 orange

0,3X1 0.3 0.28 0.3 1.0 50.0 4.0 2 0.05 30 16 orange

0,3X2 0.3 0.28 0.3 2.0 50.0 4.0 2 0.05 30 16 orange

0,3X3 0.3 0.28 0.3 3.0 50.0 4.0 2 0.05 30 16 green

0,3X4 0.3 0.28 0.3 4.0 50.0 4.0 2 0.05 30 16 orange

0,3X6 0.3 0.28 0.3 6.0 50.0 4.0 2 0.05 30 16 orange

0,4X1 0.4 0.38 0.4 1.0 50.0 4.0 2 0.05 30 16 green

0,4X2 0.4 0.38 0.4 2.0 50.0 4.0 2 0.05 30 16 orange

0,4X3 0.4 0.38 0.4 3.0 50.0 4.0 2 0.05 30 16 orange

0,4X4 0.4 0.38 0.4 4.0 50.0 4.0 2 0.05 30 16 orange

0,4X6 0.4 0.38 0.4 6.0 50.0 4.0 2 0.05 30 16 green

0,4X8 0.4 0.38 0.4 8.0 50.0 4.0 2 0.05 30 16 orange

0,5X1 0.5 0.48 0.5 1.0 50.0 4.0 2 0.05 30 16 orange

0,5X2 0.5 0.48 0.5 2.0 50.0 4.0 2 0.05 30 16 green

0,5X3 0.5 0.48 0.5 3.0 50.0 4.0 2 0.05 30 16 green

0,5X4 0.5 0.48 0.5 4.0 50.0 4.0 2 0.05 30 16 orange

0,5X6 0.5 0.48 0.5 6.0 50.0 4.0 2 0.05 30 16 red

0,5X8 0.5 0.48 0.5 8.0 50.0 4.0 2 0.05 30 16 green

0,5X10 0.5 0.48 0.5 10.0 50.0 4.0 2 0.05 30 16 orange

0,6X3 0.6 0.58 0.6 3.0 50.0 4.0 2 0.05 30 16 orange

0,6X4 0.6 0.58 0.6 4.0 50.0 4.0 2 0.05 30 16 orange

0,6X6 0.6 0.58 0.6 6.0 50.0 4.0 2 0.05 30 16 orange

0,6X8 0.6 0.58 0.6 8.0 50.0 4.0 2 0.05 30 16 orange

0,6X10 0.6 0.58 0.6 10.0 50.0 4.0 2 0.05 30 16 orange
