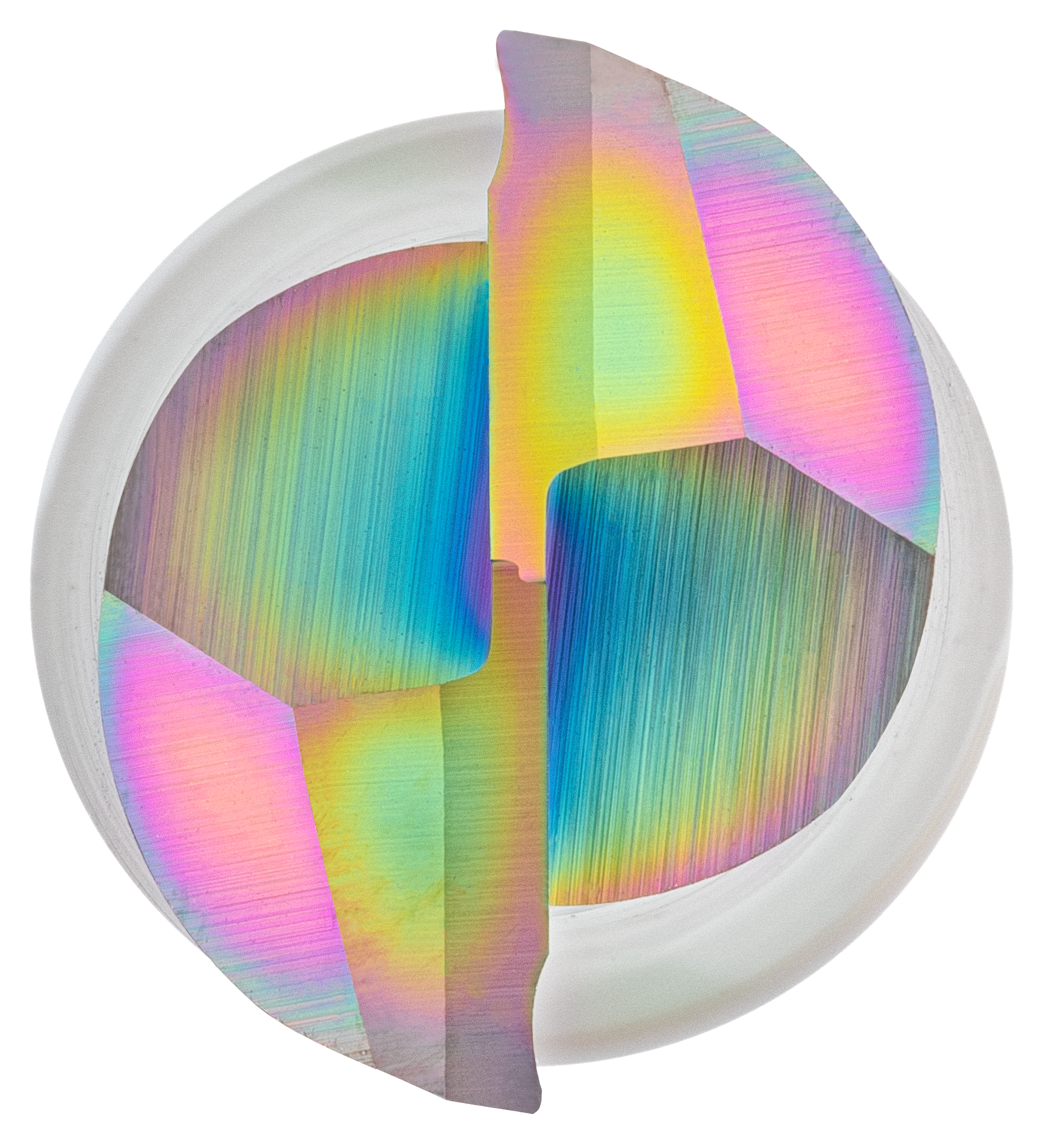

EXN1-M16-0063 | EXN1 Formmaker Micro Z2 R0,1 ASR
Cooling | |
---|---|
Tolerance | d04 |
Coating | AlphaSlide Rainbow |
Downloads | Catalog page & Cutting data |
Strategy | |
---|---|
Applications | |
Features |
- Optimized face geometry for excellent surfaces and highest dimensional accuracy
- Defined microbevel for support and stabilization
- Polished chip space for ideal chip evacuation
- Tolerance D1: -0.001/-0.006 mm
- Tolerance D3: 0/-0.02 mm
- Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
- Multipass milling of 3D contours
Suitability for | |
---|---|
Roughing | Finishing |
|
|
EXN1-M16-0063
|

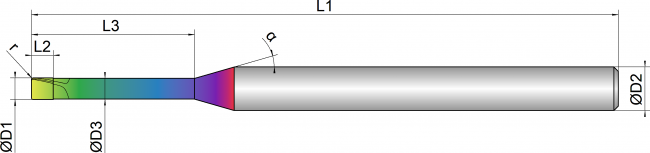

D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
0,4X1 | 0.4 | 0.38 | 0.4 | 1.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,4X2 | 0.4 | 0.38 | 0.4 | 2.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,4X3 | 0.4 | 0.38 | 0.4 | 3.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,4X4 | 0.4 | 0.38 | 0.4 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,4X6 | 0.4 | 0.38 | 0.4 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,4X8 | 0.4 | 0.38 | 0.4 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X1 | 0.5 | 0.48 | 0.5 | 1.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X2 | 0.5 | 0.48 | 0.5 | 2.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X3 | 0.5 | 0.48 | 0.5 | 3.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X4 | 0.5 | 0.48 | 0.5 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X6 | 0.5 | 0.48 | 0.5 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X8 | 0.5 | 0.48 | 0.5 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,5X10 | 0.5 | 0.48 | 0.5 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,6X3 | 0.6 | 0.58 | 0.6 | 3.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,6X4 | 0.6 | 0.58 | 0.6 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,6X6 | 0.6 | 0.58 | 0.6 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,6X8 | 0.6 | 0.58 | 0.6 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,6X10 | 0.6 | 0.58 | 0.6 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,8X2 | 0.8 | 0.78 | 0.8 | 2.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,8X4 | 0.8 | 0.78 | 0.8 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,8X6 | 0.8 | 0.78 | 0.8 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,8X8 | 0.8 | 0.78 | 0.8 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,8X10 | 0.8 | 0.78 | 0.8 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
0,8X12 | 0.8 | 0.78 | 0.8 | 12.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X2 | 1.0 | 0.95 | 1.0 | 2.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X3 | 1.0 | 0.95 | 1.0 | 3.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X4 | 1.0 | 0.95 | 1.0 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X5 | 1.0 | 0.95 | 1.0 | 5.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X6 | 1.0 | 0.95 | 1.0 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X8 | 1.0 | 0.95 | 1.0 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X10 | 1.0 | 0.95 | 1.0 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X12 | 1.0 | 0.95 | 1.0 | 12.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X15 | 1.0 | 0.95 | 1.0 | 15.0 | 60.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X20 | 1.0 | 0.95 | 1.0 | 20.0 | 60.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X25 | 1.0 | 0.95 | 1.0 | 25.0 | 70.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1X30 | 1.0 | 0.95 | 1.0 | 30.0 | 70.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,2X5 | 1.2 | 1.14 | 1.2 | 5.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,2X10 | 1.2 | 1.14 | 1.2 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,2X15 | 1.2 | 1.14 | 1.2 | 15.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,2X20 | 1.2 | 1.14 | 1.2 | 20.0 | 60.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X4 | 1.5 | 1.44 | 1.5 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X6 | 1.5 | 1.44 | 1.5 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X8 | 1.5 | 1.44 | 1.5 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X10 | 1.5 | 1.44 | 1.5 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X12 | 1.5 | 1.44 | 1.5 | 12.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X15 | 1.5 | 1.44 | 1.5 | 15.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X20 | 1.5 | 1.44 | 1.5 | 20.0 | 60.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X25 | 1.5 | 1.44 | 1.5 | 25.0 | 60.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,5X30 | 1.5 | 1.44 | 1.5 | 30.0 | 70.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,8X8 | 1.8 | 1.74 | 1.8 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,8X10 | 1.8 | 1.74 | 1.8 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,8X15 | 1.8 | 1.74 | 1.8 | 15.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
1,8X20 | 1.8 | 1.74 | 1.8 | 20.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X4 | 2.0 | 1.91 | 2.0 | 4.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X6 | 2.0 | 1.91 | 2.0 | 6.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X8 | 2.0 | 1.91 | 2.0 | 8.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X10 | 2.0 | 1.91 | 2.0 | 10.0 | 50.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X12 | 2.0 | 1.91 | 2.0 | 12.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X15 | 2.0 | 1.91 | 2.0 | 15.0 | 55.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X20 | 2.0 | 1.91 | 2.0 | 20.0 | 60.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X25 | 2.0 | 1.91 | 2.0 | 25.0 | 70.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X30 | 2.0 | 1.91 | 2.0 | 30.0 | 70.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X35 | 2.0 | 1.91 | 2.0 | 35.0 | 80.0 | 4.0 | 2 | 0.10 | 30 | 16 | ||
2X40 | 2.0 | 1.91 | 2.0 | 40.0 | 80.0 | 4.0 | 2 | 0.10 | 30 | 16 |
