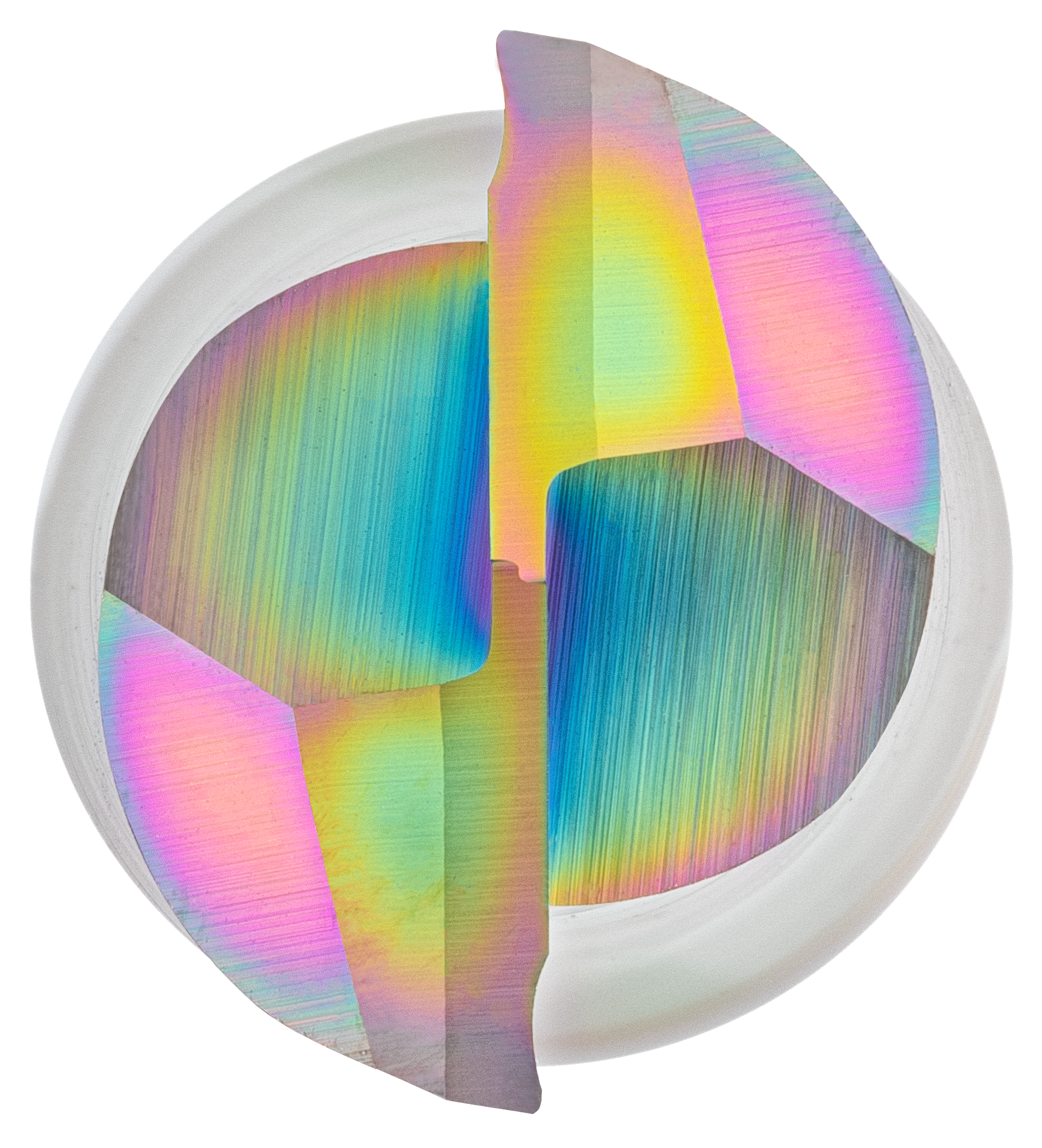

EXN1-M16-0103 | EXN1 Formmaker Micro Z2 R0,2 ASR

Cooling air-cooled dry water min water max
Tolerance d04
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Multipass milling Trimming Full slot X, Y, Z helical
Features No Weldon Center Cutting
  • Optimized face geometry for excellent surfaces and highest dimensional accuracy
  • Defined microbevel for support and stabilization
  • Polished chip space for ideal chip evacuation
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
  • Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
  • Multipass milling of 3D contours
Suitability for
Roughing Finishing


EXN1-M16-0103
EXN1-M16-0103
EXN1-M16-0103
EXN1-M16-0103
EXN1-M16-0103

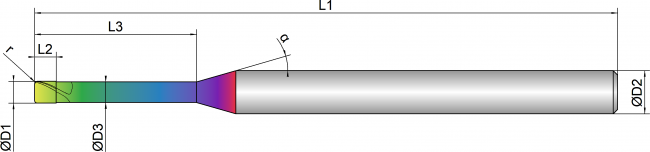

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
0,8X2 0.8 0.78 0.8 2.0 50.0 4.0 2 0.20 30 16 green
0,8X4 0.8 0.78 0.8 4.0 50.0 4.0 2 0.20 30 16 green
0,8X6 0.8 0.78 0.8 6.0 50.0 4.0 2 0.20 30 16 green
0,8X8 0.8 0.78 0.8 8.0 50.0 4.0 2 0.20 30 16 green
0,8X10 0.8 0.78 0.8 10.0 50.0 4.0 2 0.20 30 16 green
0,8X12 0.8 0.78 0.8 12.0 50.0 4.0 2 0.20 30 16 green
1X2 1.0 0.95 1.0 2.0 50.0 4.0 2 0.20 30 16 green
1X3 1.0 0.95 1.0 3.0 50.0 4.0 2 0.20 30 16 green
1X4 1.0 0.95 1.0 4.0 50.0 4.0 2 0.20 30 16 green
1X5 1.0 0.95 1.0 5.0 50.0 4.0 2 0.20 30 16 orange
1X6 1.0 0.95 1.0 6.0 50.0 4.0 2 0.20 30 16 green
1X8 1.0 0.95 1.0 8.0 50.0 4.0 2 0.20 30 16 green
1X10 1.0 0.95 1.0 10.0 50.0 4.0 2 0.20 30 16 green
1X12 1.0 0.95 1.0 12.0 54.0 4.0 2 0.20 30 16 green
1X15 1.0 0.95 1.0 15.0 60.0 4.0 2 0.20 30 16 green
1X20 1.0 0.95 1.0 20.0 60.0 4.0 2 0.20 30 16 green
1X25 1.0 0.95 1.0 25.0 70.0 4.0 2 0.20 30 16 green
1X30 1.0 0.95 1.0 30.0 70.0 4.0 2 0.20 30 16 orange
1,2X5 1.2 1.14 1.2 5.0 50.0 4.0 2 0.20 30 16 green
1,2X10 1.2 1.14 1.2 10.0 50.0 4.0 2 0.20 30 16 green
1,2X15 1.2 1.14 1.2 15.0 54.0 4.0 2 0.20 30 16 orange
1,2X20 1.2 1.14 1.2 20.0 60.0 4.0 2 0.20 30 16 orange
1,5X4 1.5 1.44 1.5 4.0 50.0 4.0 2 0.20 30 16 green
1,5X6 1.5 1.44 1.5 6.0 50.0 4.0 2 0.20 30 16 green
1,5X8 1.5 1.44 1.5 8.0 50.0 4.0 2 0.20 30 16 green
1,5X10 1.5 1.44 1.5 10.0 50.0 4.0 2 0.20 30 16 green
1,5X12 1.5 1.44 1.5 12.0 54.0 4.0 2 0.20 30 16 green
1,5X15 1.5 1.44 1.5 15.0 54.0 4.0 2 0.20 30 16 green
1,5X20 1.5 1.44 1.5 20.0 60.0 4.0 2 0.20 30 16 green
1,5X25 1.5 1.44 1.5 25.0 60.0 4.0 2 0.20 30 16 green
1,5X30 1.5 1.44 1.5 30.0 70.0 4.0 2 0.20 30 16 orange
1,8X8 1.8 1.74 1.8 8.0 50.0 4.0 2 0.20 30 16 green
1,8X10 1.8 1.74 1.8 10.0 50.0 4.0 2 0.20 30 16 green
1,8X15 1.8 1.74 1.8 15.0 50.0 4.0 2 0.20 30 16 green
1,8X20 1.8 1.74 1.8 20.0 54.0 4.0 2 0.20 30 16 green
2X4 2.0 1.91 2.0 4.0 50.0 4.0 2 0.20 30 16 green
2X6 2.0 1.91 2.0 6.0 50.0 4.0 2 0.20 30 16 orange
2X8 2.0 1.91 2.0 8.0 50.0 4.0 2 0.20 30 16 orange
2X10 2.0 1.91 2.0 10.0 50.0 4.0 2 0.20 30 16 orange
2X12 2.0 1.91 2.0 12.0 54.0 4.0 2 0.20 30 16 orange
2X15 2.0 1.91 2.0 15.0 54.0 4.0 2 0.20 30 16 green
2X20 2.0 1.91 2.0 20.0 60.0 4.0 2 0.20 30 16 green
2X25 2.0 1.91 2.0 25.0 70.0 4.0 2 0.20 30 16 orange
2X30 2.0 1.91 2.0 30.0 70.0 4.0 2 0.20 30 16 green
2X35 2.0 1.91 2.0 35.0 80.0 4.0 2 0.20 30 16 green
2X40 2.0 1.91 2.0 40.0 80.0 4.0 2 0.20 30 16 green
2,5X15 2.5 2.41 2.5 15.0 54.0 4.0 2 0.20 30 16 green
2,5X20 2.5 2.41 2.5 20.0 54.0 4.0 2 0.20 30 16 green
2,5X25 2.5 2.41 2.5 25.0 60.0 4.0 2 0.20 30 16 orange
2,5X30 2.5 2.41 2.5 30.0 70.0 4.0 2 0.20 30 16 orange
3X6 3.0 2.91 4.5 6.0 50.0 4.0 2 0.20 30 16 orange
3X8 3.0 2.91 4.5 8.0 50.0 4.0 2 0.20 30 16 green
3X10 3.0 2.91 4.5 10.0 50.0 4.0 2 0.20 30 16 green
3X12 3.0 2.91 4.5 12.0 50.0 4.0 2 0.20 30 16 green
3X15 3.0 2.91 4.5 15.0 54.0 4.0 2 0.20 30 16 orange
3X20 3.0 2.91 4.5 20.0 54.0 4.0 2 0.20 30 16 green
3X25 3.0 2.91 4.5 25.0 60.0 4.0 2 0.20 30 16 orange
3X30 3.0 2.91 4.5 30.0 70.0 4.0 2 0.20 30 16 green
3X35 3.0 2.91 4.5 35.0 80.0 4.0 2 0.20 30 16 green
3X40 3.0 2.91 4.5 40.0 80.0 4.0 2 0.20 30 16 green
3X45 3.0 2.91 4.5 45.0 90.0 4.0 2 0.20 30 16 green
