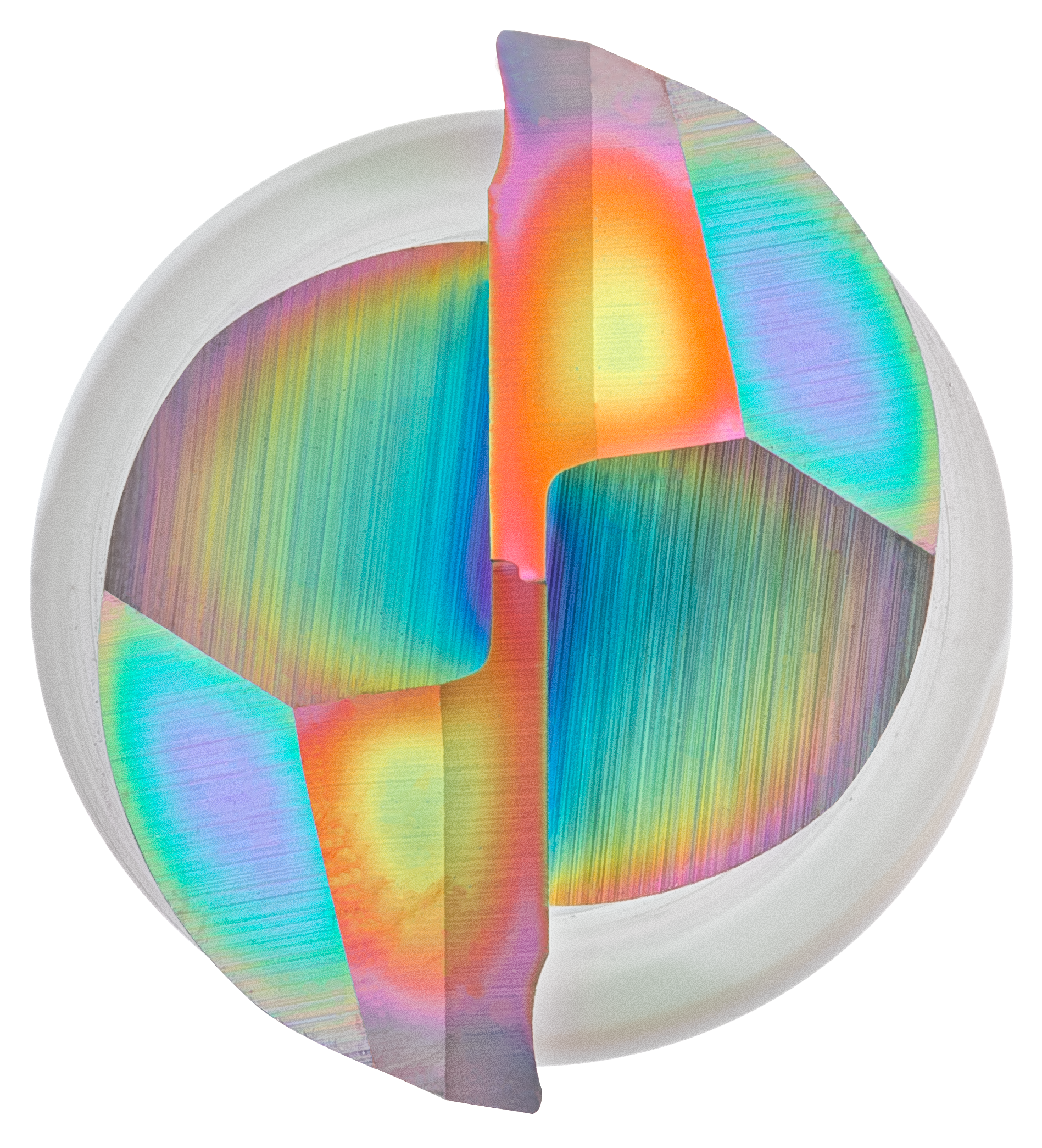

EXN1-M16-0143 | EXN1 Formmaker Micro Z2 R0,3 ASR

Cooling air-cooled dry water min water max
Tolerance d04
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data
Strategy High Speed Cutting High Performance Cutting
Applications Multipass milling Trimming Full slot X, Y, Z helical
Features No Weldon Center Cutting Corner radius
  • Optimized face geometry for excellent surfaces and highest dimensional accuracy
  • Defined microbevel for support and stabilization
  • Polished chip space for ideal chip evacuation
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
  • Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
  • Multipass milling of 3D contours
Suitability for
Roughing Finishing


Products for processing Al Product series "Non-ferrous materials" at a glance
Products for processing Copper Product series "Non-ferrous materials" at a glance
Products for processing Mg Product series "Non-ferrous materials" at a glance
Products for processing Plastics Product series "Non-ferrous materials" at a glance
EXN1-M16-0143
EXN1-M16-0143
EXN1-M16-0143
EXN1-M16-0143
EXN1-M16-0143
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
1X2 1.0 0.95 1.0 2.0 50.0 4.0 2 0.30 30 16 green

1X3 1.0 0.95 1.0 3.0 50.0 4.0 2 0.30 30 16 green

1X4 1.0 0.95 1.0 4.0 50.0 4.0 2 0.30 30 16 green

1X5 1.0 0.95 1.0 5.0 50.0 4.0 2 0.30 30 16 green

1X6 1.0 0.95 1.0 6.0 50.0 4.0 2 0.30 30 16 green

1X8 1.0 0.95 1.0 8.0 50.0 4.0 2 0.30 30 16 green

1X10 1.0 0.95 1.0 10.0 50.0 4.0 2 0.30 30 16 green

1X12 1.0 0.95 1.0 12.0 55.0 4.0 2 0.30 30 16 orange

1X15 1.0 0.95 1.0 15.0 60.0 4.0 2 0.30 30 16 green

1X20 1.0 0.95 1.0 20.0 60.0 4.0 2 0.30 30 16 green

1X25 1.0 0.95 1.0 25.0 70.0 4.0 2 0.30 30 16 green

1X30 1.0 0.95 1.0 30.0 70.0 4.0 2 0.30 30 16 green

1,2X5 1.2 1.14 1.2 5.0 50.0 4.0 2 0.30 30 16 green

1,2X10 1.2 1.14 1.2 10.0 50.0 4.0 2 0.30 30 16 green

1,2X15 1.2 1.14 1.2 15.0 55.0 4.0 2 0.30 30 16 green

1,2X20 1.2 1.14 1.2 20.0 60.0 4.0 2 0.30 30 16 green

1,5X4 1.5 1.44 1.5 4.0 50.0 4.0 2 0.30 30 16 orange

1,5X6 1.5 1.44 1.5 6.0 50.0 4.0 2 0.30 30 16 green

1,5X8 1.5 1.44 1.5 8.0 50.0 4.0 2 0.30 30 16 green

1,5X10 1.5 1.44 1.5 10.0 50.0 4.0 2 0.30 30 16 green

1,5X12 1.5 1.44 1.5 12.0 55.0 4.0 2 0.30 30 16 green

1,5X15 1.5 1.44 1.5 15.0 55.0 4.0 2 0.30 30 16 orange

1,5X20 1.5 1.44 1.5 20.0 60.0 4.0 2 0.30 30 16 green

1,5X25 1.5 1.44 1.5 25.0 60.0 4.0 2 0.30 30 16 orange

1,5X30 1.5 1.44 1.5 30.0 70.0 4.0 2 0.30 30 16 green

1,8X8 1.8 1.74 1.8 8.0 50.0 4.0 2 0.30 30 16 green

1,8X10 1.8 1.74 1.8 10.0 50.0 4.0 2 0.30 30 16 green

1,8X15 1.8 1.74 1.8 15.0 50.0 4.0 2 0.30 30 16 green

1,8X20 1.8 1.74 1.8 20.0 55.0 4.0 2 0.30 30 16 green

2X4 2.0 1.91 2.0 4.0 50.0 4.0 2 0.30 30 16 green

2X6 2.0 1.91 2.0 6.0 50.0 4.0 2 0.30 30 16 orange

2X8 2.0 1.91 2.0 8.0 50.0 4.0 2 0.30 30 16 orange

2X10 2.0 1.91 2.0 10.0 50.0 4.0 2 0.30 30 16 green

2X12 2.0 1.91 2.0 12.0 55.0 4.0 2 0.30 30 16 green

2X15 2.0 1.91 2.0 15.0 55.0 4.0 2 0.30 30 16 green

2X20 2.0 1.91 2.0 20.0 60.0 4.0 2 0.30 30 16 orange

2X25 2.0 1.91 2.0 25.0 70.0 4.0 2 0.30 30 16 green

2X30 2.0 1.91 2.0 30.0 70.0 4.0 2 0.30 30 16 orange

2X35 2.0 1.91 2.0 35.0 80.0 4.0 2 0.30 30 16 orange

2X40 2.0 1.91 2.0 40.0 80.0 4.0 2 0.30 30 16 green

2,5X15 2.5 2.41 2.5 15.0 55.0 4.0 2 0.30 30 16 orange

2,5X20 2.5 2.41 2.5 20.0 55.0 4.0 2 0.30 30 16 green

2,5X25 2.5 2.41 2.5 25.0 60.0 4.0 2 0.30 30 16 green

2,5X30 2.5 2.41 2.5 30.0 70.0 4.0 2 0.30 30 16 green

3X6 3.0 2.91 4.5 6.0 50.0 4.0 2 0.30 30 16 green

3X8 3.0 2.91 4.5 8.0 50.0 4.0 2 0.30 30 16 orange

3X10 3.0 2.91 4.5 10.0 50.0 4.0 2 0.30 30 16 orange

3X12 3.0 2.91 4.5 12.0 50.0 4.0 2 0.30 30 16 orange

3X15 3.0 2.91 4.5 15.0 55.0 4.0 2 0.30 30 16 orange

3X20 3.0 2.91 4.5 20.0 55.0 4.0 2 0.30 30 16 green

3X25 3.0 2.91 4.5 25.0 60.0 4.0 2 0.30 30 16 green

3X30 3.0 2.91 4.5 30.0 70.0 4.0 2 0.30 30 16 orange

3X35 3.0 2.91 4.5 35.0 80.0 4.0 2 0.30 30 16 green

3X40 3.0 2.91 4.5 40.0 80.0 4.0 2 0.30 30 16 green

3X45 3.0 2.91 4.5 45.0 90.0 4.0 2 0.30 30 16 green
