EXN1-M16-0183 | EXN1 Formmaker Micro Z2 R0,5 ASR
| Cooling |
|
|---|---|
| Tolerance | d04 |
| Coating | AlphaSlide Rainbow |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|

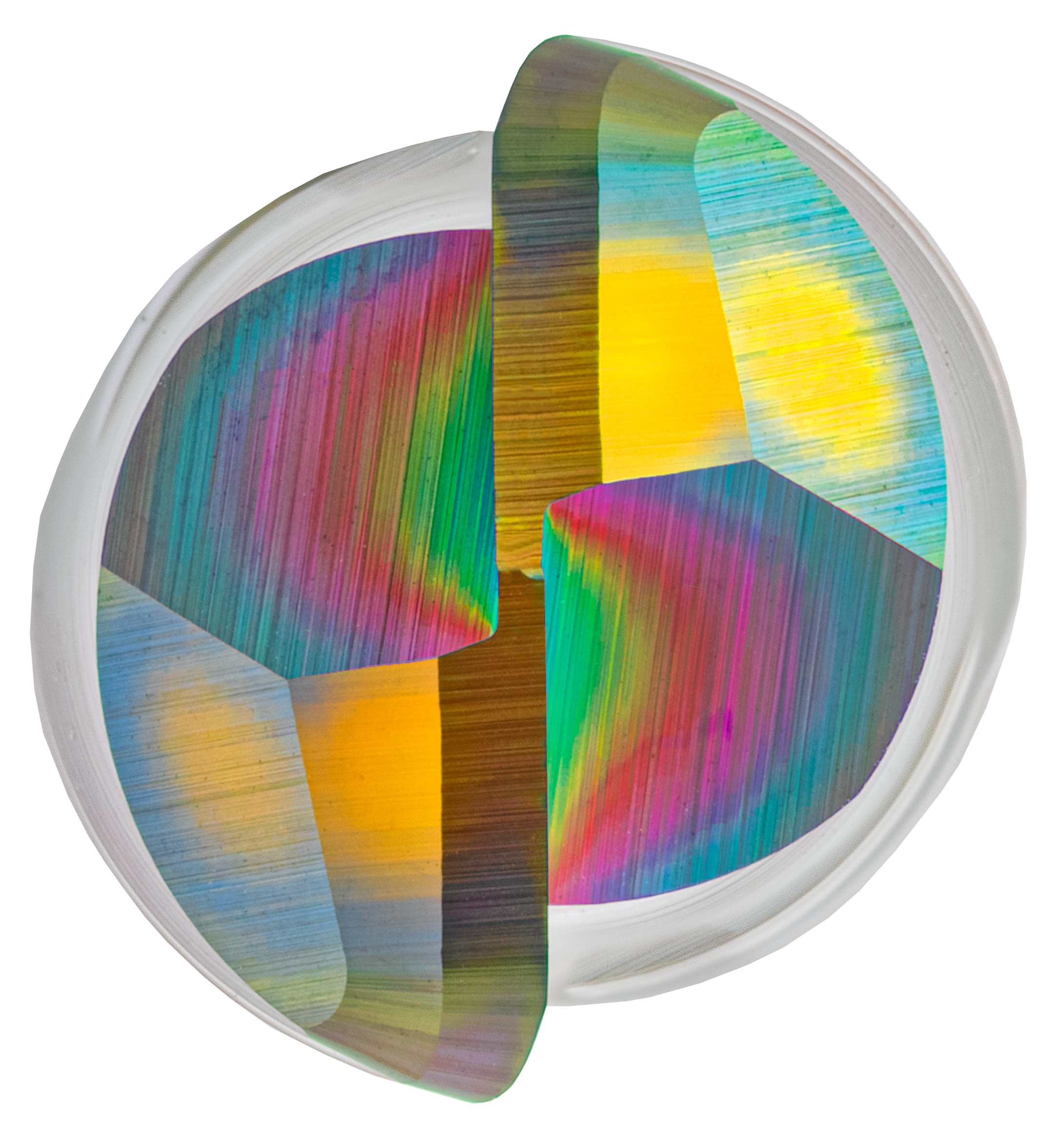

- Optimized face geometry for excellent surfaces and highest dimensional accuracy
- Defined microbevel for support and stabilization
- Polished chip space for ideal chip evacuation
- Tolerance D1: -0.001/-0.006 mm
- Tolerance D3: 0/-0.02 mm
- Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
- Multipass milling of 3D contours
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

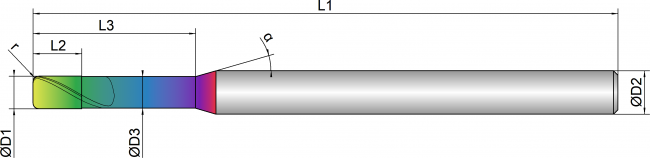

EXN1-M16-0183
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1,5X4 | 1.5 | 1.44 | 1.5 | 4.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X6 | 1.5 | 1.44 | 1.5 | 6.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X8 | 1.5 | 1.44 | 1.5 | 8.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X10 | 1.5 | 1.44 | 1.5 | 10.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X12 | 1.5 | 1.44 | 1.5 | 12.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X15 | 1.5 | 1.44 | 1.5 | 15.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X20 | 1.5 | 1.44 | 1.5 | 20.0 | 60.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X25 | 1.5 | 1.44 | 1.5 | 25.0 | 60.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,5X30 | 1.5 | 1.44 | 1.5 | 30.0 | 70.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,8X8 | 1.8 | 1.74 | 1.8 | 8.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,8X10 | 1.8 | 1.74 | 1.8 | 10.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,8X15 | 1.8 | 1.74 | 1.8 | 15.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 1,8X20 | 1.8 | 1.74 | 1.8 | 20.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X4 | 2.0 | 1.91 | 2.0 | 4.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X6 | 2.0 | 1.91 | 2.0 | 6.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X8 | 2.0 | 1.91 | 2.0 | 8.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X10 | 2.0 | 1.91 | 2.0 | 10.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X12 | 2.0 | 1.91 | 2.0 | 12.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X15 | 2.0 | 1.91 | 2.0 | 15.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X20 | 2.0 | 1.91 | 2.0 | 20.0 | 60.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X25 | 2.0 | 1.91 | 2.0 | 25.0 | 70.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X30 | 2.0 | 1.91 | 2.0 | 30.0 | 70.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X35 | 2.0 | 1.91 | 2.0 | 35.0 | 80.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2X40 | 2.0 | 1.91 | 2.0 | 40.0 | 80.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2,5X12 | 2.5 | 2.41 | 2.5 | 12.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2,5X15 | 2.5 | 2.41 | 2.5 | 15.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2,5X20 | 2.5 | 2.41 | 2.5 | 20.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2,5X25 | 2.5 | 2.41 | 2.5 | 25.0 | 60.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 2,5X30 | 2.5 | 2.41 | 2.5 | 30.0 | 70.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X6 | 3.0 | 2.91 | 4.5 | 6.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X8 | 3.0 | 2.91 | 4.5 | 8.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X10 | 3.0 | 2.91 | 4.5 | 10.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X12 | 3.0 | 2.91 | 4.5 | 12.0 | 50.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X15 | 3.0 | 2.91 | 4.5 | 15.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X20 | 3.0 | 2.91 | 4.5 | 20.0 | 55.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X25 | 3.0 | 2.91 | 4.5 | 25.0 | 60.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X30 | 3.0 | 2.91 | 4.5 | 30.0 | 70.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X35 | 3.0 | 2.91 | 4.5 | 35.0 | 80.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X40 | 3.0 | 2.91 | 4.5 | 40.0 | 80.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
|
| 3X45 | 3.0 | 2.91 | 4.5 | 45.0 | 90.0 | 4.0 | 2 | 0.50 | 30 | 16 |
|
