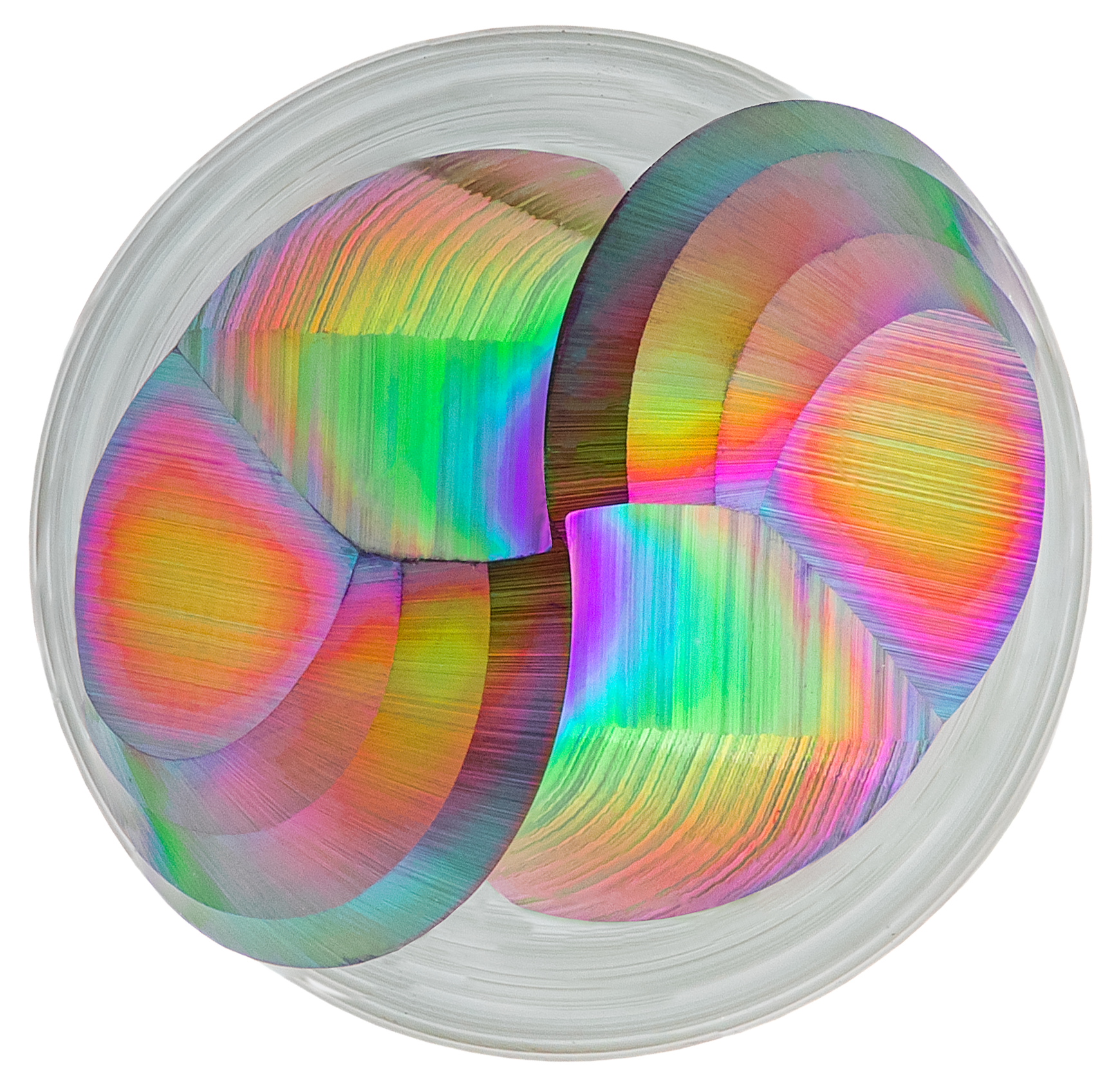

EXN1-M17-0003 | EXN1 Rowmaker Micro Z2 ASR

Cooling air-cooled dry water min water max
Tolerance d04
Coating AlphaSlide Rainbow
Downloads Catalog page & Cutting data

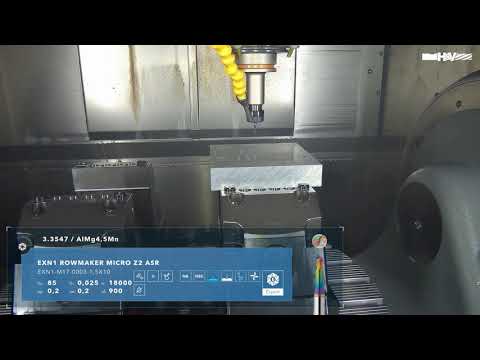

Strategy High Speed Cutting
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting
  • Optimized face geometry for excellent surfaces and highest dimensional accuracy
  • Defined microbevel for support and stabilization
  • Polished chip space for ideal chip evacuation
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
  • Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
Suitability for
Roughing Finishing


EXN1-M17-0003
EXN1-M17-0003
EXN1-M17-0003
EXN1-M17-0003
EXN1-M17-0003

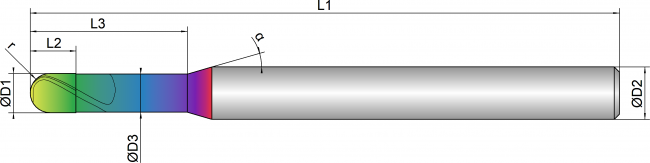

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
0,1X0,3 0.1 0.08 0.1 0.3 45.0 4.0 2 0.05 30 16 orange
0,1X0,5 0.1 0.08 0.1 0.5 45.0 4.0 2 0.05 30 16 orange
0,1X1 0.1 0.08 0.1 1.0 45.0 4.0 2 0.05 30 16 orange
0,2X0,5 0.2 0.17 0.2 0.5 45.0 4.0 2 0.10 30 16 orange
0,2X1 0.2 0.17 0.2 1.0 45.0 4.0 2 0.10 30 16 orange
0,2X2 0.2 0.17 0.2 2.0 45.0 4.0 2 0.10 30 16 orange
0,2X3 0.2 0.17 0.2 3.0 45.0 4.0 2 0.10 30 16 orange
0,3X0,5 0.3 0.27 0.2 0.5 45.0 4.0 2 0.15 30 16 green
0,3X1 0.3 0.27 0.2 1.0 45.0 4.0 2 0.15 30 16 green
0,3X2 0.3 0.27 0.2 2.0 45.0 4.0 2 0.15 30 16 green
0,3X3 0.3 0.27 0.2 3.0 45.0 4.0 2 0.15 30 16 orange
0,3X4 0.3 0.27 0.2 4.0 45.0 4.0 2 0.15 30 16 green
0,3X6 0.3 0.27 0.2 6.0 45.0 4.0 2 0.15 30 16 orange
0,4X1 0.4 0.37 0.3 1.0 45.0 4.0 2 0.20 30 16 orange
0,4X2 0.4 0.37 0.3 2.0 45.0 4.0 2 0.20 30 16 orange
0,4X3 0.4 0.37 0.3 3.0 45.0 4.0 2 0.20 30 16 orange
0,4X4 0.4 0.37 0.3 4.0 45.0 4.0 2 0.20 30 16 red
0,4X6 0.4 0.37 0.3 6.0 45.0 4.0 2 0.20 30 16 green
0,4X8 0.4 0.37 0.3 8.0 45.0 4.0 2 0.20 30 16 green
0,5X1 0.5 0.47 0.4 1.0 45.0 4.0 2 0.25 30 16 orange
0,5X1,5 0.5 0.47 0.4 1.5 45.0 4.0 2 0.25 30 16 green
0,5X2 0.5 0.47 0.4 2.0 45.0 4.0 2 0.25 30 16 green
0,5X3 0.5 0.47 0.4 3.0 45.0 4.0 2 0.25 30 16 orange
0,5X4 0.5 0.47 0.4 4.0 45.0 4.0 2 0.25 30 16 green
0,5X6 0.5 0.47 0.4 6.0 45.0 4.0 2 0.25 30 16 green
0,5X8 0.5 0.47 0.4 8.0 45.0 4.0 2 0.25 30 16 green
0,6X2 0.6 0.57 0.5 2.0 45.0 4.0 2 0.30 30 16 green
0,6X3 0.6 0.57 0.5 3.0 45.0 4.0 2 0.30 30 16 green
0,6X4 0.6 0.57 0.5 4.0 45.0 4.0 2 0.30 30 16 green
0,6X6 0.6 0.57 0.5 6.0 45.0 4.0 2 0.30 30 16 green
0,6X8 0.6 0.57 0.5 8.0 45.0 4.0 2 0.30 30 16 green
0,8X2 0.8 0.77 0.6 2.0 45.0 4.0 2 0.40 30 16 orange
0,8X3 0.8 0.77 0.6 3.0 45.0 4.0 2 0.40 30 16 green
0,8X4 0.8 0.77 0.6 4.0 45.0 4.0 2 0.40 30 16 green
0,8X6 0.8 0.77 0.6 6.0 45.0 4.0 2 0.40 30 16 green
0,8X8 0.8 0.77 0.6 8.0 45.0 4.0 2 0.40 30 16 green
1X2 1.0 0.96 0.8 2.0 45.0 4.0 2 0.50 30 16 green
1X3 1.0 0.96 0.8 3.0 45.0 4.0 2 0.50 30 16 orange
1X4 1.0 0.96 0.8 4.0 45.0 4.0 2 0.50 30 16 green
1X5 1.0 0.96 0.8 5.0 45.0 4.0 2 0.50 30 16 orange
1X6 1.0 0.96 0.8 6.0 45.0 4.0 2 0.50 30 16 green
1X8 1.0 0.96 0.8 8.0 45.0 4.0 2 0.50 30 16 red
1X10 1.0 0.96 0.8 10.0 50.0 4.0 2 0.50 30 16 orange
1X12 1.0 0.96 0.8 12.0 50.0 4.0 2 0.50 30 16 green
1,2X3 1.2 1.16 1.0 3.0 45.0 4.0 2 0.60 30 16 green
1,2X4 1.2 1.16 1.0 4.0 45.0 4.0 2 0.60 30 16 green
1,2X6 1.2 1.16 1.0 6.0 45.0 4.0 2 0.60 30 16 green
1,2X8 1.2 1.16 1.0 8.0 45.0 4.0 2 0.60 30 16 green
1,2X10 1.2 1.16 1.0 10.0 45.0 4.0 2 0.60 30 16 green
1,2X12 1.2 1.16 1.0 12.0 50.0 4.0 2 0.60 30 16 orange
1,2X20 1.2 1.16 1.0 20.0 54.0 4.0 2 0.60 30 16 green
1,5X3 1.5 1.44 1.2 3.0 45.0 4.0 2 0.75 30 16 orange
1,5X4 1.5 1.44 1.2 4.0 45.0 4.0 2 0.75 30 16 green
1,5X6 1.5 1.44 1.2 6.0 45.0 4.0 2 0.75 30 16 green
1,5X8 1.5 1.44 1.2 8.0 45.0 4.0 2 0.75 30 16 orange
1,5X10 1.5 1.44 1.2 10.0 45.0 4.0 2 0.75 30 16 green
1,5X12 1.5 1.44 1.2 12.0 50.0 4.0 2 0.75 30 16 green
1,8X8 1.8 1.74 1.4 8.0 45.0 4.0 2 0.90 30 16 green
1,8X10 1.8 1.74 1.4 10.0 45.0 4.0 2 0.90 30 16 green
1,8X12 1.8 1.74 1.4 12.0 50.0 4.0 2 0.90 30 16 green
2X4 2.0 1.94 1.6 4.0 45.0 4.0 2 1.00 30 16 green
2X6 2.0 1.94 1.6 6.0 45.0 4.0 2 1.00 30 16 orange
2X8 2.0 1.94 1.6 8.0 45.0 4.0 2 1.00 30 16 orange
2X10 2.0 1.94 1.6 10.0 45.0 4.0 2 1.00 30 16 orange
2X12 2.0 1.94 1.6 12.0 45.0 4.0 2 1.00 30 16 green
3X6 3.0 2.92 3.5 6.0 45.0 4.0 2 1.50 30 16 orange
3X8 3.0 2.92 3.5 8.0 45.0 4.0 2 1.50 30 16 green
3X10 3.0 2.92 3.5 10.0 45.0 4.0 2 1.50 30 16 green
3X12 3.0 2.92 3.5 12.0 45.0 4.0 2 1.50 30 16 orange
