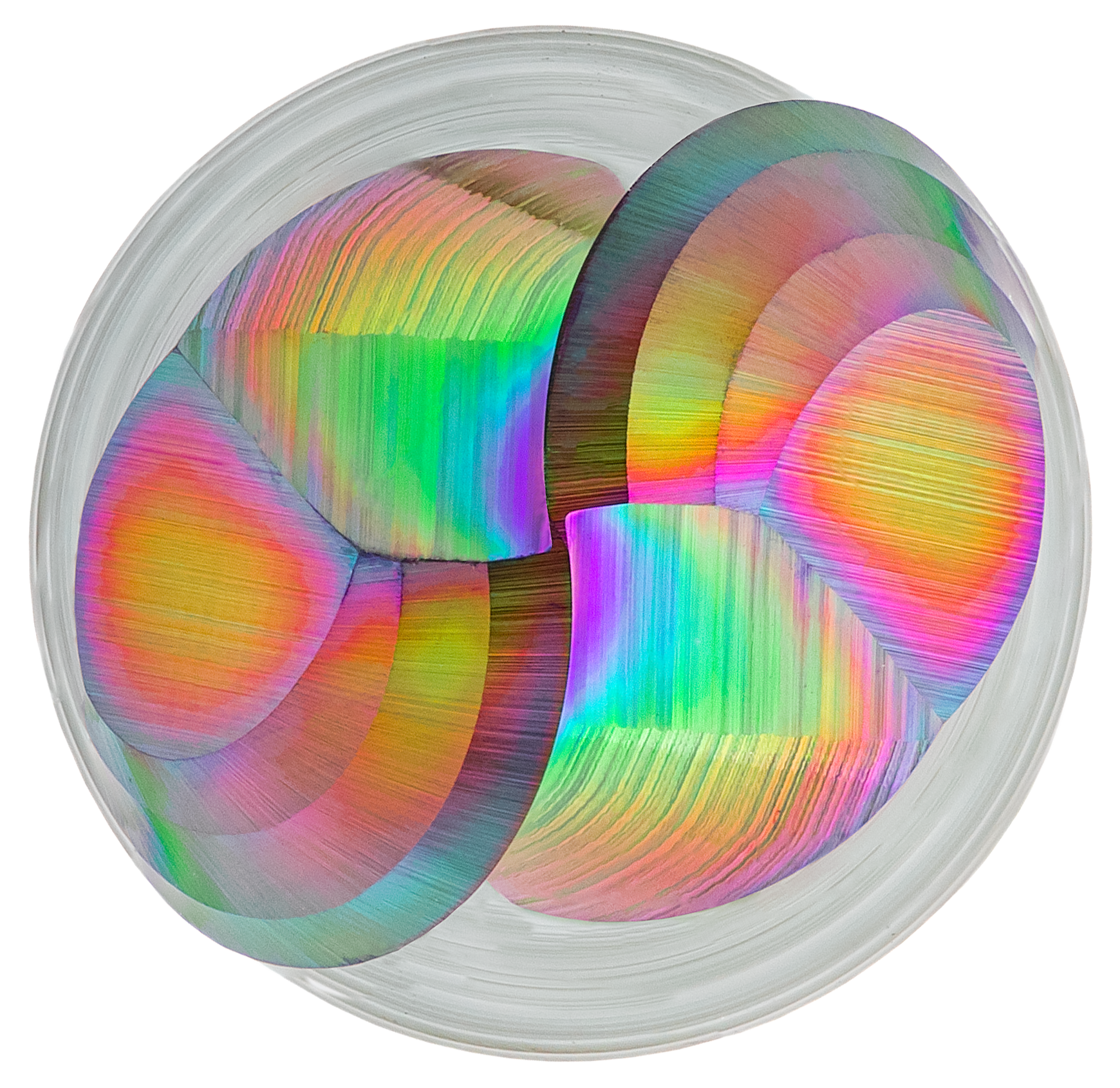

EXN1-M17-0013 | EXN1 Rowmaker Micro Z2 long ASR
| Kühlung |
|
|---|---|
| Toleranz | d04 |
| Beschichtung | AlphaSlide Rainbow |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Optimierte Stirngeometrie für hervorragende Oberflächen und höchste Formgenauigkeit
- Definierte Mikrofase zur Abstützung und Stabilisierung
- Polierte Spanräume für ideale Spanevakuierung
- Toleranz D1: -0,001/-0,006 mm
- Toleranz D3: 0/-0,02 mm
- Radiustoleranz r: 0/-0,003 mm (gemessen von 0-90°)
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

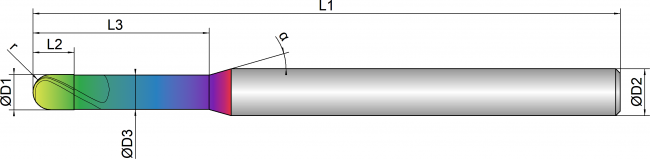

EXN1-M17-0013
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0,5X10 | 0,5 | 0,47 | 0,4 | 10,0 | 50,0 | 4,0 | 2 | 0,25 | 30 | 16 |
|
|
| 0,6X10 | 0,6 | 0,57 | 0,48 | 10,0 | 50,0 | 4,0 | 2 | 0,30 | 30 | 16 |
|
|
| 0,8X10 | 0,8 | 0,77 | 0,64 | 10,0 | 50,0 | 4,0 | 2 | 0,40 | 30 | 16 |
|
|
| 0,8X12 | 0,8 | 0,77 | 0,64 | 12,0 | 50,0 | 4,0 | 2 | 0,40 | 30 | 16 |
|
|
| 1X15 | 1,0 | 0,96 | 0,8 | 15,0 | 50,0 | 4,0 | 2 | 0,50 | 30 | 16 |
|
|
| 1X20 | 1,0 | 0,96 | 0,8 | 20,0 | 60,0 | 4,0 | 2 | 0,50 | 30 | 16 |
|
|
| 1X25 | 1,0 | 0,96 | 0,8 | 25,0 | 60,0 | 4,0 | 2 | 0,50 | 30 | 16 |
|
|
| 1X30 | 1,0 | 0,96 | 0,8 | 30,0 | 70,0 | 4,0 | 2 | 0,50 | 30 | 16 |
|
|
| 1,2X15 | 1,2 | 1,16 | 0,96 | 15,0 | 55,0 | 4,0 | 2 | 0,60 | 30 | 16 |
|
|
| 1,5X15 | 1,5 | 1,44 | 1,2 | 15,0 | 50,0 | 4,0 | 2 | 0,75 | 30 | 16 |
|
|
| 1,5X20 | 1,5 | 1,44 | 1,2 | 20,0 | 60,0 | 4,0 | 2 | 0,75 | 30 | 16 |
|
|
| 1,5X25 | 1,5 | 1,44 | 1,2 | 25,0 | 60,0 | 4,0 | 2 | 0,75 | 30 | 16 |
|
|
| 1,5X30 | 1,5 | 1,44 | 1,2 | 30,0 | 70,0 | 4,0 | 2 | 0,75 | 30 | 16 |
|
|
| 1,8X15 | 1,8 | 1,74 | 1,44 | 15,0 | 50,0 | 4,0 | 2 | 0,90 | 30 | 16 |
|
|
| 1,8X20 | 1,8 | 1,74 | 1,44 | 20,0 | 55,0 | 4,0 | 2 | 0,90 | 30 | 16 |
|
|
| 2X12 | 2,0 | 1,94 | 1,6 | 12,0 | 50,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2X15 | 2,0 | 1,94 | 1,6 | 15,0 | 50,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2X20 | 2,0 | 1,94 | 1,6 | 20,0 | 60,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2X25 | 2,0 | 1,94 | 1,6 | 25,0 | 60,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2X30 | 2,0 | 1,94 | 1,6 | 30,0 | 70,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2X35 | 2,0 | 1,94 | 1,6 | 35,0 | 80,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2X40 | 2,0 | 1,94 | 1,6 | 40,0 | 80,0 | 4,0 | 2 | 1,00 | 30 | 16 |
|
|
| 2,5X15 | 2,5 | 2,41 | 2,0 | 15,0 | 50,0 | 4,0 | 2 | 1,25 | 30 | 16 |
|
|
| 2,5X20 | 2,5 | 2,41 | 2,0 | 20,0 | 55,0 | 4,0 | 2 | 1,25 | 30 | 16 |
|
|
| 2,5X25 | 2,5 | 2,41 | 2,0 | 25,0 | 60,0 | 4,0 | 2 | 1,25 | 30 | 16 |
|
|
| 2,5X30 | 2,5 | 2,41 | 2,0 | 30,0 | 70,0 | 4,0 | 2 | 1,25 | 30 | 16 |
|
|
| 3X15 | 3,0 | 2,92 | 3,5 | 15,0 | 50,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
|
| 3X20 | 3,0 | 2,92 | 3,5 | 20,0 | 55,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
|
| 3X25 | 3,0 | 2,92 | 3,5 | 25,0 | 60,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
|
| 3X30 | 3,0 | 2,92 | 3,5 | 30,0 | 70,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
|
| 3X35 | 3,0 | 2,92 | 3,5 | 35,0 | 70,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
|
| 3X40 | 3,0 | 2,92 | 3,5 | 40,0 | 80,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
|
| 3X45 | 3,0 | 2,92 | 3,5 | 45,0 | 80,0 | 4,0 | 2 | 1,50 | 30 | 16 |
|
