EXPK1-M01-0114 | EXPK1 Performmaker Z4 1,5xD AFPX

Cooling air-cooled dry
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical

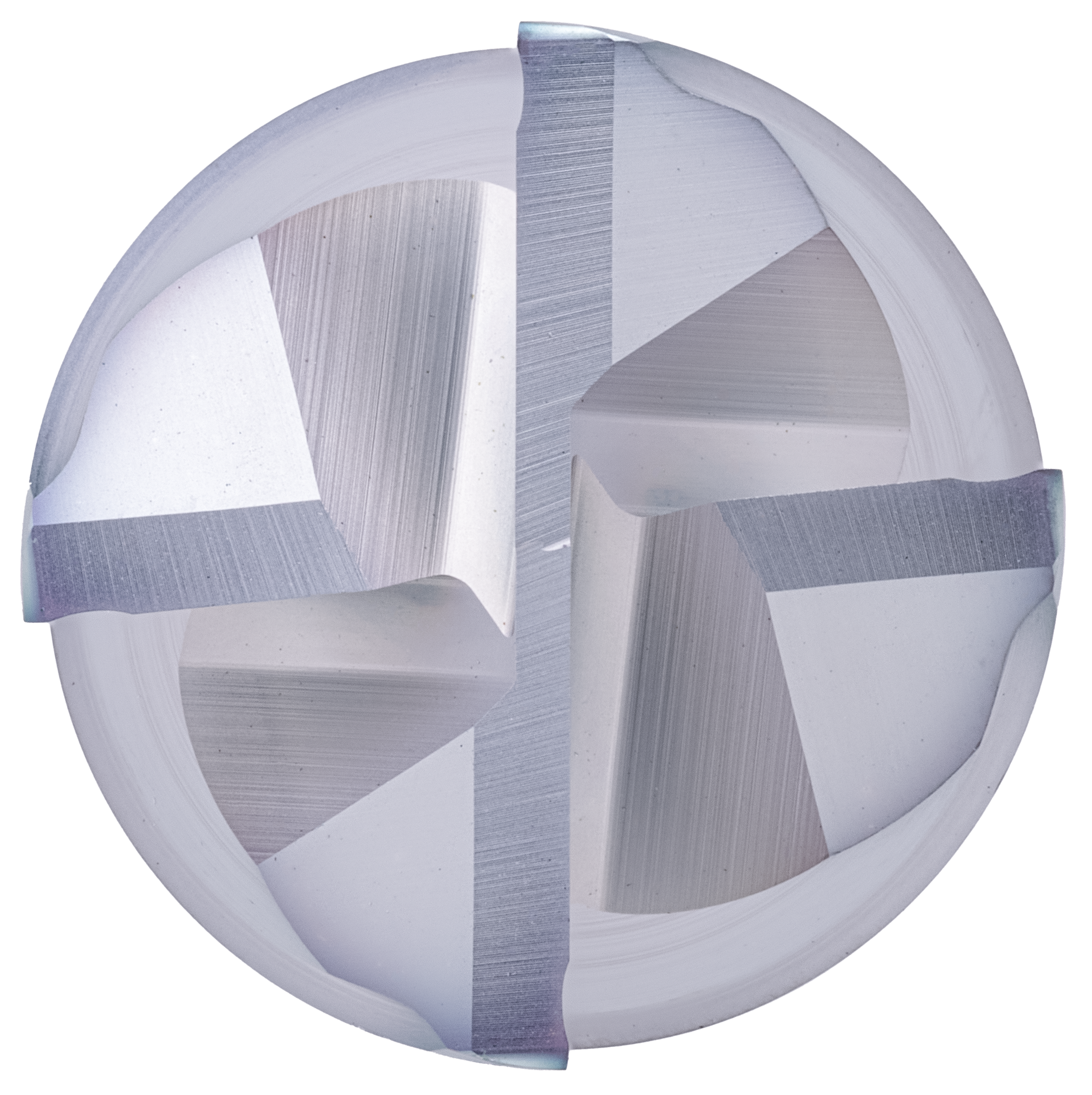

Features Weldon HB Unequal tooth pitch Dynamic helical pitch Center Cutting 1,5xD Corner radius
  • Unequal tooth pitch combined with variable helix for smooth running
  • Optimized face for process reliable, helical diving and immersion
  • Reinforced cutting edge with corner protection radius
  • Unleashes its full performance potential when milling with air cooling
  • For roughing and finishing, up to 1xD full slot
  • Designed for maximum tool life when trimming and trochoidal milling
Suitability for
Roughing Finishing


EXPK1-M01-0114
EXPK1-M01-0114
EXPK1-M01-0114
EXPK1-M01-0114
EXPK1-M01-0114

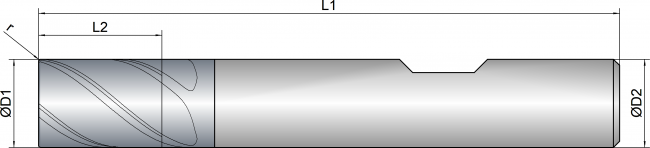

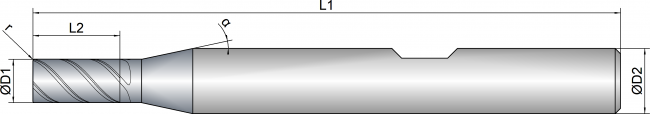

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
3 3.0 6.0 54.0 6.0 4 0.10 40 12 orange

4 4.0 8.0 54.0 6.0 4 0.10 40 12 green

5 5.0 9.0 54.0 6.0 4 0.20 40 12 green

6 6.0 10.0 54.0 6.0 4 0.20 40 - green

8 8.0 12.0 58.0 8.0 4 0.20 40 - green

10 10.0 14.0 66.0 10.0 4 0.20 40 - orange

12 12.0 16.0 73.0 12.0 4 0.20 40 - orange

16 16.0 22.0 82.0 16.0 4 0.30 40 - orange

20 20.0 26.0 92.0 20.0 4 0.30 40 - green
