EXPK1-M01-0173 | EXPK1 Performmaker Z4 1,5xD AFPX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaFerro Platin X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|

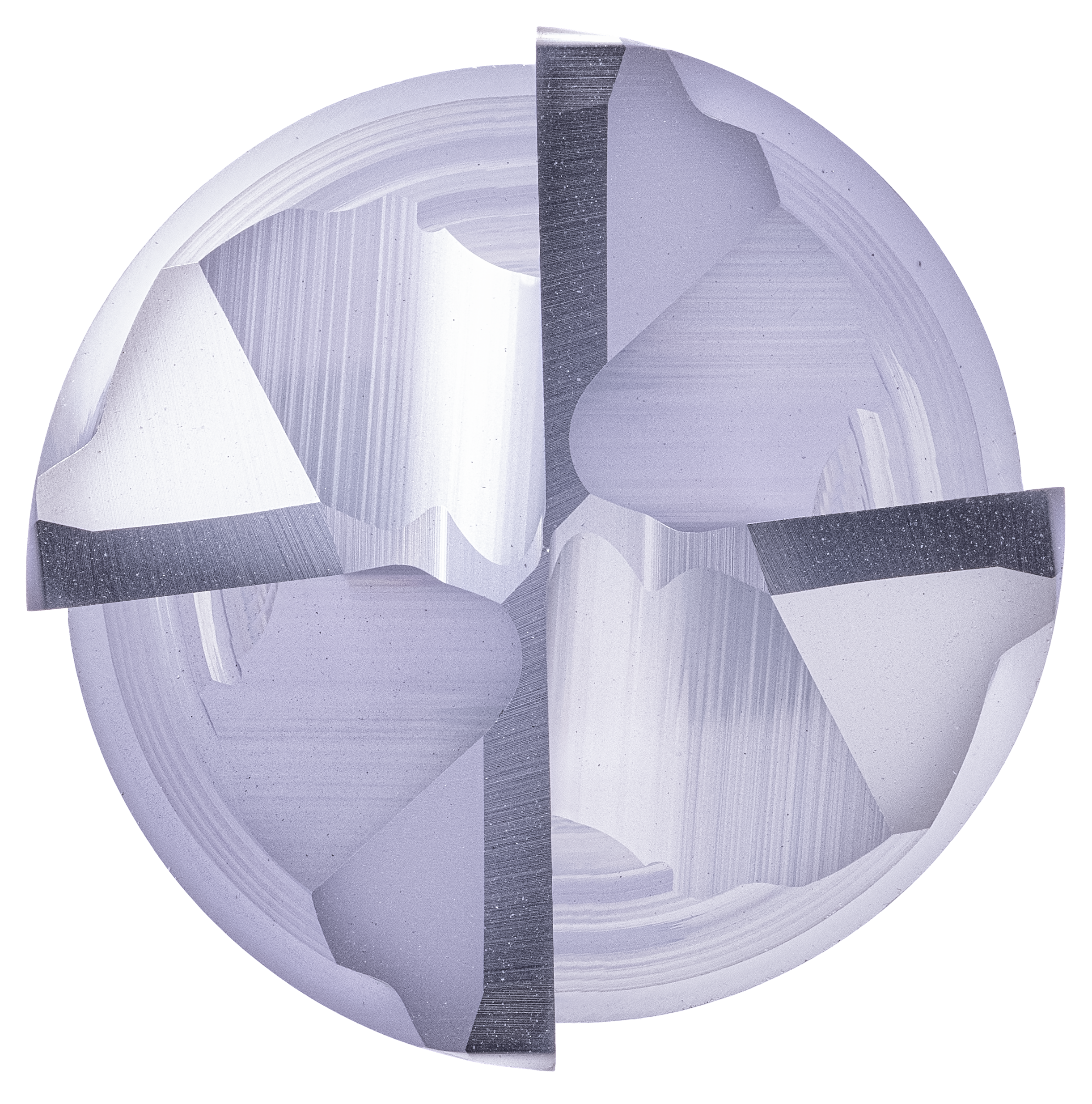

- Unequal tooth pitch combined with variable helical pitch for smooth running
- Reinforced cutting edge with corner protection radius
- Enlarged chip chambers for flushing with cooling lubricant
- Unleashes its full performance potential when milling with cooling lubricant
- Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1xD
- For process reliable ramping, helical immersion and diving (drilling) up to 1xD
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

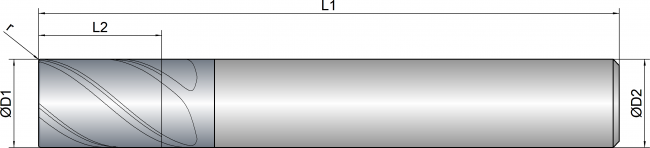

EXPK1-M01-0173
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.0 | 6.0 | 54.0 | 6.0 | 4 | 0.10 | 40 | 12 |
|
|
| 4 | 4.0 | 8.0 | 54.0 | 6.0 | 4 | 0.10 | 40 | 12 |
|
|
| 5 | 5.0 | 9.0 | 54.0 | 6.0 | 4 | 0.20 | 40 | 12 |
|
|
| 6 | 6.0 | 10.0 | 54.0 | 6.0 | 4 | 0.20 | 40 | - |
|
|
| 8 | 8.0 | 12.0 | 58.0 | 8.0 | 4 | 0.20 | 40 | - |
|
|
| 10 | 10.0 | 14.0 | 66.0 | 10.0 | 4 | 0.20 | 40 | - |
|
|
| 12 | 12.0 | 16.0 | 73.0 | 12.0 | 4 | 0.20 | 40 | - |
|
|
| 16 | 16.0 | 22.0 | 82.0 | 16.0 | 4 | 0.30 | 40 | - |
|
|
| 20 | 20.0 | 26.0 | 92.0 | 20.0 | 4 | 0.30 | 40 | - |
|
