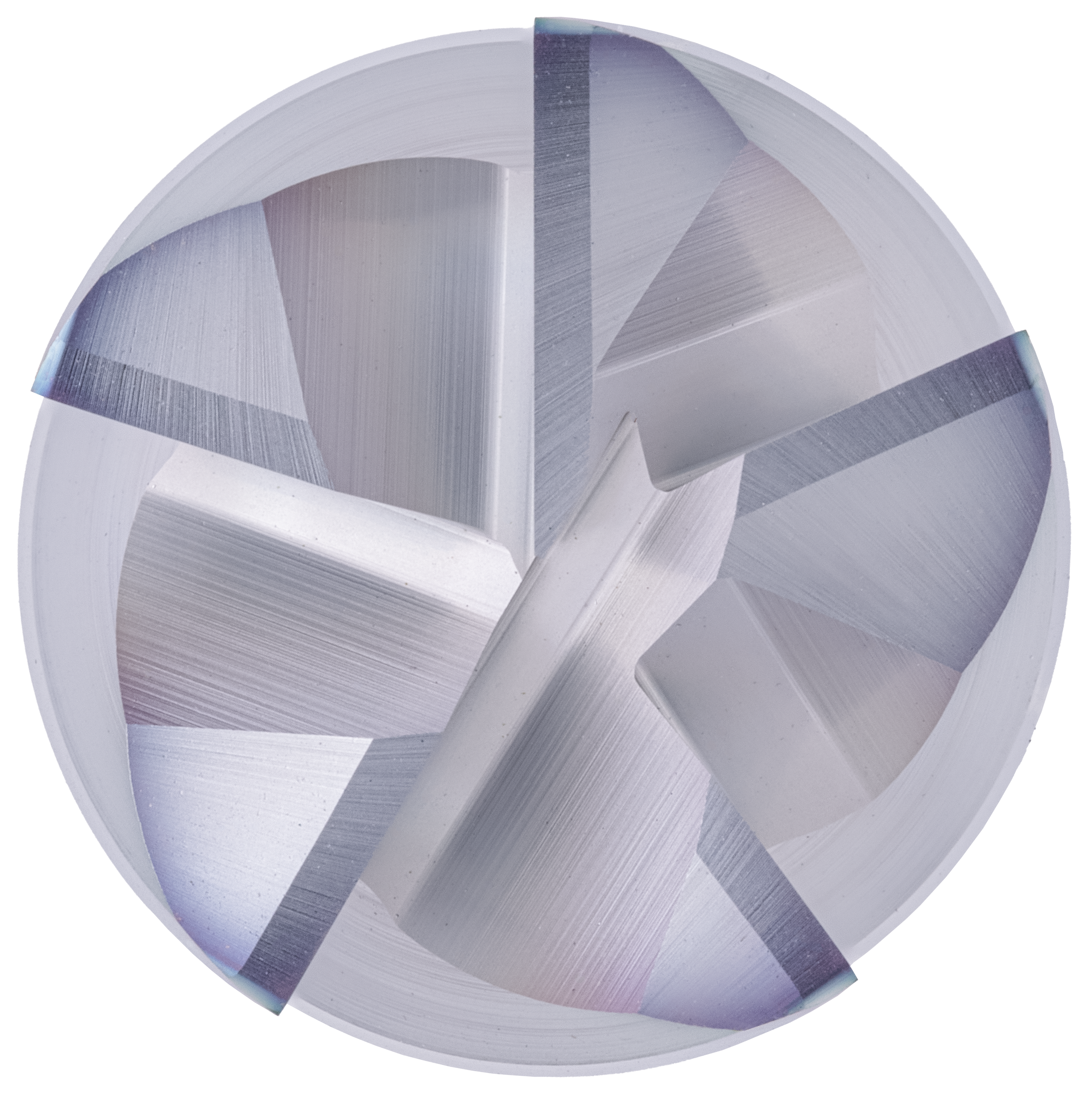

EXPK1-M01-0224 | EXPK1 Performmaker Z5 2xD AFPX
Cooling |
![]() ![]() ![]() ![]() |
---|---|
Tolerance | e8 |
Coating | AlphaFerro Platin X |
Downloads | Catalog page & Cutting data |
Strategy |
|
---|---|
Applications |
|
Features |
|
- Unequal tooth pitch combined with variable helical pitch for smooth running
- Defined cutting edge geometry for stabilization at high infeeds
- Reinforced tool core for high breakage resistance
- For roughing and finishing
Suitability for | |
---|---|
Roughing | Finishing |
|
|




EXPK1-M01-0224
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
6 | 6.0 | 5.8 | 13.0 | 19.0 | 57.0 | 6.0 | 5 | 0.15 | 40 | 20 |
![]() |
|
8 | 8.0 | 7.8 | 19.0 | 25.0 | 63.0 | 8.0 | 5 | 0.20 | 40 | 20 |
![]() |
|
10 | 10.0 | 9.8 | 22.0 | 30.0 | 72.0 | 10.0 | 5 | 0.20 | 40 | 20 |
![]() |
|
12 | 12.0 | 11.8 | 26.0 | 36.0 | 83.0 | 12.0 | 5 | 0.20 | 40 | 20 |
![]() |
|
16 | 16.0 | 15.8 | 32.0 | 42.0 | 92.0 | 16.0 | 5 | 0.30 | 40 | 20 |
![]() |
|
20 | 20.0 | 19.8 | 41.0 | 52.0 | 104.0 | 20.0 | 5 | 0.30 | 40 | 20 |
![]() |
