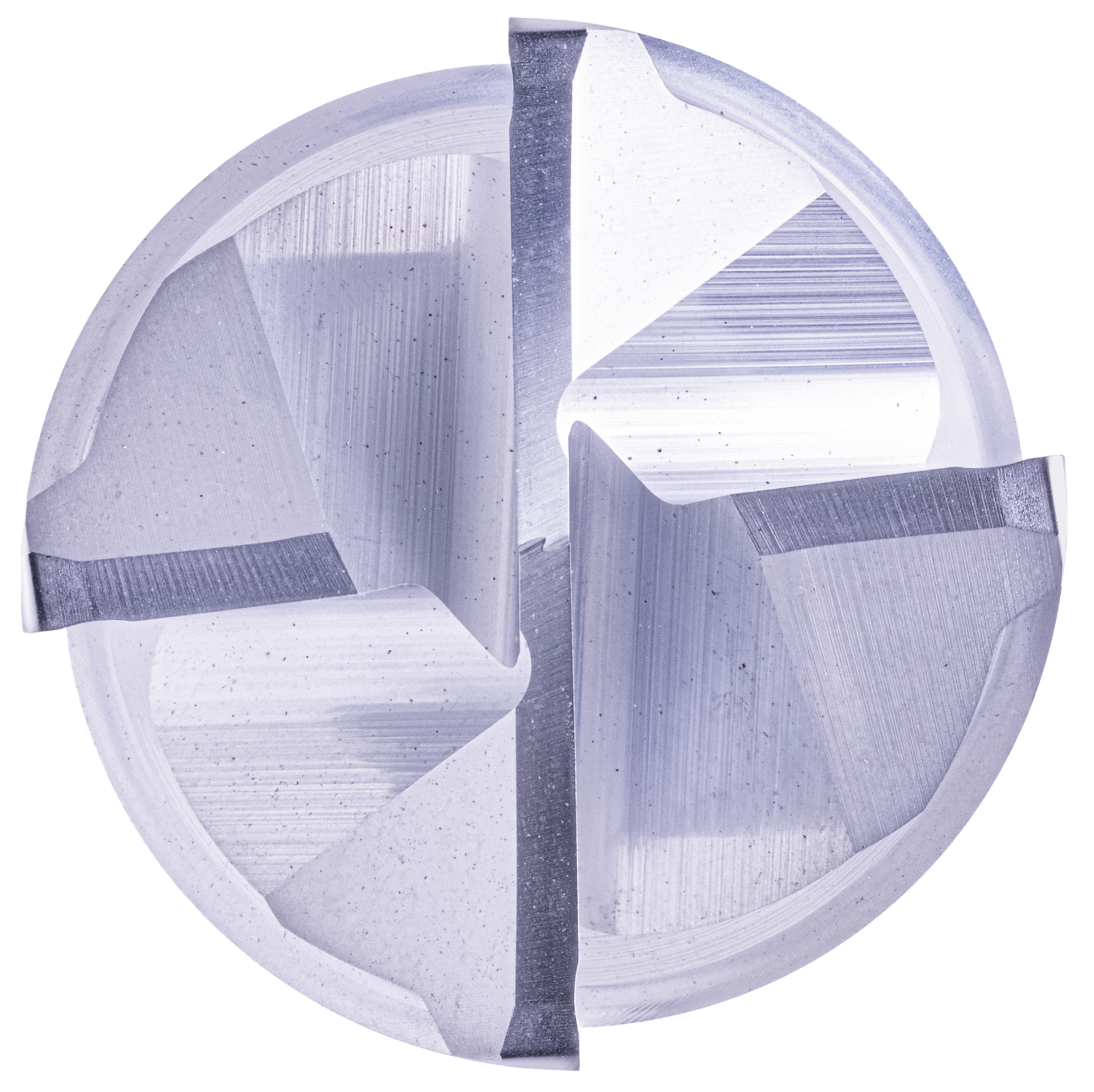

EXPK1-M01-0323 | EXPK1 Performmaker Z4 3xD AFPX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaFerro Platin X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Unequal tooth pitch combined with variable helical pitch for smooth running
- Reinforced cutting edge with corner protection radius
- Enlarged chip chambers for high chip volume
- Designed for maximum removal rate when milling with high radial depth of cut and in the full slot up to 1xD
- For process reliable helical immersion
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

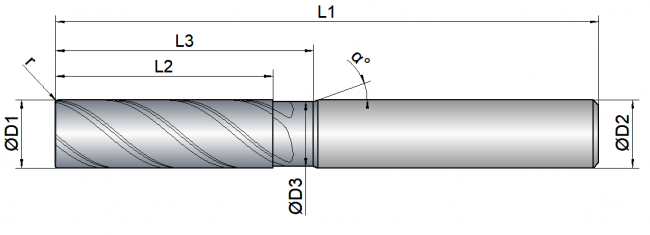

EXPK1-M01-0323
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3.0 | 2.8 | 11.0 | 15.0 | 65.0 | 6.0 | 4 | 0.10 | 40 | 20 |
|
|
| 4 | 4.0 | 3.7 | 14.0 | 20.0 | 65.0 | 6.0 | 4 | 0.10 | 40 | 20 |
|
|
| 5 | 5.0 | 4.7 | 16.0 | 26.0 | 65.0 | 6.0 | 4 | 0.15 | 40 | 20 |
|
|
| 6 | 6.0 | 5.5 | 19.0 | 26.0 | 65.0 | 6.0 | 4 | 0.15 | 40 | 20 |
|
|
| 8 | 8.0 | 7.5 | 26.0 | 32.0 | 70.0 | 8.0 | 4 | 0.20 | 40 | 20 |
|
|
| 10 | 10.0 | 9.5 | 32.0 | 38.0 | 80.0 | 10.0 | 4 | 0.20 | 40 | 20 |
|
|
| 12 | 12.0 | 11.0 | 38.0 | 46.0 | 93.0 | 12.0 | 4 | 0.25 | 40 | 20 |
|
|
| 16 | 16.0 | 15.0 | 50.0 | 60.0 | 110.0 | 16.0 | 4 | 0.30 | 40 | 20 |
|
|
| 20 | 20.0 | 19.0 | 62.0 | 74.0 | 125.0 | 20.0 | 4 | 0.30 | 40 | 20 |
|
