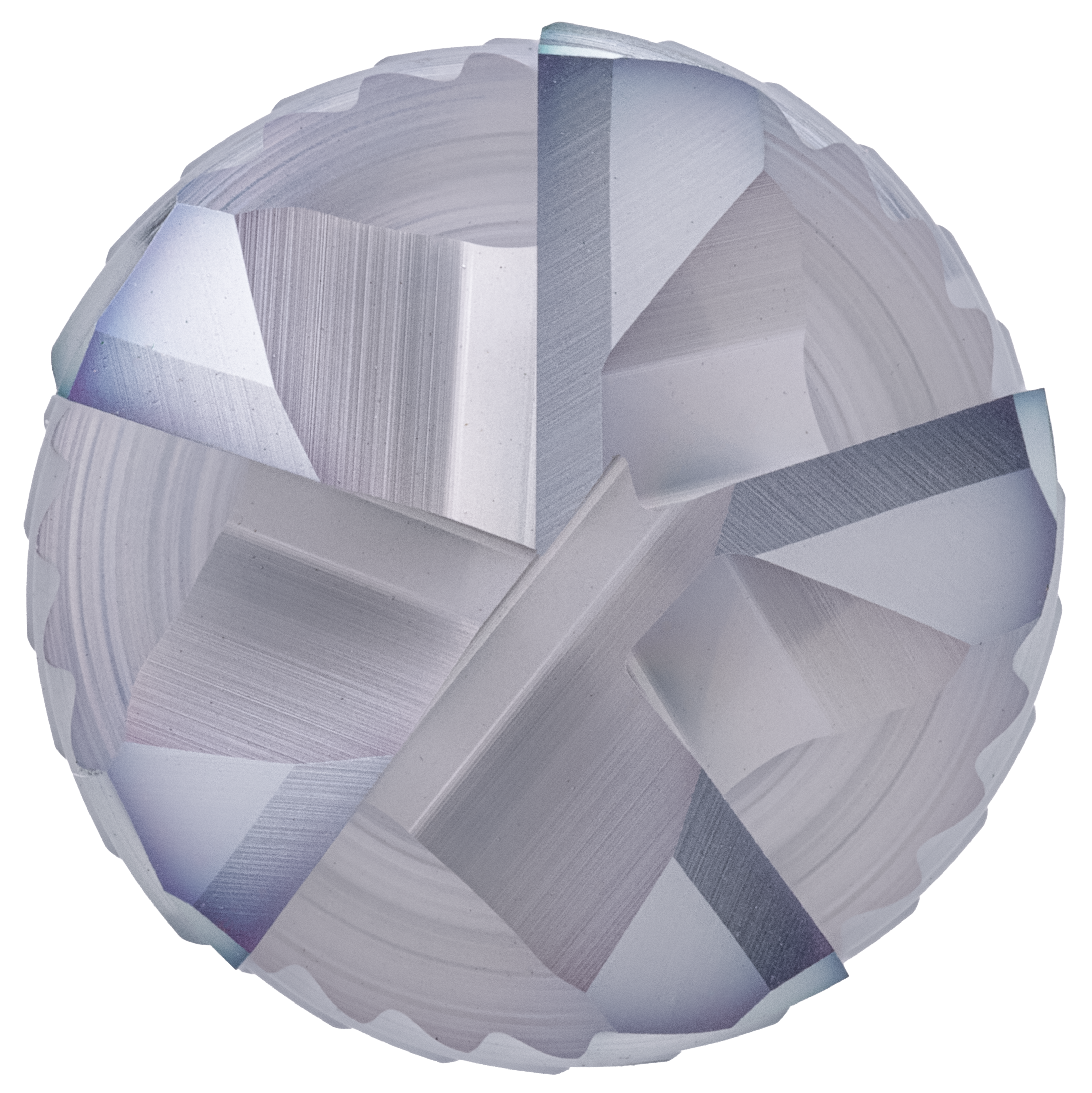

EXPK1-M02-0123 | EXPK1 Slotmaker Z5 2xD AFPX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaFerro Platin X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Optimized roughing teeth for soft cut and small chips
- Ascending reinforced tool core for maximum stability
- Variable helical pitch and unequal tooth pitch for smooth running
- Extreme material removal at the highest performance
- Also ideally designed for trochoidal milling
- For roughing, up to 2xD full slot
- For process reliable, helical immersion
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

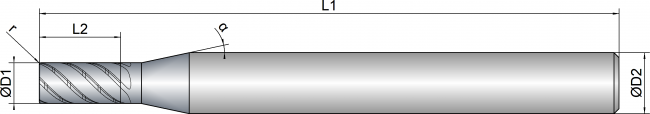

EXPK1-M02-0123
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | 4.0 | - | 8.0 | - | 57.0 | 6.0 | 5 | 0.10 | 45 | 12 |
|
|
| 6 | 6.0 | 5.6 | 13.0 | 19.0 | 57.0 | 6.0 | 5 | 0.20 | 45 | 20 |
|
|
| 8 | 8.0 | 7.6 | 19.0 | 25.0 | 63.0 | 8.0 | 5 | 0.20 | 45 | 20 |
|
|
| 10 | 10.0 | 9.6 | 22.0 | 30.0 | 72.0 | 10.0 | 5 | 0.32 | 45 | 20 |
|
|
| 12 | 12.0 | 11.4 | 26.0 | 36.0 | 83.0 | 12.0 | 5 | 0.32 | 45 | 20 |
|
|
| 16 | 16.0 | 15.4 | 32.0 | 42.0 | 92.0 | 16.0 | 5 | 0.32 | 45 | 20 |
|
|
| 20 | 20.0 | 19.4 | 41.0 | 52.0 | 104.0 | 20.0 | 5 | 0.50 | 45 | 20 |
|
