EXPK1-M02-0153 | EXPK1 Slotmaker Z5 3xD AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Serrated edge 3xD Dynamic helical pitch Center Cutting Corner radius
  • Optimized roughing teeth for soft cut and small chips
  • Ascending reinforced tool core for maximum stability
  • Variable helical pitch and unequal tooth pitch for smooth running
  • Extreme material removal at the highest performance
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


EXPK1-M02-0153
EXPK1-M02-0153
EXPK1-M02-0153
EXPK1-M02-0153
EXPK1-M02-0153

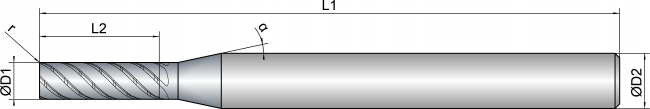

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 63.0 6.0 5 0.10 45 12 green
