EXPK1-M02-0223 | EXPK1 Slotmaker Z5 2xD IC AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features No Weldon Unequal tooth pitch Coolant duct system Serrated edge 2xD Dynamic helical pitch Non-Center Cutting
  • Optimized roughing teeth for soft cut and small chips
  • Ascending reinforced tool core for maximum stability
  • Variable helical pitch and unequal tooth pitch for smooth running
  • With central inner cooling
  • Extreme material removal at the highest performance
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical immersion
Suitability for
Roughing Finishing

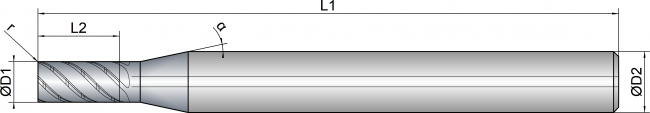

EXPK1-M02-0223
EXPK1-M02-0223
EXPK1-M02-0223
EXPK1-M02-0223
EXPK1-M02-0223
D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 8.0 - 57.0 6.0 5 0.10 45 12 green
6 6.0 5.6 13.0 19.0 57.0 6.0 5 0.20 45 20 green
8 8.0 7.6 19.0 25.0 63.0 8.0 5 0.20 45 20 green
10 10.0 9.6 22.0 30.0 72.0 10.0 5 0.32 45 20 green
12 12.0 11.4 26.0 36.0 83.0 12.0 5 0.32 45 20 green
16 16.0 15.4 31.0 42.0 92.0 16.0 5 0.32 45 20 green
20 20.0 19.4 41.0 52.0 104.0 20.0 5 0.50 45 20 green
