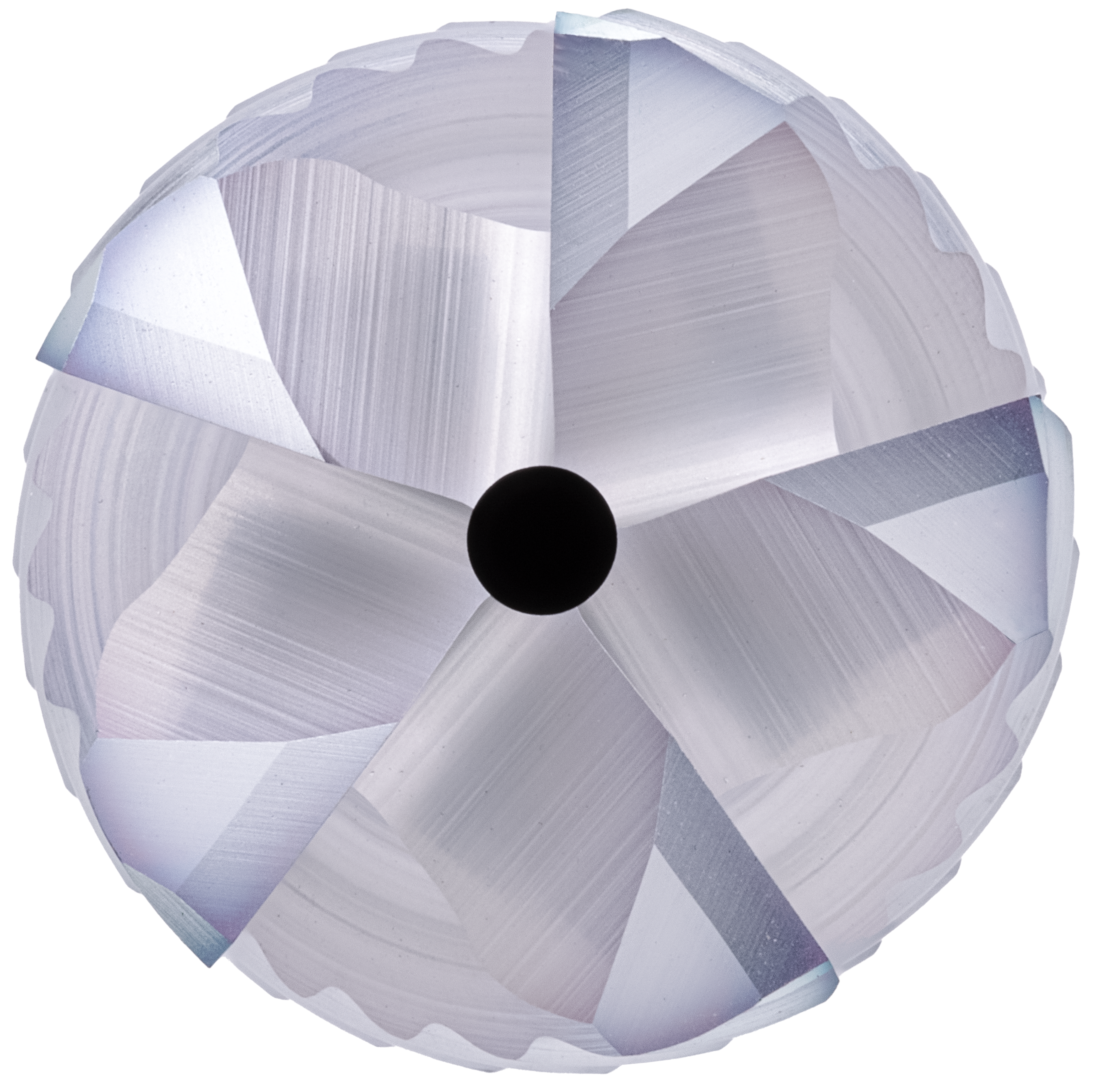

EXPK1-M02-0254 | EXPK1 Slotmaker Z5 3xD IC AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming Full slot X, Y helical
Features Weldon HB Unequal tooth pitch Coolant duct system Serrated edge 3xD Dynamic helical pitch Non-Center Cutting Corner radius
  • Optimized roughing teeth for soft cut and small chips
  • Ascending reinforced tool core for maximum stability
  • Variable helical pitch and unequal tooth pitch for smooth running
  • With central inner cooling
  • Extreme material removal at the highest performance
  • Also ideally designed for trochoidal milling
  • For roughing, up to 2xD full slot
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


EXPK1-M02-0254
EXPK1-M02-0254
EXPK1-M02-0254
EXPK1-M02-0254
EXPK1-M02-0254

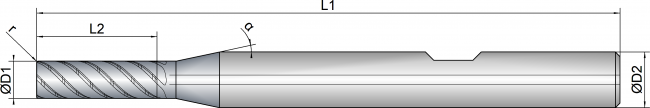

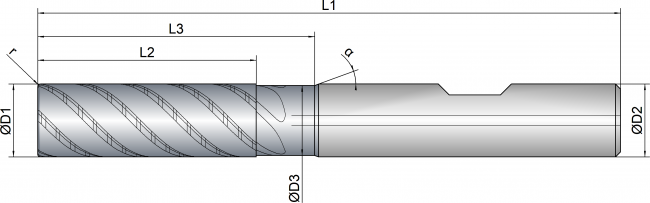

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
4 4.0 - 13.0 - 63.0 6.0 5 0.10 45 12 green

6 6.0 5.6 18.0 24.0 63.0 6.0 5 0.20 45 20 green

8 8.0 7.6 24.0 30.0 70.0 8.0 5 0.20 45 20 green

10 10.0 9.6 30.0 38.0 80.0 10.0 5 0.32 45 20 green

12 12.0 11.4 36.0 46.0 93.0 12.0 5 0.32 45 20 green

16 16.0 15.4 48.0 58.0 110.0 16.0 5 0.32 45 20 green

20 20.0 19.4 60.0 74.0 125.0 20.0 5 0.50 45 20 green
