EXPK1-M02-0324 | EXPK1 Slotmaker Z5 4xD AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Performance Cutting
Applications Trimming X, Y helical
Features Weldon HB Unequal tooth pitch Serrated edge 4xD Dynamic helical pitch Center Cutting Corner radius
  • Optimized roughing teeth for soft cut and small chips
  • Ascending reinforced tool core for maximum stability
  • Variable helical pitch and unequal tooth pitch for smooth running
  • For process reliable, helical immersion
  • Extreme material removal at the highest performance
  • Also ideally designed for trochoidal milling
Suitability for
Roughing Finishing


Products for processing Steel Product series "Steel" at a glance
Products for processing Castings
EXPK1-M02-0324
EXPK1-M02-0324
EXPK1-M02-0324
EXPK1-M02-0324
EXPK1-M02-0324

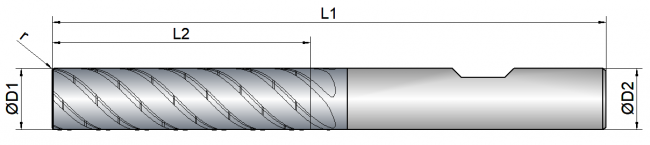

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
6 6.0 25.0 68.0 6.0 5 0.20 45 red

8 8.0 34.0 75.0 8.0 5 0.25 45 orange

10 10.0 42.0 90.0 10.0 5 0.25 45 orange

12 12.0 50.0 100.0 12.0 5 0.30 45 orange

16 16.0 66.0 125.0 16.0 5 0.40 45 orange

20 20.0 82.0 150.0 20.0 5 0.50 45 orange
