EXPK1-M03-0104 | EXPK1 Chipmaker Z5 2xD AFPX
Kühlung |
![]() ![]() ![]() ![]() |
---|---|
Toleranz | e8 |
Beschichtung | AlphaFerro Platin X |
Downloads | Katalogseite & Schnittdaten |
Strategie |
|
---|---|
Anwendung |
|
Eigenschaften |
|
- Variable Drallsteigung mit Ungleichteilung für ruhigen Lauf und weichen Schnitt
- Angepasste Spankammern für trochoidales Fräsen
- Optimiertes Design der Spanbrecher für höchste Lebensdauer
- Ideale Spanabfuhr, auch bei hoher seitlicher Zustellung
- Zum Schruppen und Schlichten unter ETC Bedingungen
- Zum prozesssicheren helikalen Eintauchen
Eignung | |
---|---|
Schruppen | Schlichten |
|
|

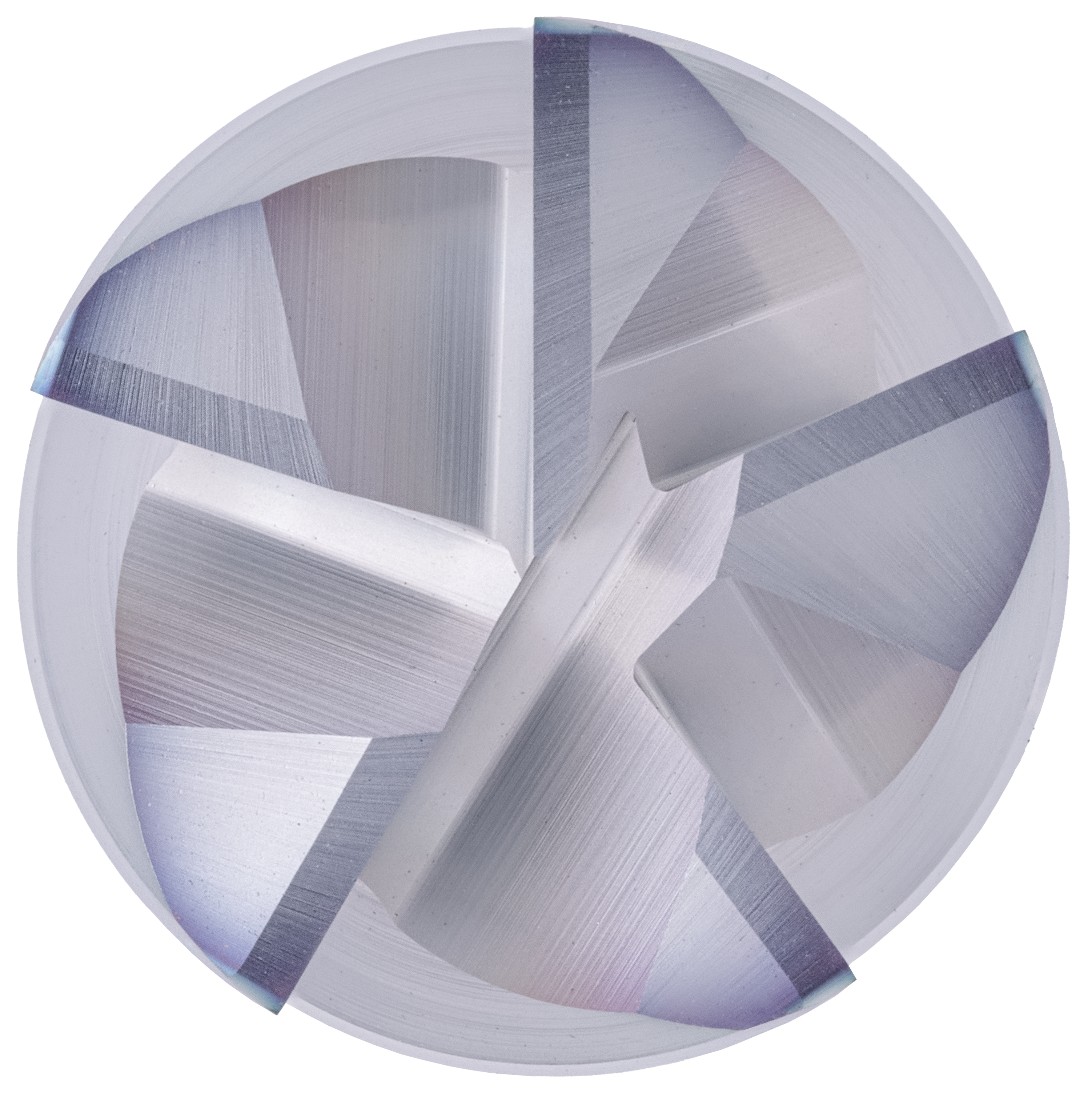

![EXPK1-M03-0104 EXPK1-M03-0104](https://fn.hofmann-vratny.de/resources/images/fraeser_face_none.png)
![EXPK1-M03-0104 EXPK1-M03-0104](https://fn.hofmann-vratny.de/resources/images/fraeser_none.png)
![EXPK1-M03-0104 EXPK1-M03-0104](https://fn.hofmann-vratny.de/resources/images/fraeser_tech_none.png)
![EXPK1-M03-0104 EXPK1-M03-0104](https://fn.hofmann-vratny.de/resources/images/fraeser_tech_none.png)

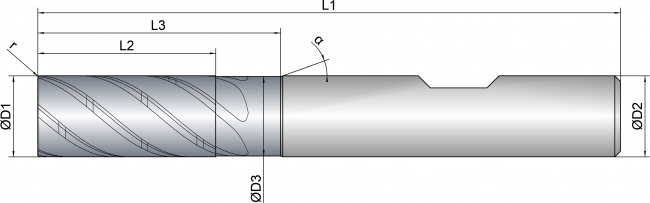

EXPK1-M03-0104
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
6 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 5 | 0,15 | 40 | 20 |
![]() |
|
6/0,5 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 5 | 0,50 | 40 | 20 |
![]() |
|
6/1 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 5 | 1,00 | 40 | 20 |
![]() |
|
6/2 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 5 | 2,00 | 40 | 20 |
![]() |
|
8 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 5 | 0,20 | 40 | 20 |
![]() |
|
8/0,5 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 5 | 0,50 | 40 | 20 |
![]() |
|
8/1 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 5 | 1,00 | 40 | 20 |
![]() |
|
8/2 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 5 | 2,00 | 40 | 20 |
![]() |
|
10 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 5 | 0,20 | 40 | 20 |
![]() |
|
10/0,5 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 5 | 0,50 | 40 | 20 |
![]() |
|
10/1 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 5 | 1,00 | 40 | 20 |
![]() |
|
10/2 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 5 | 2,00 | 40 | 20 |
![]() |
|
12 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 5 | 0,20 | 40 | 20 |
![]() |
|
12/0,5 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 5 | 0,50 | 40 | 20 |
![]() |
|
12/1 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 5 | 1,00 | 40 | 20 |
![]() |
|
12/2 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 5 | 2,00 | 40 | 20 |
![]() |
|
16 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 5 | 0,30 | 40 | 20 |
![]() |
|
16/0,5 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 5 | 0,50 | 40 | 20 |
![]() |
|
16/1 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 5 | 1,00 | 40 | 20 |
![]() |
|
16/2 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 5 | 2,00 | 40 | 20 |
![]() |
|
20 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 5 | 0,30 | 40 | 20 |
![]() |
|
20/0,5 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 5 | 0,50 | 40 | 20 |
![]() |
|
20/1 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 5 | 1,00 | 40 | 20 |
![]() |
|
20/2 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 5 | 2,00 | 40 | 20 |
![]() |
