EXPK1-M03-0133 | EXPK1 Chipmaker Z5 5xD AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X, Y helical
Features No Weldon Unequal tooth pitch Chip breaking 5xD Dynamic helical pitch Center Cutting
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
Suitability for
Roughing Finishing


EXPK1-M03-0133
EXPK1-M03-0133
EXPK1-M03-0133
EXPK1-M03-0133
EXPK1-M03-0133

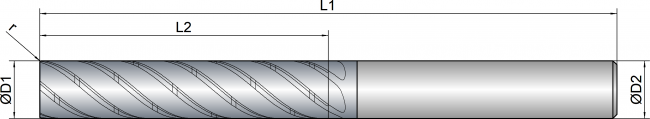

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
8 8.0 40.0 90.0 8.0 5 0.20 40 green
10 10.0 50.0 100.0 10.0 5 0.20 40 orange
12 12.0 60.0 119.0 12.0 5 0.20 40 green
16 16.0 80.0 134.0 16.0 5 0.30 40 green
20 20.0 100.0 160.0 20.0 5 0.30 40 green
