EXPK1-M03-0203 | EXPK1 Chipmaker Z7 2xD AFFX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch Chip breaking 2xD Dynamic helical pitch Non-Center Cutting
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions
Suitability for
Roughing Finishing


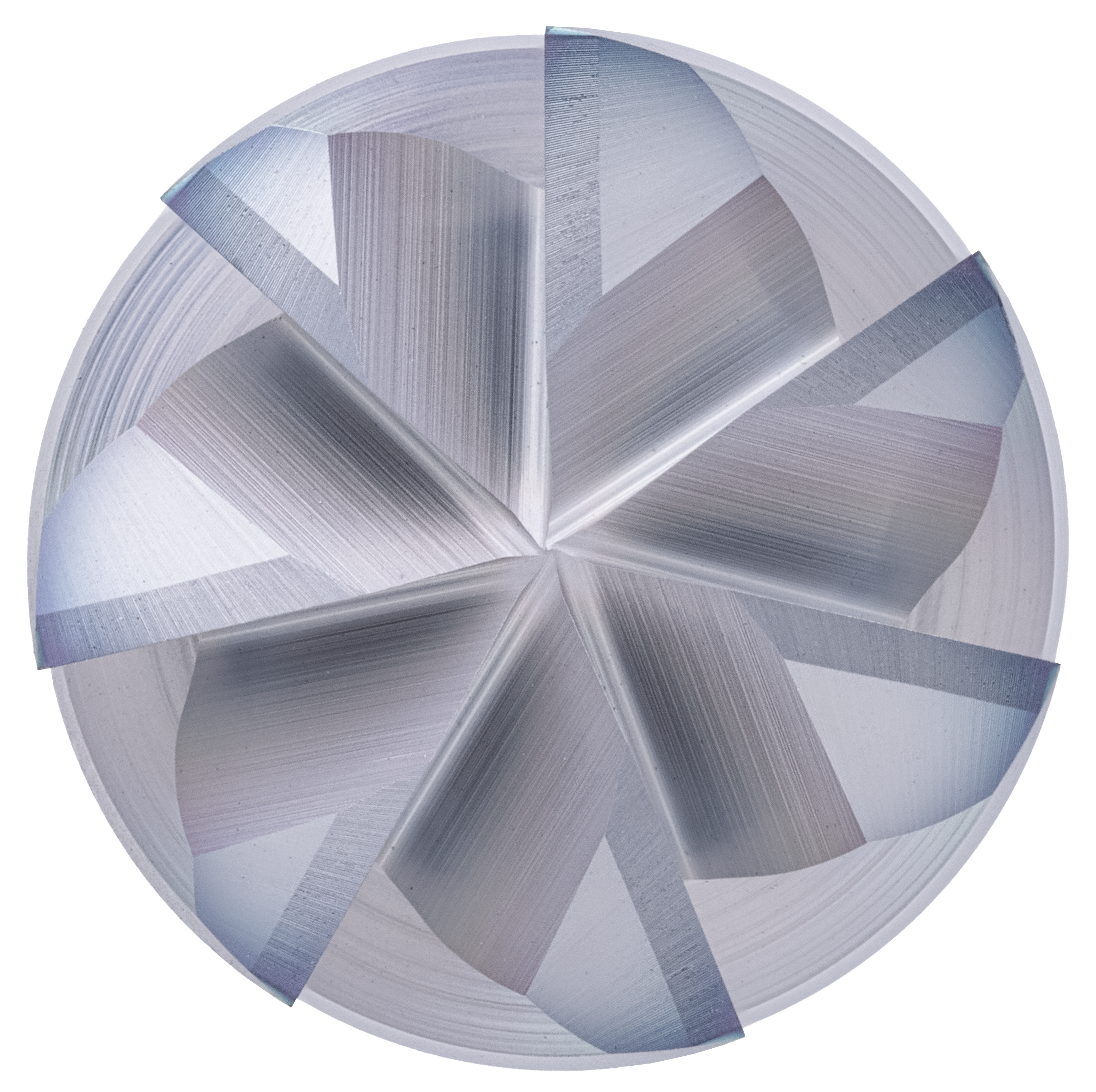

EXPK1-M03-0203
EXPK1-M03-0203
EXPK1-M03-0203
EXPK1-M03-0203
EXPK1-M03-0203

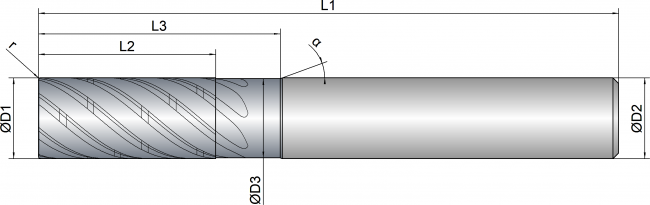

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6 6.0 5.8 13.0 19.0 57.0 6.0 7 0.15 40 20 red
8 8.0 7.8 19.0 25.0 63.0 8.0 7 0.20 40 20 green
10 10.0 9.8 22.0 30.0 72.0 10.0 7 0.20 40 20 green
12 12.0 11.8 26.0 36.0 83.0 12.0 7 0.20 40 20 green
16 16.0 15.8 32.0 42.0 92.0 16.0 7 0.30 40 20 green
20 20.0 19.8 41.0 52.0 104.0 20.0 7 0.30 40 20 green
