EXPK1-M03-0204 | EXPK1 Chipmaker Z7 2xD AFFX
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | AlphaFerro Platin X |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Variable Drallsteigung mit Ungleichteilung für ruhigen Lauf und weichen Schnitt
- Angepasste Spankammern für trochoidales Fräsen
- Optimiertes Design der Spanbrecher für höchste Lebensdauer

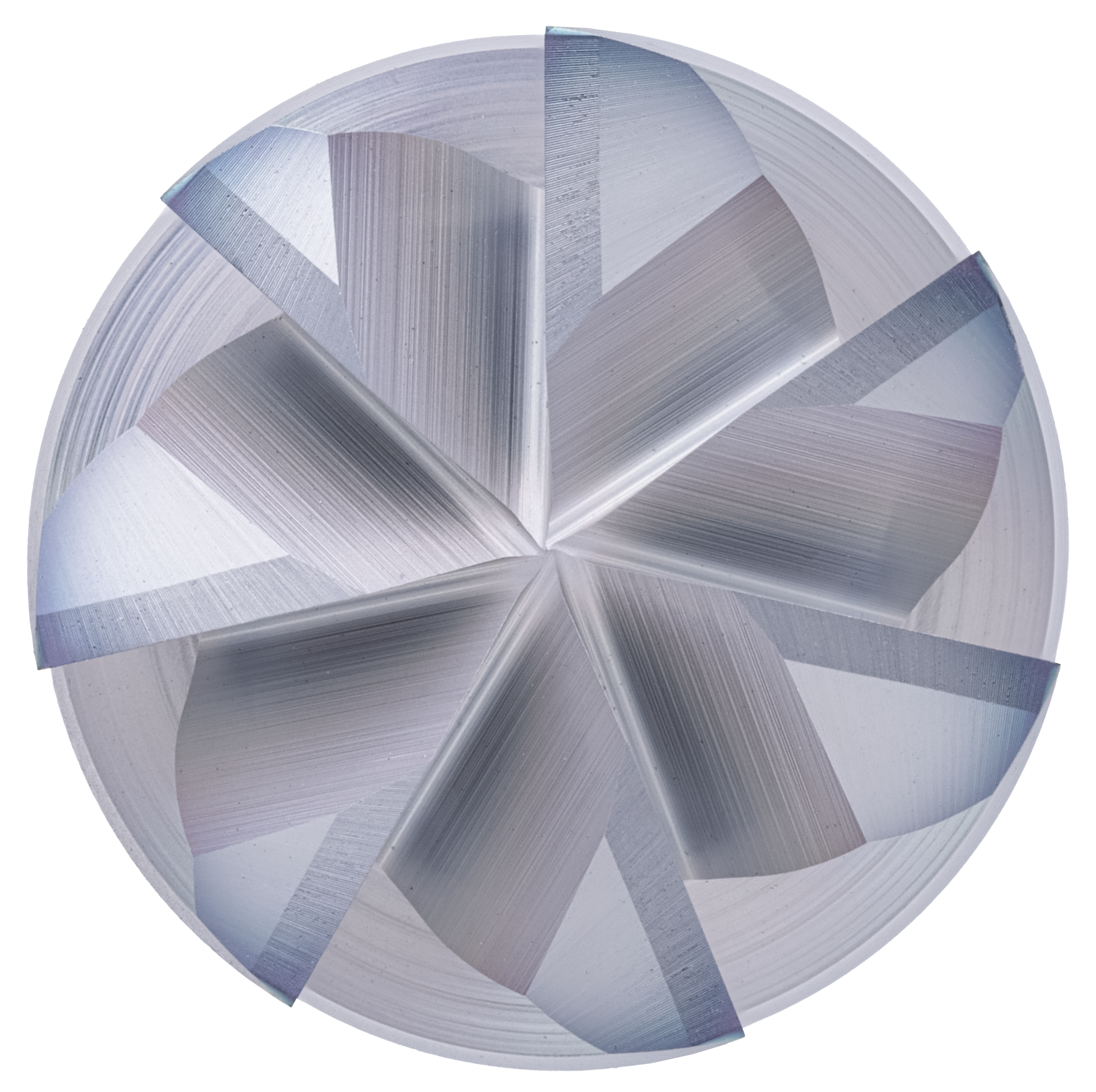

- 7 Schneiden für beste Performance bei einzigartiger Lebensdauer
- Ideale Spanabfuhr bei höchsten Vorschüben
- Zum Schruppen und Schlichten unter ETC Bedingungen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

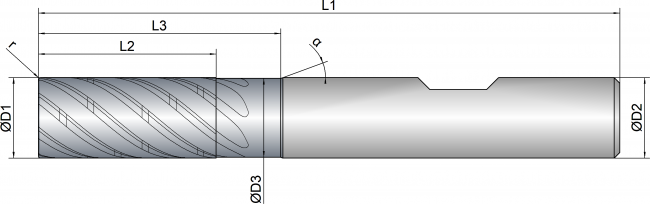

EXPK1-M03-0204
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 7 | 0,15 | 40 | 20 |
|
|
| 6/0,5 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 7 | 0,50 | 40 | 20 |
|
|
| 6/1 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 7 | 1,00 | 40 | 20 |
|
|
| 6/2 | 6,0 | 5,8 | 13,0 | 19,0 | 57,0 | 6,0 | 7 | 2,00 | 40 | 20 |
|
|
| 8 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 7 | 0,20 | 40 | 20 |
|
|
| 8/0,5 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 7 | 0,50 | 40 | 20 |
|
|
| 8/1 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 7 | 1,00 | 40 | 20 |
|
|
| 8/2 | 8,0 | 7,8 | 19,0 | 25,0 | 63,0 | 8,0 | 7 | 2,00 | 40 | 20 |
|
|
| 10 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 7 | 0,20 | 40 | 20 |
|
|
| 10/0,5 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 7 | 0,50 | 40 | 20 |
|
|
| 10/1 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 7 | 1,00 | 40 | 20 |
|
|
| 10/2 | 10,0 | 9,8 | 22,0 | 30,0 | 72,0 | 10,0 | 7 | 2,00 | 40 | 20 |
|
|
| 12 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 7 | 0,20 | 40 | 20 |
|
|
| 12/0,5 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 7 | 0,50 | 40 | 20 |
|
|
| 12/1 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 7 | 1,00 | 40 | 20 |
|
|
| 12/2 | 12,0 | 11,8 | 26,0 | 36,0 | 83,0 | 12,0 | 7 | 2,00 | 40 | 20 |
|
|
| 16 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 7 | 0,30 | 40 | 20 |
|
|
| 16/0,5 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 7 | 0,50 | 40 | 20 |
|
|
| 16/1 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 7 | 1,00 | 40 | 20 |
|
|
| 16/2 | 16,0 | 15,8 | 32,0 | 42,0 | 92,0 | 16,0 | 7 | 2,00 | 40 | 20 |
|
|
| 20 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 7 | 0,30 | 40 | 20 |
|
|
| 20/0,5 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 7 | 0,50 | 40 | 20 |
|
|
| 20/1 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 7 | 1,00 | 40 | 20 |
|
|
| 20/2 | 20,0 | 19,8 | 41,0 | 52,0 | 104,0 | 20,0 | 7 | 2,00 | 40 | 20 |
|
