EXPK1-M03-0213 | EXPK1 Chipmaker Z7 3xD AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X
Features No Weldon Unequal tooth pitch Chip breaking 3xD Dynamic helical pitch Non-Center Cutting Corner radius
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions
Suitability for
Roughing Finishing


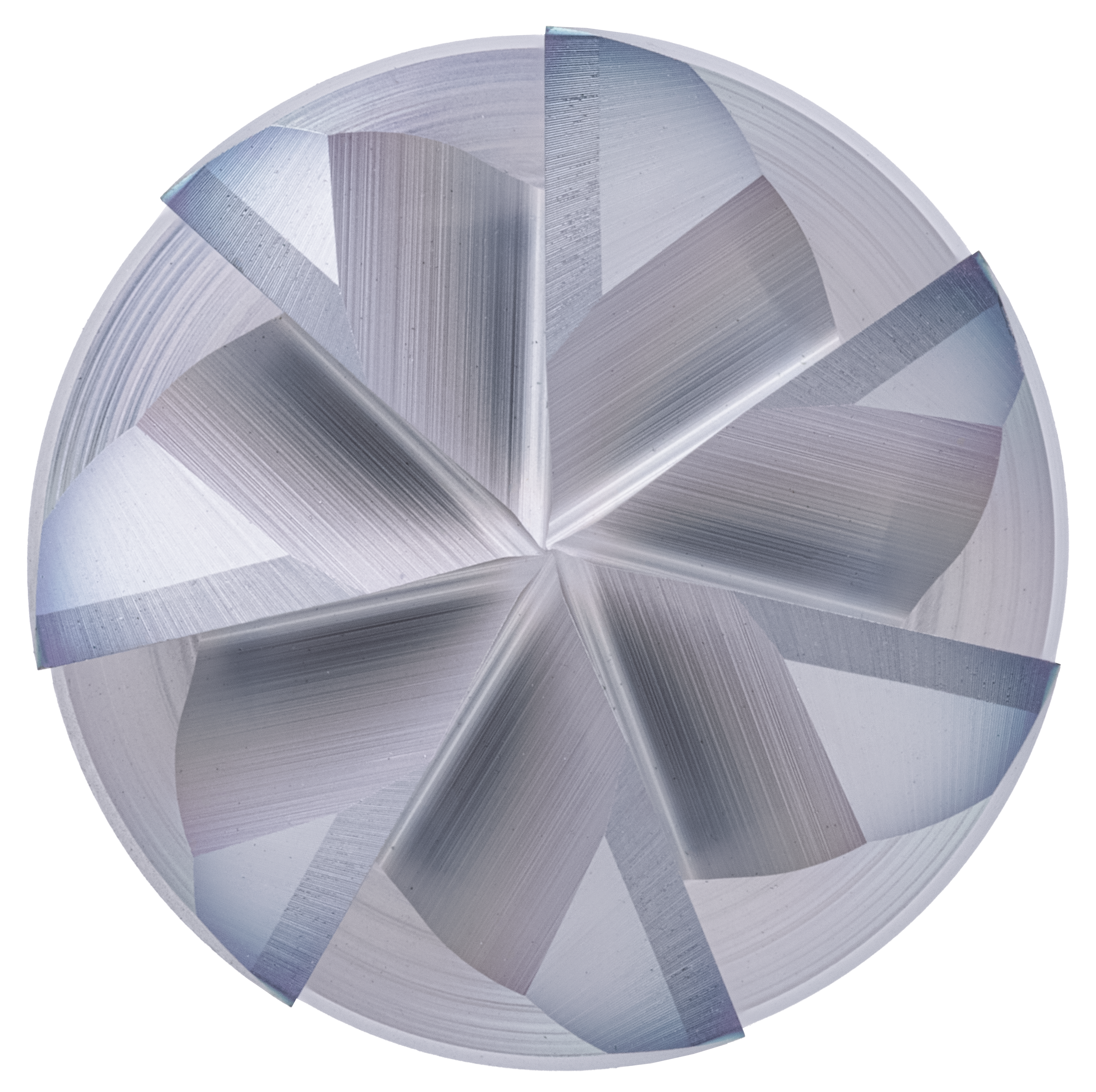

EXPK1-M03-0213
EXPK1-M03-0213
EXPK1-M03-0213
EXPK1-M03-0213
EXPK1-M03-0213

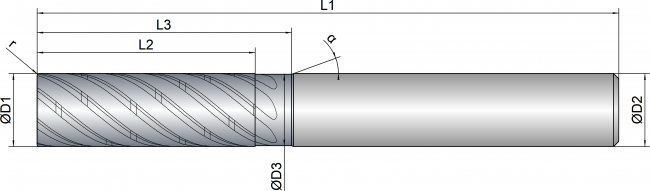

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6 6.0 5.8 18.0 25.0 63.0 6.0 7 0.15 40 20 green
