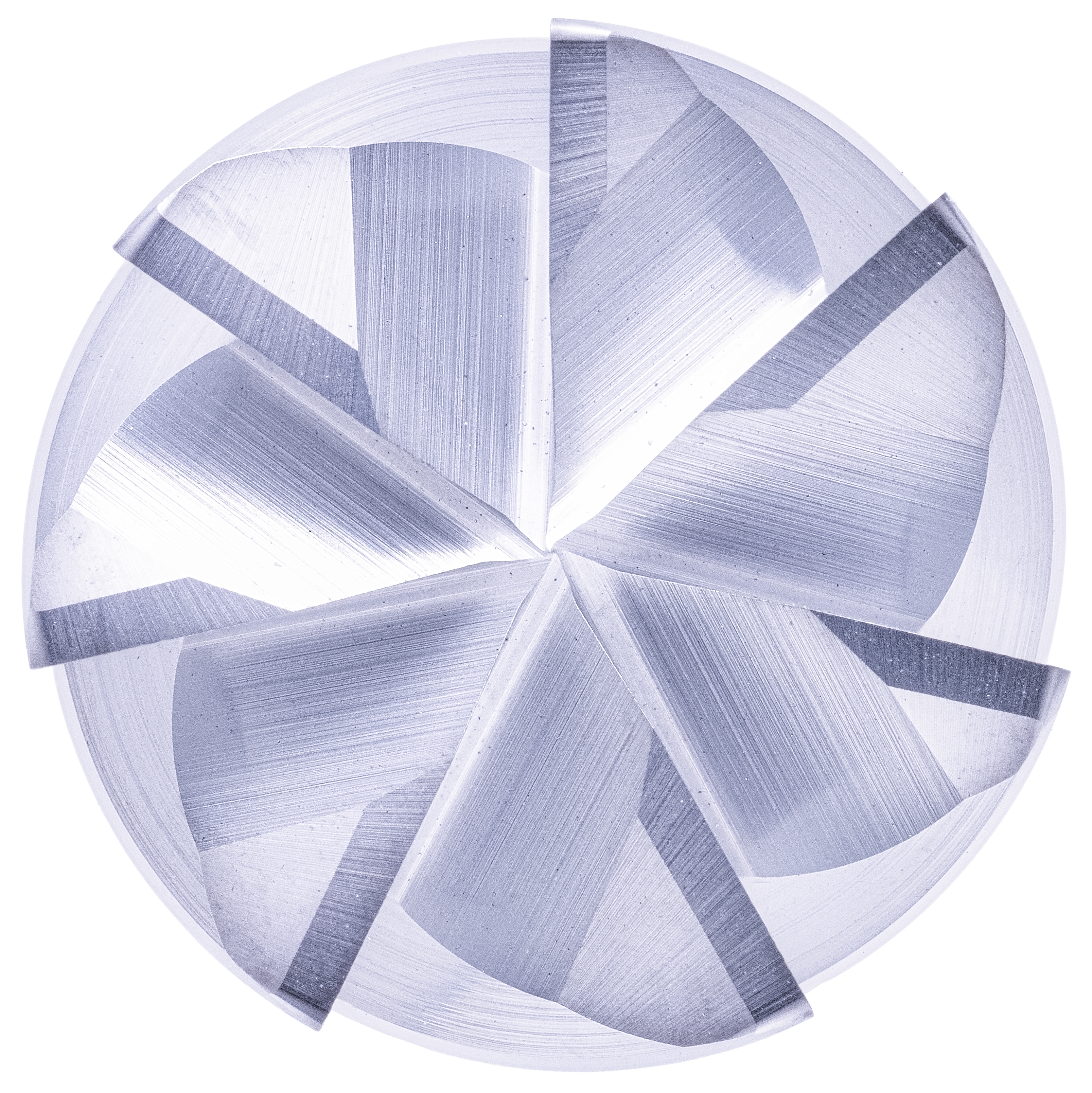

EXPK1-M03-0223 | EXPK1 Chipmaker Z7 4xD AFPX
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | AlphaFerro Platin X |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|
- Variable Drallsteigung mit Ungleichteilung für ruhigen Lauf und weichen Schnitt
- Angepasste Spankammern für trochoidales Fräsen
- Optimiertes Design der Spanbrecher für höchste Lebensdauer
- 7 Schneiden für beste Performance bei einzigartiger Lebensdauer
- Ideale Spanabfuhr bei höchsten Vorschüben
- Zum Schruppen und Schlichten unter ETC Bedingungen
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|
EXPK1-M03-0223
|
D1
|
L2
|
L1
|
D2
|
z
|
r
|
|
||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 6,0 | 24,0 | 68,0 | 6,0 | 7 | 0,15 | 40 |
|
|
| 6/0,5 | 6,0 | 24,0 | 68,0 | 6,0 | 7 | 0,50 | 40 |
|
|
| 6/1 | 6,0 | 24,0 | 68,0 | 6,0 | 7 | 1,00 | 40 |
|
|
| 6/2 | 6,0 | 24,0 | 68,0 | 6,0 | 7 | 2,00 | 40 |
|
|
| 8 | 8,0 | 32,0 | 75,0 | 8,0 | 7 | 0,20 | 40 |
|
|
| 8/0,5 | 8,0 | 32,0 | 75,0 | 8,0 | 7 | 0,50 | 40 |
|
|
| 8/1 | 8,0 | 32,0 | 75,0 | 8,0 | 7 | 1,00 | 40 |
|
|
| 8/2 | 8,0 | 32,0 | 75,0 | 8,0 | 7 | 2,00 | 40 |
|
|
| 10 | 10,0 | 40,0 | 90,0 | 10,0 | 7 | 0,20 | 40 |
|
|
| 10/0,5 | 10,0 | 40,0 | 90,0 | 10,0 | 7 | 0,50 | 40 |
|
|
| 10/1 | 10,0 | 40,0 | 90,0 | 10,0 | 7 | 1,00 | 40 |
|
|
| 10/2 | 10,0 | 40,0 | 90,0 | 10,0 | 7 | 2,00 | 40 |
|
|
| 12 | 12,0 | 48,0 | 100,0 | 12,0 | 7 | 0,20 | 40 |
|
|
| 12/0,5 | 12,0 | 48,0 | 100,0 | 12,0 | 7 | 0,50 | 40 |
|
|
| 12/1 | 12,0 | 48,0 | 100,0 | 12,0 | 7 | 1,00 | 40 |
|
|
| 12/2 | 12,0 | 48,0 | 100,0 | 12,0 | 7 | 2,00 | 40 |
|
|
| 16 | 16,0 | 64,0 | 125,0 | 16,0 | 7 | 0,30 | 40 |
|
|
| 16/0,5 | 16,0 | 64,0 | 125,0 | 16,0 | 7 | 0,50 | 40 |
|
|
| 16/1 | 16,0 | 64,0 | 125,0 | 16,0 | 7 | 1,00 | 40 |
|
|
| 16/2 | 16,0 | 64,0 | 125,0 | 16,0 | 7 | 2,00 | 40 |
|
|
| 20 | 20,0 | 80,0 | 150,0 | 20,0 | 7 | 0,30 | 40 |
|
|
| 20/0,5 | 20,0 | 80,0 | 150,0 | 20,0 | 7 | 0,50 | 40 |
|
|
| 20/1 | 20,0 | 80,0 | 150,0 | 20,0 | 7 | 1,00 | 40 |
|
|
| 20/2 | 20,0 | 80,0 | 150,0 | 20,0 | 7 | 2,00 | 40 |
|
