EXPK1-M03-0234 | EXPK1 Chipmaker Z7 5xD AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting
Applications Trimming X
Features Weldon HB Unequal tooth pitch Chip breaking 5xD Dynamic helical pitch Non-Center Cutting
  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life

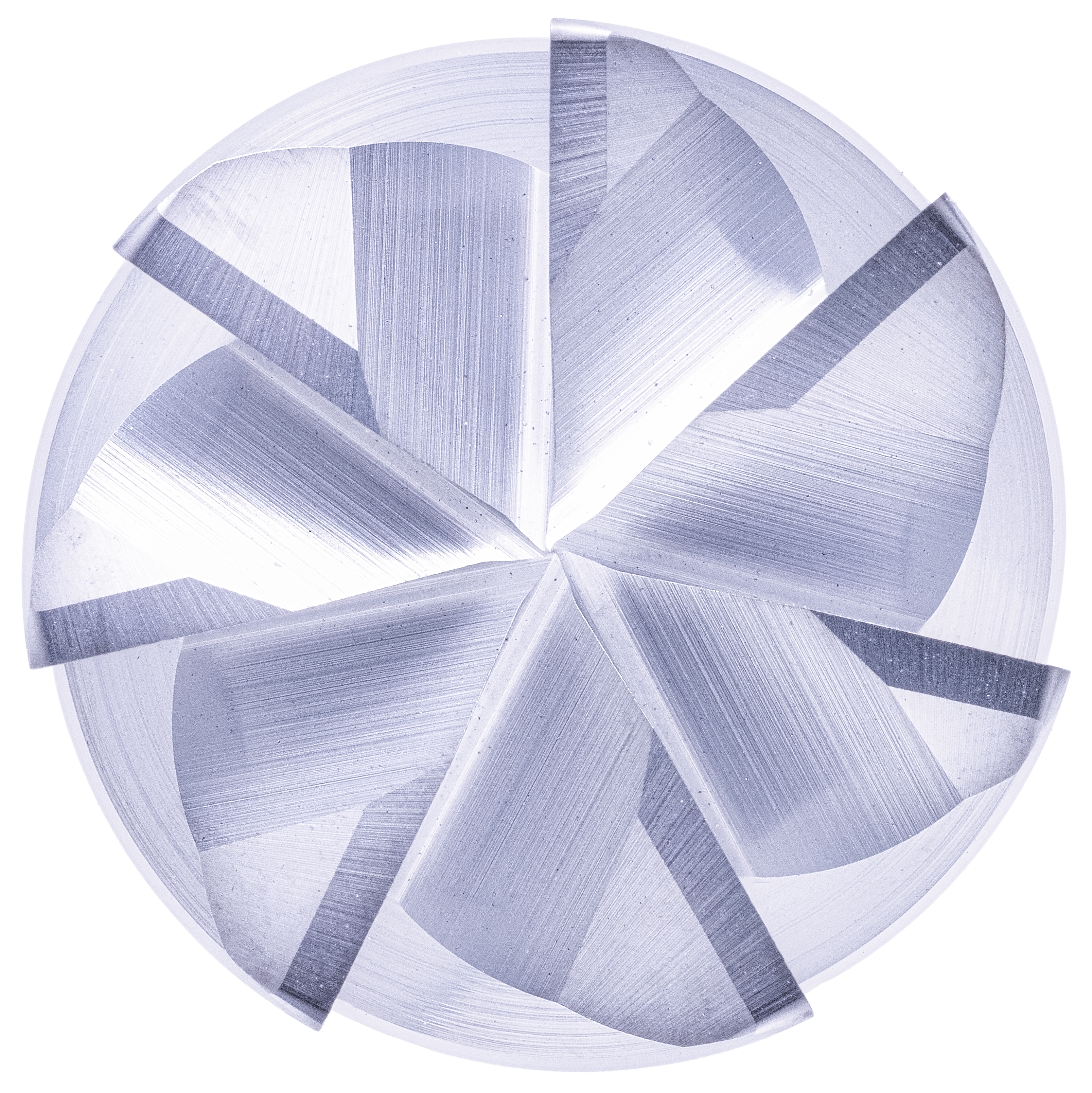

  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions
Suitability for
Roughing Finishing


EXPK1-M03-0234
EXPK1-M03-0234
EXPK1-M03-0234
EXPK1-M03-0234
EXPK1-M03-0234

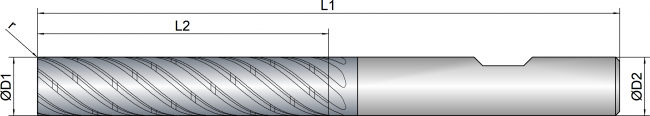

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
8 8.0 40.0 90.0 8.0 7 0.20 40 green
10 10.0 50.0 100.0 10.0 7 0.20 40 green
12 12.0 60.0 119.0 12.0 7 0.20 40 green
16 16.0 80.0 136.0 16.0 7 0.30 40 green
20 20.0 100.0 160.0 20.0 7 0.30 40 red
