EXPK1-M04-0053 | EXPK1 Mirrormaker Z7 5xD AFPX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaFerro Platin X |
| Downloads |
Catalog page & Cutting data
interactive Cutting data calculator |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|

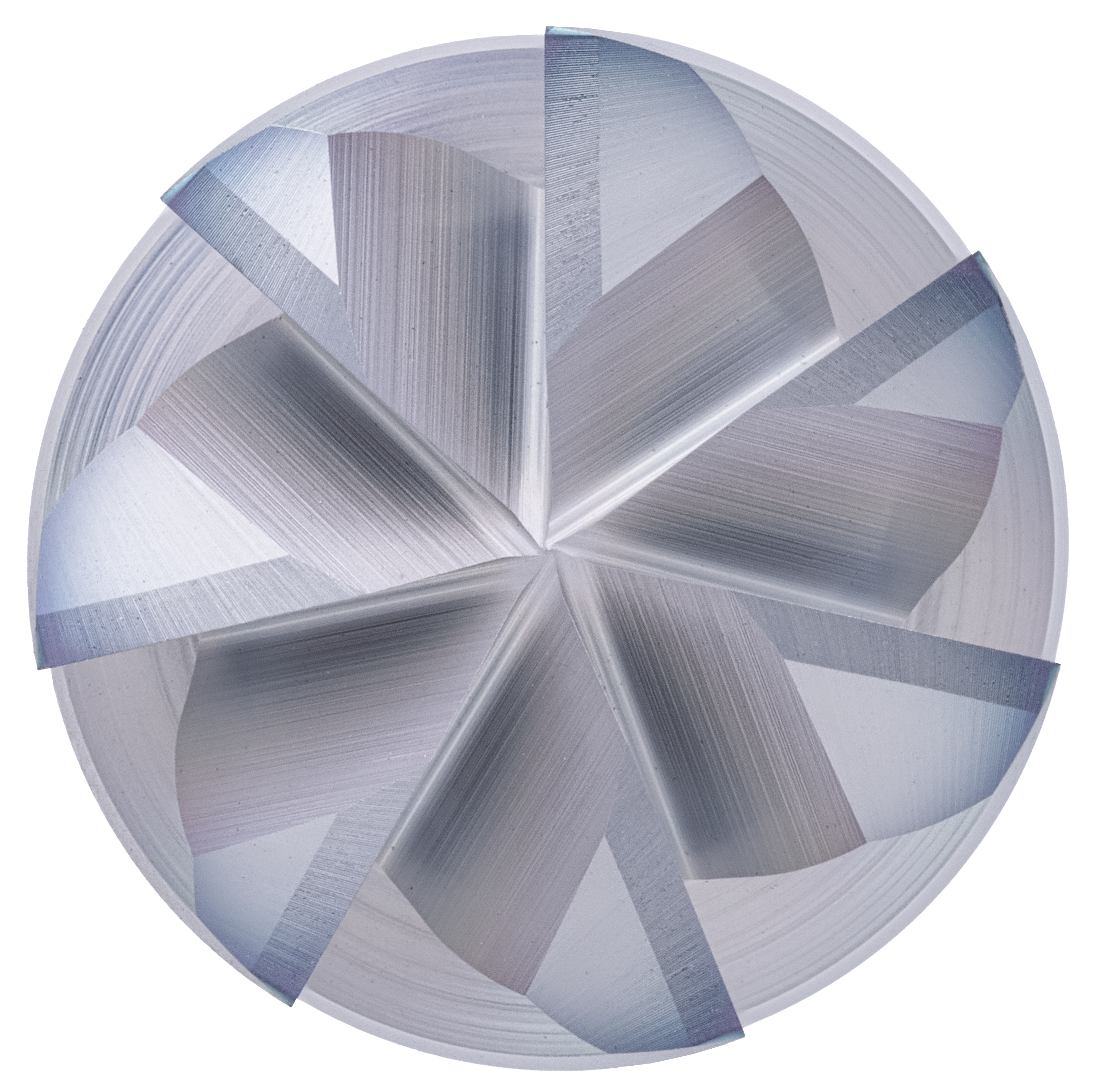

- 7 finely finished and homogenized cutting edges
- Special groove profile for the removal of long chips
- Variable helical pitch and unequal tooth pitch for maximum smoothness
- 7 cutting edges for highest feed rates
- For excellent surfaces and maximum dimensional accuracy
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

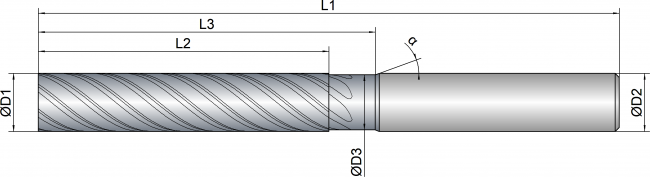

EXPK1-M04-0053
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 6.0 | 5.8 | 30.0 | 38.0 | 75.0 | 6.0 | 7 | - | 39 | 20 |
|
|
| 6/0,5 | 6.0 | 5.8 | 30.0 | 38.0 | 75.0 | 6.0 | 7 | 0.50 | 39 | 20 |
|
|
| 6/1 | 6.0 | 5.8 | 30.0 | 38.0 | 75.0 | 6.0 | 7 | 1.00 | 39 | 20 |
|
|
| 6/2 | 6.0 | 5.8 | 30.0 | 38.0 | 75.0 | 6.0 | 7 | 2.00 | 39 | 20 |
|
|
| 8 | 8.0 | 7.8 | 40.0 | 48.0 | 80.0 | 8.0 | 7 | - | 39 | 20 |
|
|
| 8/0,5 | 8.0 | 7.8 | 40.0 | 48.0 | 80.0 | 8.0 | 7 | 0.50 | 39 | 20 |
|
|
| 8/1 | 8.0 | 7.8 | 40.0 | 48.0 | 80.0 | 8.0 | 7 | 1.00 | 39 | 20 |
|
|
| 8/2 | 8.0 | 7.8 | 40.0 | 48.0 | 80.0 | 8.0 | 7 | 2.00 | 39 | 20 |
|
|
| 10 | 10.0 | 9.5 | 50.0 | 58.0 | 100.0 | 10.0 | 7 | - | 39 | 20 |
|
|
| 10/0,5 | 10.0 | 9.5 | 50.0 | 58.0 | 100.0 | 10.0 | 7 | 0.50 | 39 | 20 |
|
|
| 10/1 | 10.0 | 9.5 | 50.0 | 58.0 | 100.0 | 10.0 | 7 | 1.00 | 39 | 20 |
|
|
| 10/2 | 10.0 | 9.5 | 50.0 | 58.0 | 100.0 | 10.0 | 7 | 2.00 | 39 | 20 |
|
|
| 12 | 12.0 | 11.5 | 60.0 | 68.0 | 119.0 | 12.0 | 7 | - | 39 | 20 |
|
|
| 12/0,5 | 12.0 | 11.5 | 60.0 | 68.0 | 119.0 | 12.0 | 7 | 0.50 | 39 | 20 |
|
|
| 12/1 | 12.0 | 11.5 | 60.0 | 68.0 | 119.0 | 12.0 | 7 | 1.00 | 39 | 20 |
|
|
| 12/2 | 12.0 | 11.5 | 60.0 | 68.0 | 119.0 | 12.0 | 7 | 2.00 | 39 | 20 |
|
|
| 16 | 16.0 | 15.5 | 80.0 | 88.0 | 134.0 | 16.0 | 7 | - | 39 | 20 |
|
|
| 16/0,5 | 16.0 | 15.5 | 80.0 | 88.0 | 134.0 | 16.0 | 7 | 0.50 | 39 | 20 |
|
|
| 16/1 | 16.0 | 15.5 | 80.0 | 88.0 | 134.0 | 16.0 | 7 | 1.00 | 39 | 20 |
|
|
| 16/2 | 16.0 | 15.5 | 80.0 | 88.0 | 134.0 | 16.0 | 7 | 2.00 | 39 | 20 |
|
|
| 20 | 20.0 | 19.5 | 100.0 | 108.0 | 160.0 | 20.0 | 7 | - | 39 | 20 |
|
|
| 20/0,5 | 20.0 | 19.5 | 100.0 | 108.0 | 160.0 | 20.0 | 7 | 0.50 | 39 | 20 |
|
|
| 20/1 | 20.0 | 19.5 | 100.0 | 108.0 | 160.0 | 20.0 | 7 | 1.00 | 39 | 20 |
|
|
| 20/2 | 20.0 | 19.5 | 100.0 | 108.0 | 160.0 | 20.0 | 7 | 2.00 | 39 | 20 |
|
