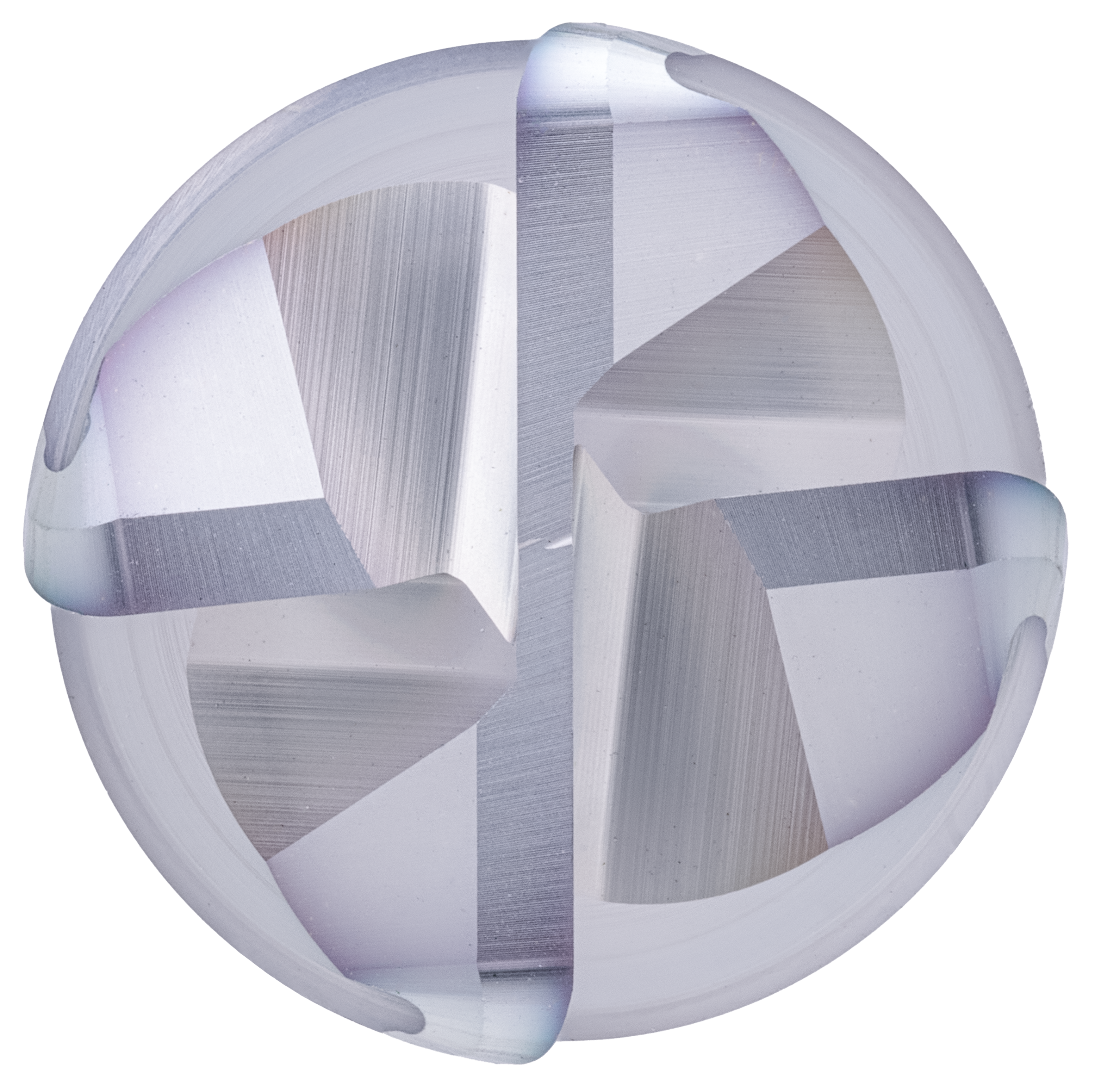

EXPK1-M06-0103 | EXPK1 Formmaker Z4 1xD AFPX
| Cooling |
|
|---|---|
| Tolerance | e8 |
| Coating | AlphaFerro Platin X |
| Downloads | Catalog page & Cutting data |
| Strategy |
|
|---|---|
| Applications |
|
| Features |
|
- Unequal tooth pitch and variable helical pitch for smooth running
- Specially designed cutting edge geometry for contour machining
- Optimized chip chambers for safe evacuation of the chips
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- Process reliable roughing and finishing even with full slot milling
- Multipass milling of 3D contours
| Suitability for | |
|---|---|
| Roughing | Finishing |
|
|
|
|

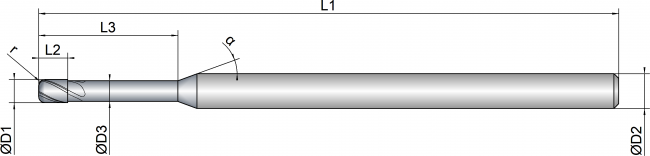

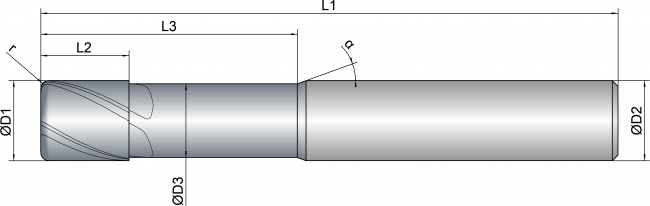

EXPK1-M06-0103
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/0,2 | 1.0 | 0.85 | 1.5 | 10.0 | 50.0 | 3.0 | 4 | 0.20 | 30 | 20 |
|
|
| 2/0,2 | 2.0 | 1.8 | 2.5 | 12.0 | 50.0 | 3.0 | 4 | 0.20 | 30 | 20 |
|
|
| 2/0,5 | 2.0 | 1.8 | 2.5 | 12.0 | 50.0 | 3.0 | 4 | 0.50 | 30 | 20 |
|
|
| 3/0,3 | 3.0 | 2.7 | 4.0 | 14.0 | 50.0 | 3.0 | 4 | 0.30 | 30 | 20 |
|
|
| 3/0,5 | 3.0 | 2.7 | 4.0 | 14.0 | 50.0 | 3.0 | 4 | 0.50 | 30 | 20 |
|
|
| 3/1 | 3.0 | 2.7 | 4.0 | 14.0 | 50.0 | 3.0 | 4 | 1.00 | 30 | 20 |
|
|
| 4/0,5 | 4.0 | 3.7 | 5.0 | 16.0 | 50.0 | 4.0 | 4 | 0.50 | 30 | 20 |
|
|
| 4/1 | 4.0 | 3.7 | 5.0 | 16.0 | 50.0 | 4.0 | 4 | 1.00 | 30 | 20 |
|
|
| 6/0,5 | 6.0 | 5.5 | 7.0 | 21.0 | 57.0 | 6.0 | 4 | 0.50 | 30 | 20 |
|
|
| 6/1 | 6.0 | 5.5 | 7.0 | 21.0 | 57.0 | 6.0 | 4 | 1.00 | 30 | 20 |
|
|
| 8/0,5 | 8.0 | 7.4 | 9.0 | 27.0 | 63.0 | 8.0 | 4 | 0.50 | 30 | 20 |
|
|
| 8/1 | 8.0 | 7.4 | 9.0 | 27.0 | 63.0 | 8.0 | 4 | 1.00 | 30 | 20 |
|
|
| 8/2 | 8.0 | 7.4 | 9.0 | 27.0 | 63.0 | 8.0 | 4 | 2.00 | 30 | 20 |
|
|
| 10/0,5 | 10.0 | 9.2 | 11.0 | 32.0 | 72.0 | 10.0 | 4 | 0.50 | 30 | 20 |
|
|
| 10/1 | 10.0 | 9.2 | 11.0 | 32.0 | 72.0 | 10.0 | 4 | 1.00 | 30 | 20 |
|
|
| 10/2 | 10.0 | 9.2 | 11.0 | 32.0 | 72.0 | 10.0 | 4 | 2.00 | 30 | 20 |
|
|
| 12/0,5 | 12.0 | 11.0 | 12.0 | 38.0 | 83.0 | 12.0 | 4 | 0.50 | 30 | 20 |
|
|
| 12/1 | 12.0 | 11.0 | 12.0 | 38.0 | 83.0 | 12.0 | 4 | 1.00 | 30 | 20 |
|
|
| 12/2 | 12.0 | 11.0 | 12.0 | 38.0 | 83.0 | 12.0 | 4 | 2.00 | 30 | 20 |
|
|
| 16/1 | 16.0 | 15.0 | 16.0 | 44.0 | 92.0 | 16.0 | 4 | 1.00 | 30 | 20 |
|
|
| 16/2 | 16.0 | 15.0 | 16.0 | 44.0 | 92.0 | 16.0 | 4 | 2.00 | 30 | 20 |
|
|
| 20/1 | 20.0 | 18.5 | 20.0 | 55.0 | 104.0 | 20.0 | 4 | 1.00 | 30 | 20 |
|
