EXPK1-M06-0113 | EXPK1 Formmaker Z4 1xD long AFPX
| Kühlung |
|
|---|---|
| Toleranz | e8 |
| Beschichtung | AlphaFerro Platin X |
| Downloads | Katalogseite & Schnittdaten |
| Strategie |
|
|---|---|
| Anwendung |
|
| Eigenschaften |
|

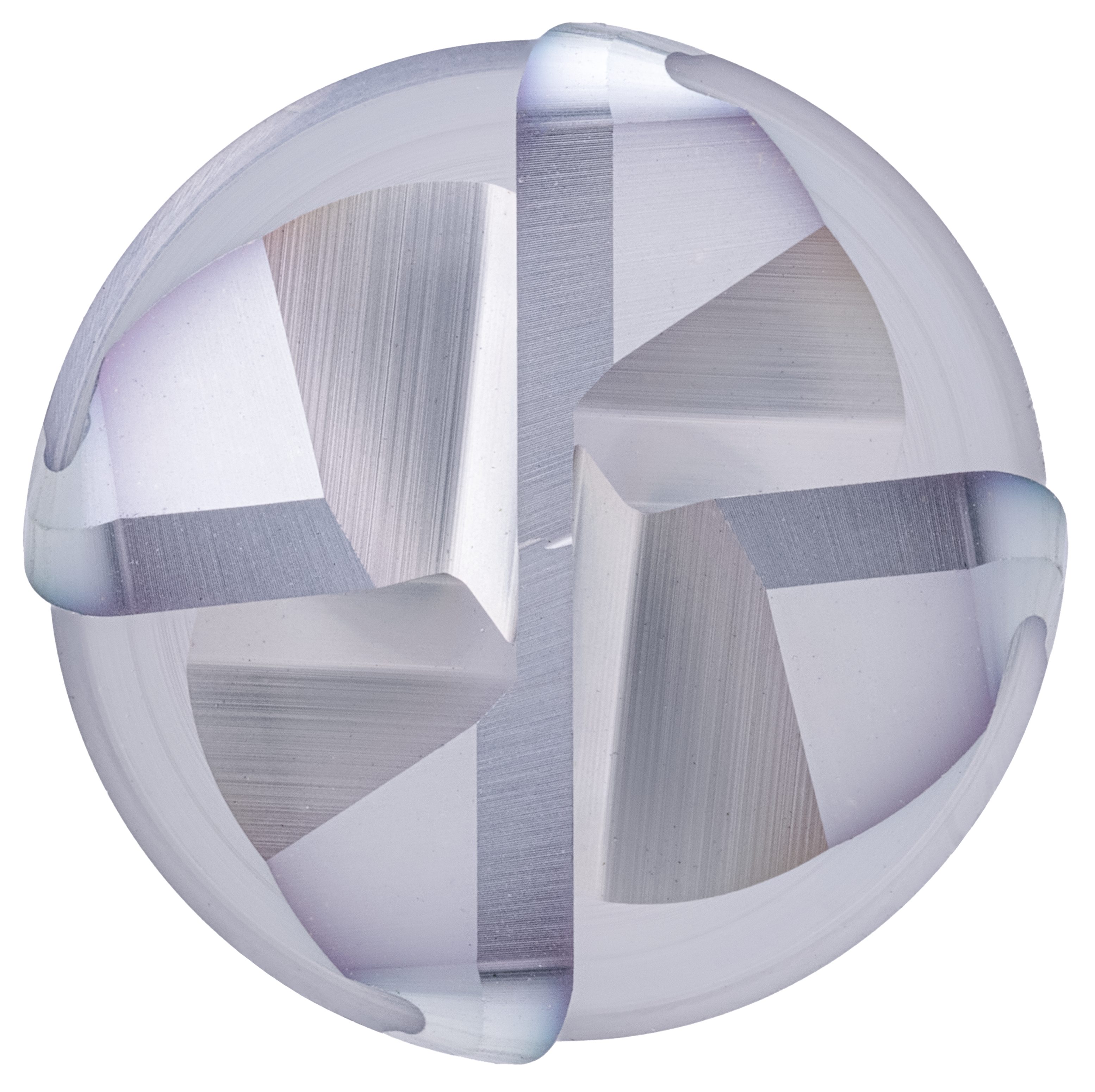

- Ungleichteilung und variable Spiralsteigung für hohe Laufruhe
- Speziell ausgelegte Schneidkantengeometrie zur Konturbearbeitung
- Optimierter Spanraum zur sicheren Evakuierung der Späne
- Radiustoleranz r ≤ 1,5 mm: ± 0,003 mm
- Radiustoleranz r > 1,5 mm: ± 0,005 mm
- Zum Schruppen und Schlichten
- Abzeilen von 3D-Konturen
- Lange Ausführung für tiefere Kavitäten
| Eignung | |
|---|---|
| Schruppen | Schlichten |
|
|
|
|

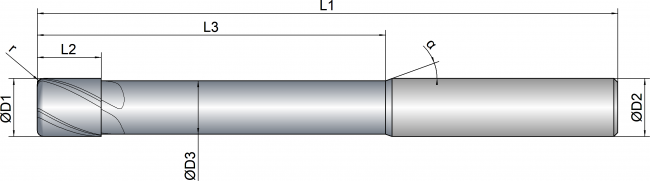

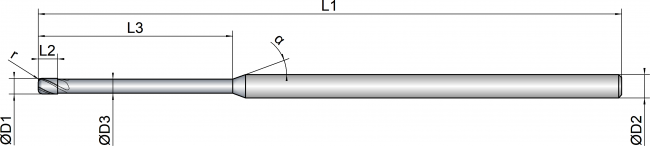

EXPK1-M06-0113
|
D1
|
D3
|
L2
|
L3
|
L1
|
D2
|
z
|
r
|
|
α
|
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/0,2 | 1,0 | 0,85 | 1,5 | 20,0 | 75,0 | 3,0 | 4 | 0,20 | 30 | 20 |
|
|
| 2/0,2 | 2,0 | 1,8 | 2,5 | 25,0 | 75,0 | 3,0 | 4 | 0,20 | 30 | 20 |
|
|
| 2/0,5 | 2,0 | 1,8 | 2,5 | 25,0 | 75,0 | 3,0 | 4 | 0,50 | 30 | 20 |
|
|
| 3/0,3 | 3,0 | 2,7 | 4,0 | 32,0 | 75,0 | 3,0 | 4 | 0,30 | 30 | 20 |
|
|
| 3/0,5 | 3,0 | 2,7 | 4,0 | 32,0 | 75,0 | 3,0 | 4 | 0,50 | 30 | 20 |
|
|
| 3/1 | 3,0 | 2,7 | 4,0 | 32,0 | 75,0 | 3,0 | 4 | 1,00 | 30 | 20 |
|
|
| 4/0,5 | 4,0 | 3,7 | 5,0 | 36,0 | 75,0 | 4,0 | 4 | 0,50 | 30 | 20 |
|
|
| 4/1 | 4,0 | 3,7 | 5,0 | 36,0 | 75,0 | 4,0 | 4 | 1,00 | 30 | 20 |
|
|
| 6/0,5 | 6,0 | 5,5 | 7,0 | 44,0 | 83,0 | 6,0 | 4 | 0,50 | 30 | 20 |
|
|
| 6/1 | 6,0 | 5,5 | 7,0 | 44,0 | 83,0 | 6,0 | 4 | 1,00 | 30 | 20 |
|
|
| 8/0,5 | 8,0 | 7,4 | 9,0 | 54,0 | 100,0 | 8,0 | 4 | 0,50 | 30 | 20 |
|
|
| 8/1 | 8,0 | 7,4 | 9,0 | 54,0 | 100,0 | 8,0 | 4 | 1,00 | 30 | 20 |
|
|
| 8/2 | 8,0 | 7,4 | 9,0 | 54,0 | 100,0 | 8,0 | 4 | 2,00 | 30 | 20 |
|
|
| 10/0,5 | 10,0 | 9,2 | 11,0 | 60,0 | 100,0 | 10,0 | 4 | 0,50 | 30 | 20 |
|
|
| 10/1 | 10,0 | 9,2 | 11,0 | 60,0 | 100,0 | 10,0 | 4 | 1,00 | 30 | 20 |
|
|
| 10/2 | 10,0 | 9,2 | 11,0 | 60,0 | 100,0 | 10,0 | 4 | 2,00 | 30 | 20 |
|
|
| 12/0,5 | 12,0 | 11,0 | 12,0 | 75,0 | 119,0 | 12,0 | 4 | 0,50 | 30 | 20 |
|
|
| 12/1 | 12,0 | 11,0 | 12,0 | 75,0 | 119,0 | 12,0 | 4 | 1,00 | 30 | 20 |
|
|
| 12/2 | 12,0 | 11,0 | 12,0 | 75,0 | 119,0 | 12,0 | 4 | 2,00 | 30 | 20 |
|
|
| 16/1 | 16,0 | 15,0 | 16,0 | 92,0 | 150,0 | 16,0 | 4 | 1,00 | 30 | 20 |
|
|
| 16/2 | 16,0 | 15,0 | 16,0 | 92,0 | 150,0 | 16,0 | 4 | 2,00 | 30 | 20 |
|
|
| 20/1 | 20,0 | 18,5 | 20,0 | 92,0 | 150,0 | 20,0 | 4 | 1,00 | 30 | 20 |
|
