EXPK1-M06-0224 | EXPK1 Formmaker Z5 2xD AFPX

Cooling air-cooled dry water min water max
Tolerance e8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy Extended Trochoidal Cutting High Speed Cutting High Performance Cutting
Applications Multipass milling Trimming X, Y helical
Features Weldon HB Unequal tooth pitch 2xD Dynamic helical pitch Center Cutting Corner radius
  • Five cutting edges for an optimized metal removal rate and extended tool life
  • Defined geometry of the cutting edges for stabilization with high cutting depths
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • For multipass milling of 3D contours
Suitability for
Roughing Finishing


EXPK1-M06-0224
EXPK1-M06-0224
EXPK1-M06-0224
EXPK1-M06-0224
EXPK1-M06-0224

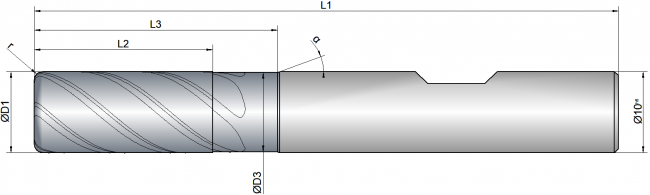

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
α
winkel_alpha
6/0,5 6.0 5.8 13.0 19.0 57.0 6.0 5 0.50 40 20 orange
