Expert

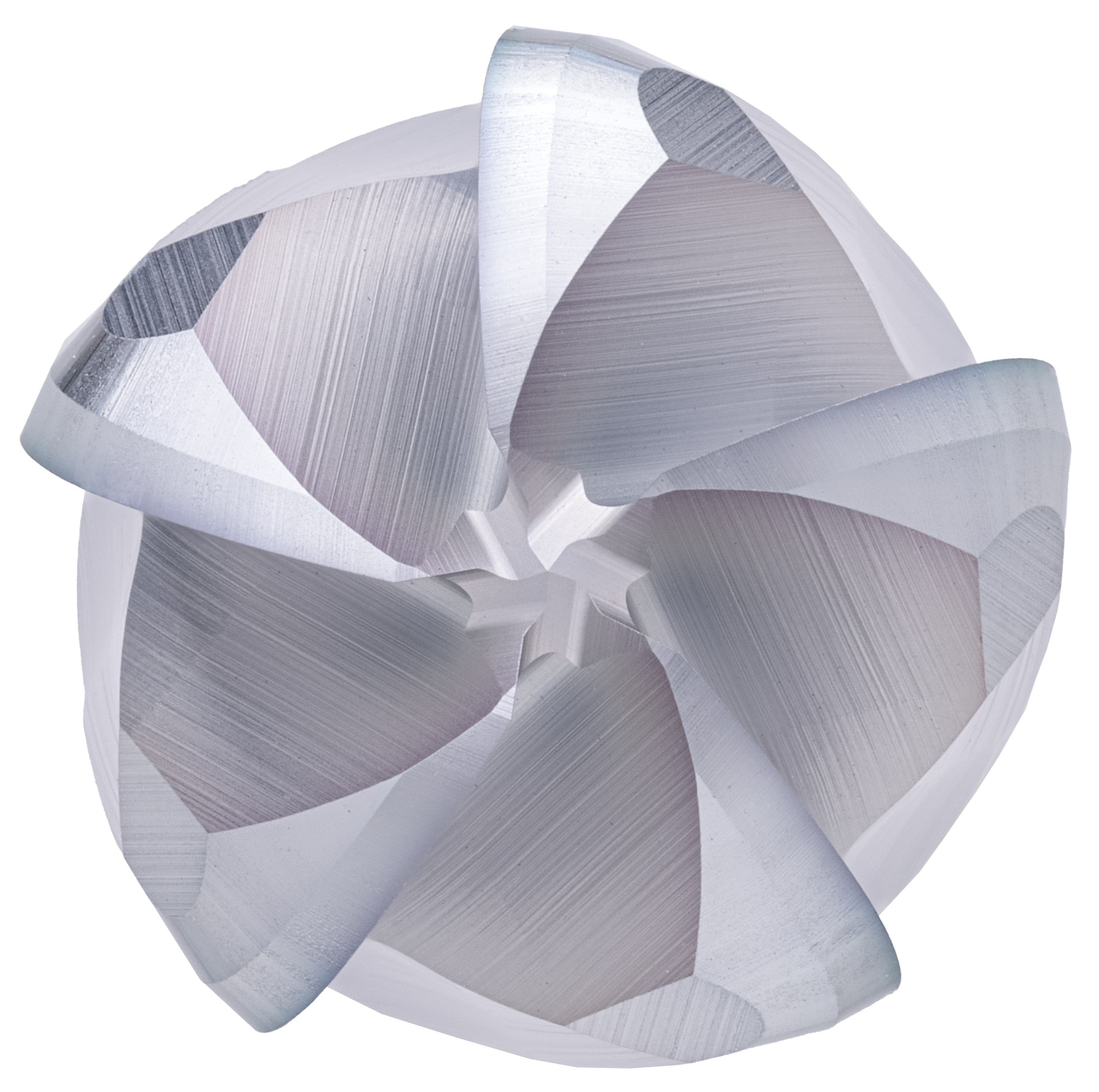

EXPK1-M07-0043 | EXPK1 Blademaker Z2-5 0,5xD long AFPX

Cooling air-cooled dry water min water max
Tolerance h9
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Multipass milling X, Y helical
Features No Weldon Unequal tooth pitch Non-Center Cutting 0,5xD Corner radius
  • Vertical absorption of the cutting force through special division of the cutting edges
  • Geometry with tangential transitions for HSC milling
  • Soft cut through targeted positive rake angles
  • Check programming radius and ap max. according to the variant table
  • Long version for deeper cavities
  • For roughing and finishing under HSC conditions
Suitability for
Roughing Finishing


EXPK1-M07-0043
EXPK1-M07-0043
EXPK1-M07-0043
EXPK1-M07-0043
EXPK1-M07-0043

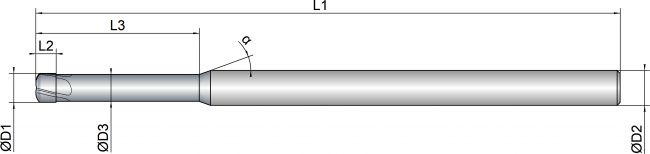

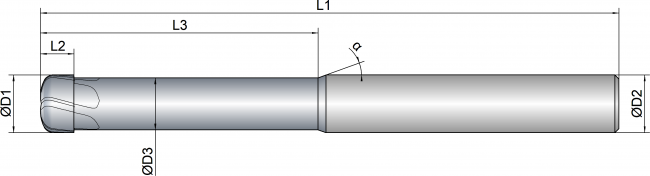

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
programmier_radius
schnitttiefe_max
spiralwinkel
α
winkel_alpha
2 2.0 1.7 1.5 18.0 75.0 6.0 2 0.3 0.15 15 20 orange

3 3.0 2.7 1.5 20.0 75.0 6.0 2 0.3 0.20 15 20 green

4 4.0 3.6 2.5 24.0 83.0 6.0 2 0.5 0.25 15 20 orange

5 5.0 4.6 3.5 28.0 100.0 6.0 4 0.5 0.35 15 20 green

6 6.0 5.2 3.5 28.0 100.0 6.0 4 1.0 0.40 15 20 green

8 8.0 7.0 4.8 40.0 100.0 8.0 5 1.5 0.50 15 20 orange

10 10.0 9.0 5.8 48.0 100.0 10.0 5 2.0 0.75 15 20 green

12 12.0 11.0 6.8 56.0 119.0 12.0 5 2.0 0.80 15 20 green

16 16.0 14.5 8.8 65.0 150.0 16.0 5 2.5 1.00 15 20 green
