Expert

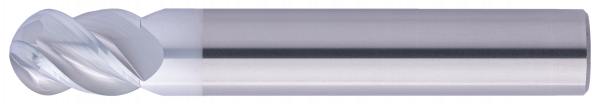

EXPK1-M08-0203 | EXPK1 Rowmaker Z4 1,5xD short AFPX

Cooling air-cooled dry water min water max
Tolerance f8
Coating AlphaFerro Platin X
Downloads Catalog page & Cutting data
Strategy High Speed Cutting
Applications Engraving Multipass milling X, Y, Z
Features No Weldon Center Cutting

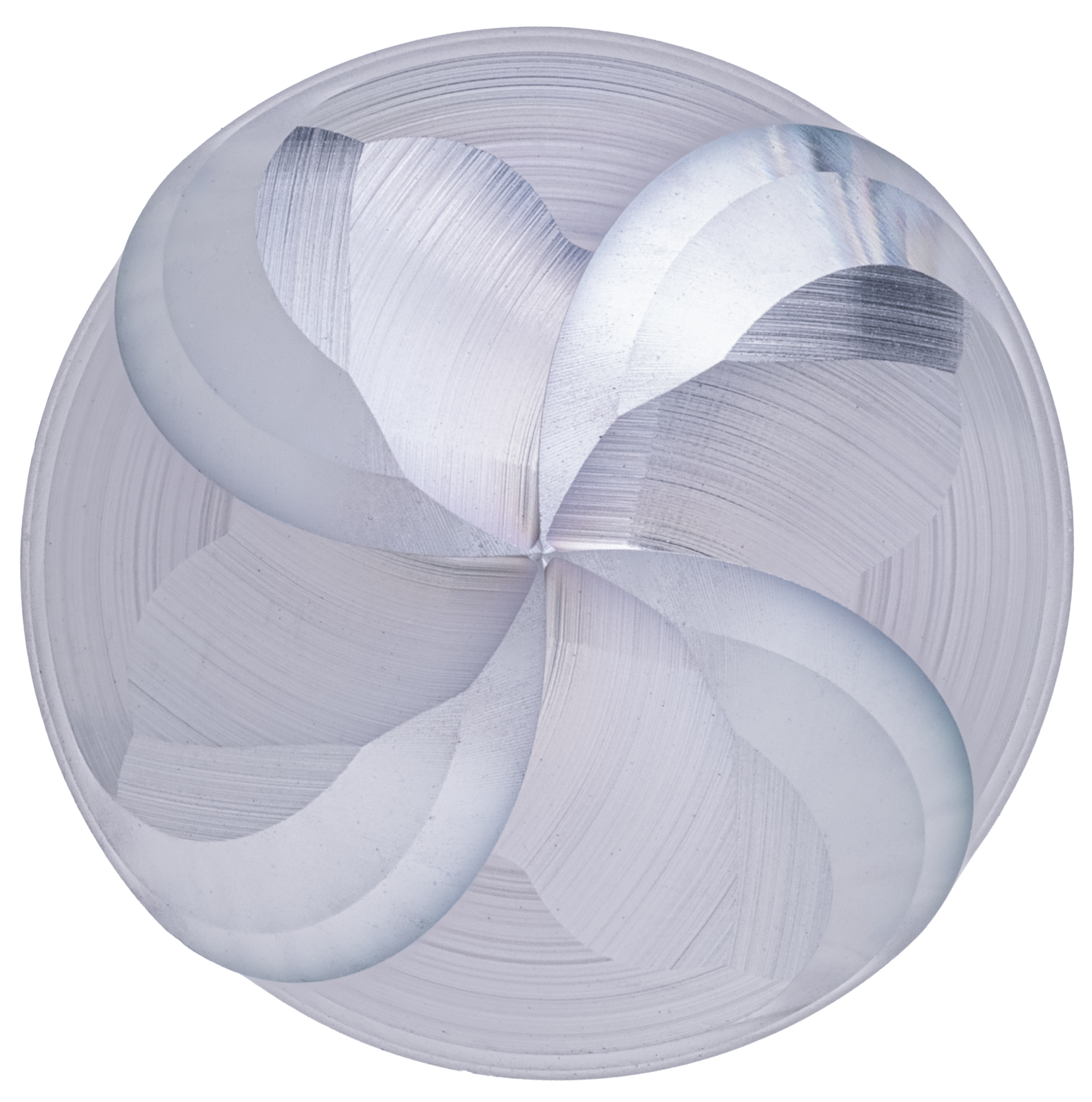

  • Highest surface quality through 4 cutting edges to the center
  • Defined tool flank for support and vibration reduction
  • Special face geometry for optimal chip evacuation
  • 4 cutting edges for the highest feed speeds
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing
Suitability for
Roughing Finishing


EXPK1-M08-0203
EXPK1-M08-0203
EXPK1-M08-0203
EXPK1-M08-0203
EXPK1-M08-0203

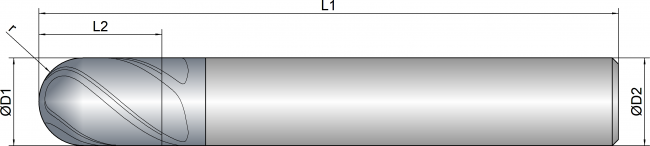

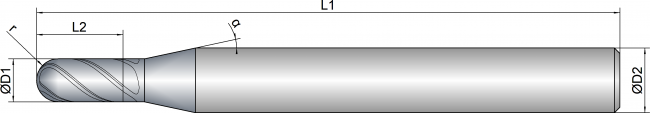

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
r
radius
spiralwinkel
β
winkel_beta
3 3.0 5.0 54.0 6.0 4 1.50 40 12 red
4 4.0 8.0 54.0 6.0 4 2.00 40 12 red
5 5.0 9.0 54.0 6.0 4 2.50 40 12 red
6 6.0 10.0 54.0 6.0 4 3.00 40 - red
8 8.0 12.0 58.0 8.0 4 4.00 40 - red
10 10.0 14.0 66.0 10.0 4 5.00 40 - red
12 12.0 16.0 73.0 12.0 4 6.00 40 - red
16 16.0 22.0 82.0 16.0 4 8.00 40 - red
