K201022 | SC end mill cutter TAC

Expert
No Weldon Trimming Full slot
Cooling air-colled dry water min water max
Tolerance h10
Coating TAC -
K201022
K201022
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm

Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)

Castings

Non-ferrous materials
Al Copper Mg Plastics
430     480
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K201022

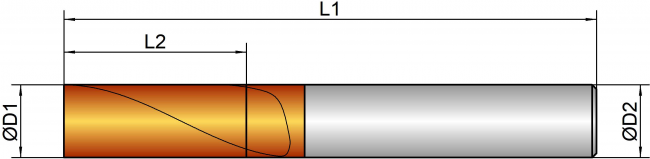

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
1 1.0 4.0 50.0 3.0 1 30 green
1,5 1.5 6.0 50.0 3.0 1 30 green
2 2.0 8.0 50.0 3.0 1 30 green
3 3.0 12.0 50.0 3.0 1 30 green
4 4.0 15.0 54.0 4.0 1 30 orange
5 5.0 17.0 54.0 5.0 1 30 orange
6 6.0 20.0 65.0 6.0 1 30 orange
8 8.0 22.0 63.0 8.0 1 30 orange
10 10.0 25.0 72.0 10.0 1 30 orange
12 12.0 30.0 83.0 12.0 1 30 orange
