K201031 | SC end mill cutter short

Premium
No Weldon Universal machining Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating
K201031
K201031
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
60 40 30
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
45
Castings
60
Non-ferrous materials
Al Copper Mg Plastics
140
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

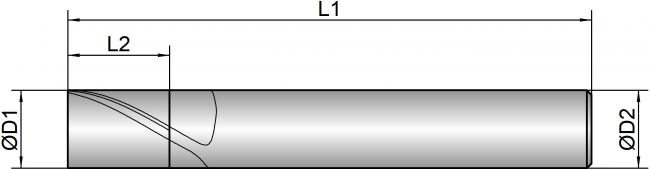

K201031
D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
0,25/3 0.25 0.5 38.0 3.0 2 30 green
0,3/3 0.3 1.0 38.0 3.0 2 30 green
0,35/3 0.35 1.0 38.0 3.0 2 30 green
0,4/3 0.4 1.0 38.0 3.0 2 30 green
0,5/3 0.5 1.5 38.0 3.0 2 30 orange
0,6/3 0.6 1.5 38.0 3.0 2 30 green
0,7/3 0.7 2.0 38.0 3.0 2 30 green
0,8/3 0.8 2.0 38.0 3.0 2 30 green
0,9/3 0.9 2.5 38.0 3.0 2 30 green
1/3 1.0 3.0 50.0 3.0 2 30 green
1,1/3 1.1 3.0 50.0 3.0 2 30 green
1,2/3 1.2 4.0 50.0 3.0 2 30 green
1,4/3 1.4 4.0 50.0 3.0 2 30 green
1,5/3 1.5 4.0 50.0 3.0 2 30 green
1,5/6 1.5 3.0 54.0 6.0 2 30 green
1,6/3 1.6 4.0 50.0 3.0 2 30 green
1,8/3 1.8 5.0 50.0 3.0 2 30 green
2/3 2.0 5.0 50.0 3.0 2 30 green
2/6 2.0 4.0 54.0 6.0 2 30 green
2,5/3 2.5 6.0 50.0 3.0 2 30 green
3/6 3.0 6.0 54.0 6.0 2 30 green
4/6 4.0 7.0 54.0 6.0 2 30 green
5/6 5.0 8.0 54.0 6.0 2 30 green
6/6 6.0 10.0 54.0 6.0 2 30 green
8/8 8.0 12.0 59.0 8.0 2 30 green
10/10 10.0 13.0 67.0 10.0 2 30 green
12/12 12.0 16.0 74.0 12.0 2 30 green
14/14 14.0 16.0 75.0 14.0 2 30 green
16/16 16.0 20.0 83.0 16.0 2 30 green
18/18 18.0 20.0 85.0 18.0 2 30 green
20/20 20.0 25.0 93.0 20.0 2 30 green
