K201133 | SC end mill cutter short TAC HSC / MTC / HPC

Premium
No Weldon High Speed Cutting High Performance Cutting Multi-Task Cutting Trimming Full slot
Cooling air-colled dry water min water max
Tolerance e8
Coating TAC -
K201133
K201133
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm

Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)

Castings

Non-ferrous materials
Al Copper Mg Plastics
520
Inconel

Abrasive material
CFRP / GFRP Graphite
140 290
Titanium

K201133

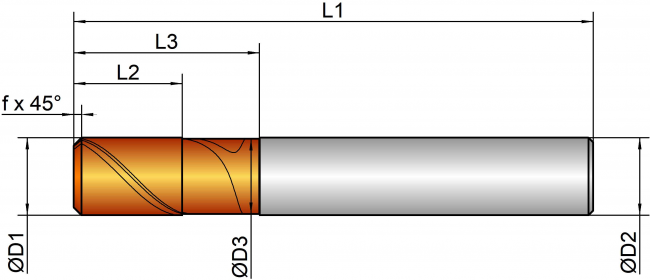

D1
schneiden_durchmesser
D3
freistich_durchmesser
L2
schneiden_laenge
L3
freistich_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
eckfase_laenge
spiralwinkel
2 2.0 1.9 5.0 10.0 54.0 6.0 2 0.05 45 green
3 3.0 2.9 5.0 12.0 54.0 6.0 2 0.10 45 green
4 4.0 3.9 8.0 15.0 54.0 6.0 2 0.10 45 green
5 5.0 4.9 9.0 16.0 54.0 6.0 2 0.10 45 green
6 6.0 5.9 10.0 17.0 54.0 6.0 2 0.10 45 green
8 8.0 7.7 12.0 20.0 59.0 8.0 2 0.10 45 green
10 10.0 9.7 14.0 24.0 67.0 10.0 2 0.10 45 green
11 11.0 10.7 15.0 25.0 74.0 12.0 2 0.10 45 green
12 12.0 11.7 16.0 26.0 74.0 12.0 2 0.10 45 green
14 14.0 13.7 18.0 28.0 75.0 14.0 2 0.10 45 green
16 16.0 15.5 22.0 32.0 83.0 16.0 2 0.10 45 green
20 20.0 19.5 26.0 40.0 83.0 20.0 2 0.10 45 green
