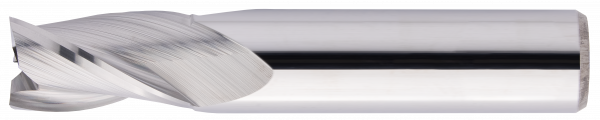

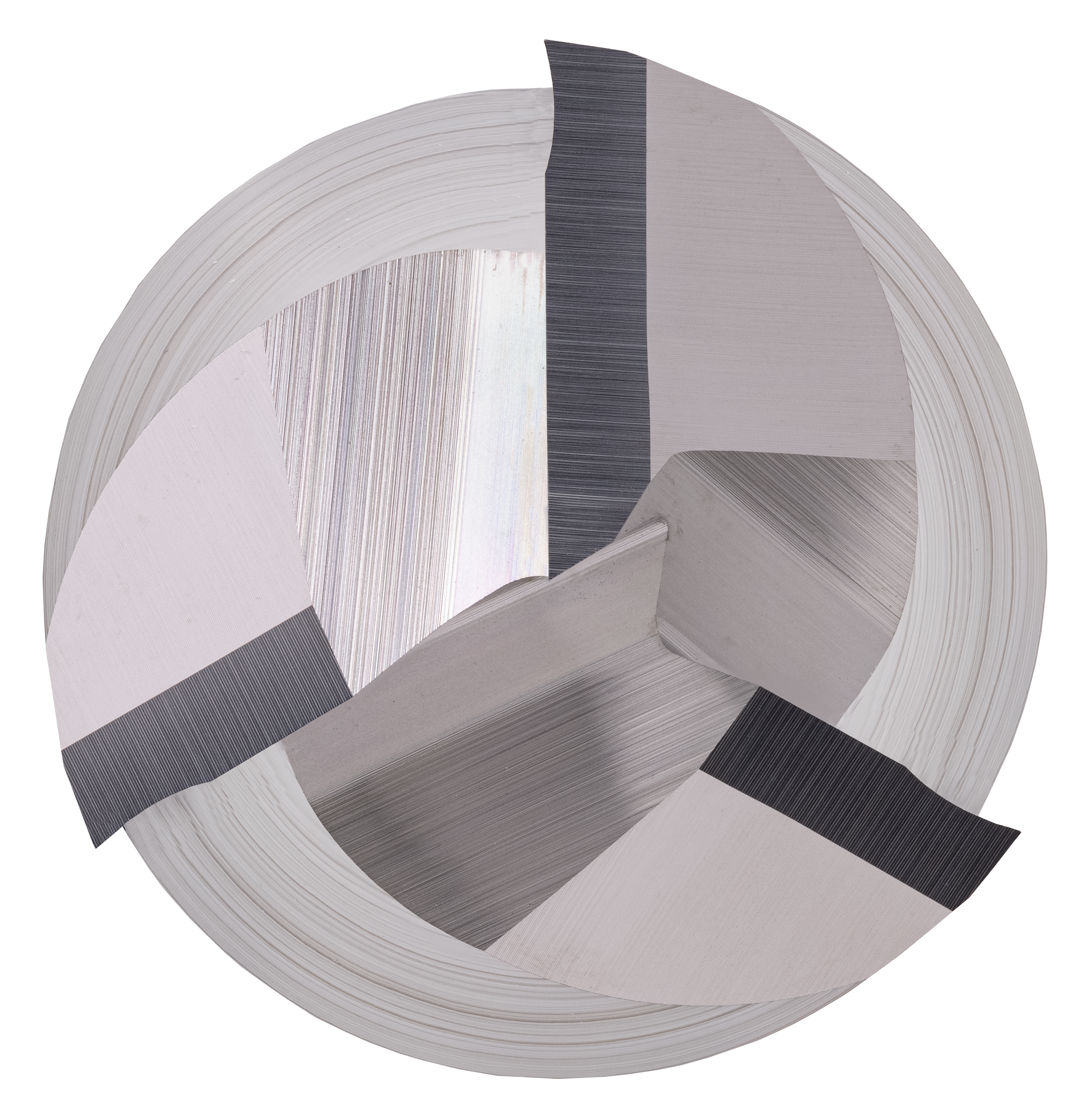

K201251 | SC mini end mill cutter 30°

Basic
No Weldon Universal machining Trimming Full slot
Cooling air-cooled dry water min water max
Tolerance e8
Coating
K201251
K201251
Steel
< 850 N/mm < 1100 N/mm < 1400 N/mm
80 55 40
Hardened steel
< 55 HRC < 60 HRC < 67 HRC < 70 HRC

Stainless steel (VA)
60
Castings
70
Non-ferrous materials
Al Copper Mg Plastics
210
Inconel

Abrasive material
CFRP / GFRP Graphite

Titanium

K201251

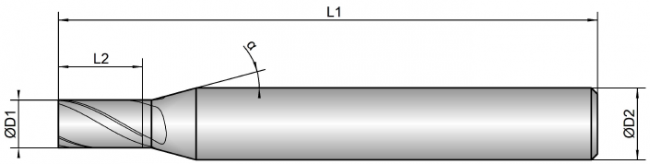

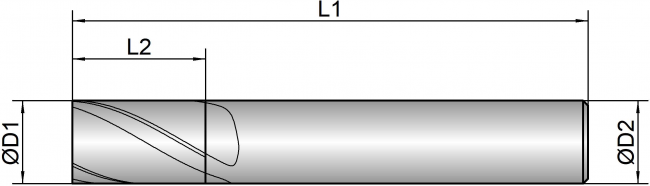

D1
schneiden_durchmesser
L2
schneiden_laenge
L1
gesamt_laenge
D2
schaft_durchmesser
z
schneiden_anzahl
spiralwinkel
1 1.0 2.0 45.0 6.0 3 30 green
1,2 1.2 2.0 45.0 6.0 3 30 green
1,5 1.5 3.0 45.0 6.0 3 30 green
1,8 1.8 3.0 45.0 6.0 3 30 green
2 2.0 4.0 45.0 6.0 3 30 green
2,5 2.5 4.0 45.0 6.0 3 30 green
2,8 2.8 6.0 45.0 6.0 3 30 green
3 3.0 6.0 45.0 6.0 3 30 green
3,5 3.5 6.0 45.0 6.0 3 30 green
3,8 3.8 7.0 45.0 6.0 3 30 green
4 4.0 7.0 45.0 6.0 3 30 green
4,5 4.5 7.0 45.0 6.0 3 30 green
4,75 4.75 8.0 45.0 6.0 3 30 green
5 5.0 8.0 45.0 6.0 3 30 green
5,5 5.5 8.0 45.0 6.0 3 30 green
5,75 5.75 10.0 45.0 6.0 3 30 green
6 6.0 10.0 45.0 6.0 3 30 green
6,75 6.75 10.0 55.0 8.0 3 30 green
7 7.0 12.0 55.0 8.0 3 30 green
7,75 7.75 12.0 55.0 8.0 3 30 green
8 8.0 13.0 55.0 8.0 3 30 green
8,7 8.7 14.0 55.0 10.0 3 30 green
9 9.0 14.0 55.0 10.0 3 30 green
9,7 9.7 16.0 55.0 10.0 3 30 green
10 10.0 16.0 55.0 10.0 3 30 green
